Generator (Gen) (2008-10): Design: Stator

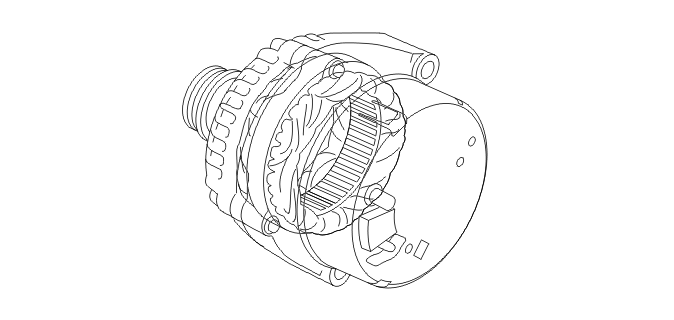

The stator is fixed and consists of grooved plates which are insulated internally and pressed together onto a fixed plate unit. The stator winding coils are positioned in the grooves. They are delta connected at 120° and provide a three phase alternating current to the rectifier bridge.
