Remote Control Navigation System

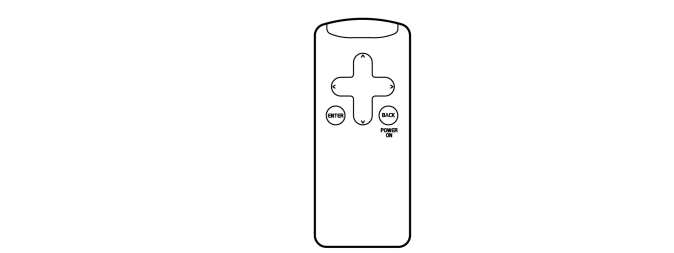

Fig 1: Identifying Remote Control Navigation System
GLL167143Courtesy of VOLVO CARS CORPORATION

There are two remote controls for the infotainment system. The navigation system remote control can be used to control the navigation system remotely.

The IR receiver is located on the front of the infotainment control module (ICM).
