Integrated Audio Module (IAM) (2008-10): Design: Antennas
Integrated Audio Module (IAM) is connected to an antenna system for AM and FM. The antenna system consists of an AM-antenna and three FM-antennas (FM1, FM2, and FM3).

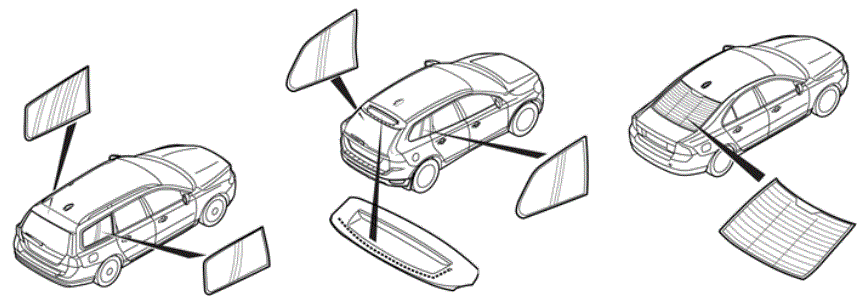

For V70, the FM1-, FM2-, and AM-antennas are located in the left rear window, the FM3-antenna is located in the right rear window.
The antennas are connected to an antenna booster. Antenna signals are sent from the antenna booster to Integrated Audio Module (IAM) via a coaxial cable.
The antenna booster is supplied with voltage from Integrated Audio Module (IAM).
