System Overview: Signals

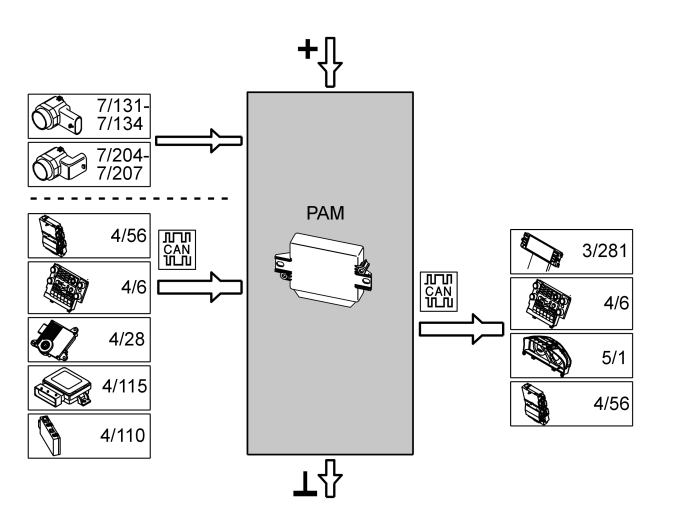

The table below summarizes the input signals to and output signals from the parking assistance module (PAM). The signal types are divided into directly connected signals and CAN communication. The graphic below displays the same information with the Volvo component designations.
| Input Signals |
Output Signals |
| Directly connected: |
Directly connected: |
- Rear parking sensors (7/131, 7/132, 7/133 and 7/134)
- Parking sensors front (7/204, 7/205, 7/206, and 7/207)
|
- |
| Via CAN communication: |
Via CAN communication: |
- Central electronic module (CEM) (4/56)
- Climate control module (CCM) (4/6)
- Transmission Control Module (TCM) (4/28)
- Park brake module (PBM) (4/115)
- Trailer module (TRM) (4/110) (accessory)
|
- Infotainment control module (ICM) (3/281)
- Climate control module (CCM) (4/6)
- Driver information module (DIM) (5/1).
- Central electronic module (CEM) (4/56)
|
