Phone Module (PHM) (2008-2009): Design: Antenna

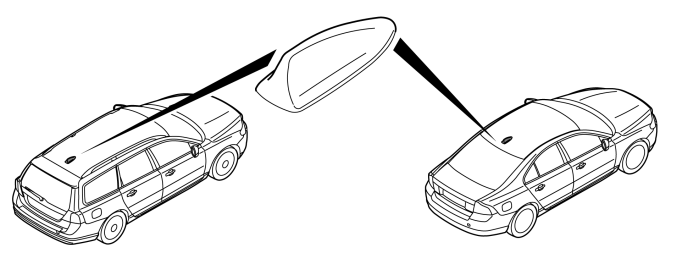

Fig 1: Identifying Phone Module (PHM)
GLL161120Courtesy of VOLVO CARS CORPORATION

The carphone has a separate antenna. This antenna contains a GPS antenna and a carphone antenna. The carphone antenna is directly connected to the phone module (PHM). The antenna is on the roof.

There are diagnostics for the carphone antenna.
