Internal Antennas In The Passenger Compartment: Terminal

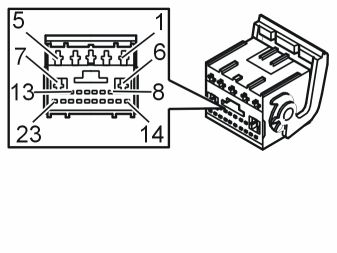

Fig 1: Identifying Internal Antenna Terminal

Courtesy of VOLVO CARS CORPORATION

Connector terminal	Control module terminal	Signal type	Miscellaneous
#C2	#C1-2	Antenna signal (-), inner antenna in cargo compartment	Signal only upon antenna activation.
#C4	#C1-4	Antenna signal (+), inner front antenna	Signal only upon antenna activation.
#C16	#C1-16	Antenna signal (-), inner front antenna	Signal only upon antenna activation.
#C18	#C1-18	Antenna signal (+), inner antenna in cargo compartment	Signal only upon antenna activation.

Fig 1: Identifying Internal Antenna Terminal

Courtesy of VOLVO CARS CORPORATION

Connector terminal	Control module terminal	Signal type	Miscellaneous
#B37	#C2-14	Antenna signal (+), inner center antenna	Signal only upon antenna activation.
#B40	#C2-17	Antenna signal (-), inner center antenna	Signal only upon antenna activation.
