System Overview: Signals

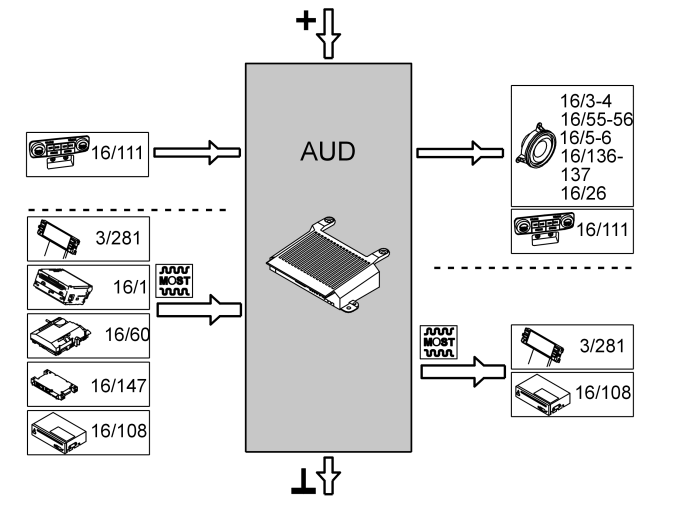

The table below summarizes the input signals to and output signals from the audio module (AUD). The signal types are divided into directly connected signals and MOST communication. The illustration below displays the same information with the Volvo component designations.
| Input signals |
Output signals |
| Directly connected: |
Directly connected: |
- Power supply
- Ground
- Headphone panel (control signal) (16/111)
|
- Loudspeaker left front (16/4, 16/55)
- Loudspeaker right front (16/3, 16/56)
- Loudspeaker left rear (16/6, 16/136)
- Loudspeaker right rear (16/5, 16/137)
- Center loudspeaker (16/26) (option).
- Headphone panel (16/111)
|
| Via MOST communication:
(ring network) |
Via MOST communication:
(ring network) |
- Infotainment control module (ICM) (3/281), main control module
- Integrated audio module (IAM) (16/1)
- Phone module (PHM) (16/60).
- Bluetooth phone module (BPM) (16/147)
- Multimedia module (MMM) (16/108)
|
- Infotainment control module (ICM) (3/281), main control module
- Multimedia module (MMM) (16/108)
|
Courtesy of VOLVO CARS CORPORATION
