Battery Monitoring Module

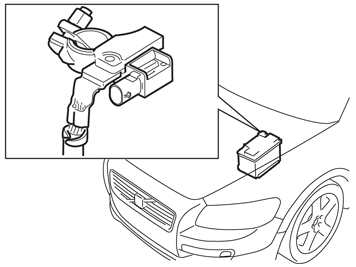

Fig 1: Identifying Battery Monitoring Sensor
GLL171154Courtesy of VOLVO CARS CORPORATION
NOTE:

The battery monitoring module is only available in vehicles with the brake energy regeneration function.

The battery monitoring module is fitted on the battery's negative terminal and its main function is to monitor battery status.
