System Overview: Signals

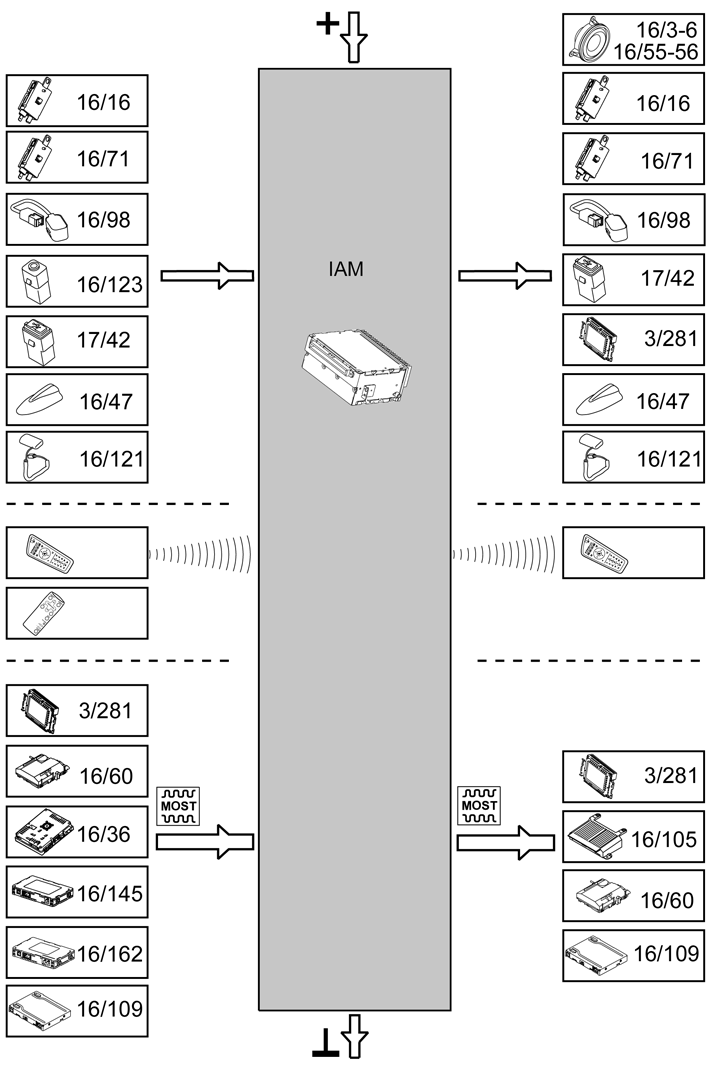

The table below summarizes the input signals to and output signals from the Integrated Audio Module (IAM). The signal types are divided into directly connected signals, bluetooth, and MOST-communication. The illustration below displays the same information with the Volvo component designations.
| Input signals |
Output signals |
| Directly connected: |
Directly connected: |
- Power supply
- Ground
- Antenna booster (AM/FM1) (Antenna signal) (16/16)
- Antenna booster (FM2) (Antenna signal) (16/71)
- Microphone (signal) (16/98)
- AUX input (16/123)
- USB/iPod input (17/42)
- GPS-antenna (16/47) (only vehicles with option navigation)
- VICS-antenna (16/121) (traffic information/navigation only Japanese market)
|
- Speakers (16/3-6, 16/55-56), 6 pieces. (Performance)
- Microphone (phantom feed) (16/98)
- Antenna booster (AM/FM1) (voltage feed) (16/16)
- Antenna booster (FM2) (voltage feed) (16/71)
- USB/iPod input (17/42)
- Infotainment control module (ICM) (3/281) composite video signal (CVBS)
- GPS-antenna (16/47) (phantom-feed) (only vehicles with option navigation)
- VICS-antenna (16/121) (traffic information/navigation only Japanese market) (phantom-feed)
|
| Via Bluetooth: |
Via Bluetooth: |
- Telephone handsfree (High performance, High performance multimedia, and Premium sound multimedia).
- Infotainment remote control (option)
|
- Telephone handsfree (High performance, High performance multimedia, and Premium sound multimedia).
|
| Via MOST communication: |
Via MOST communication: |
- Infotainment control module (ICM) (3/281)
- Phone module (PHM) (16/60).
- Television Module (TVM) (16/36)
- Remote Digital Audio Receiver (RDAR) (16/145) (market-dependent) (option)
- Digital Audio Broadcast Module (DABM) (16/162) (market-dependent) (option)
- Rear seat entertainment module (RSE) (16/109) (option) (model-dependent)
|
- Infotainment control module (ICM) (3/281)
- Audio module (AUD) (16/105) (High performance, High performance multimedia, and Premium sound multimedia).
- Phone module (PHM) (16/60).
- Rear seat entertainment module (RSE) (16/109) (option) (model-dependent)
|
Courtesy of VOLVO CARS CORPORATION
