System Overview: Components

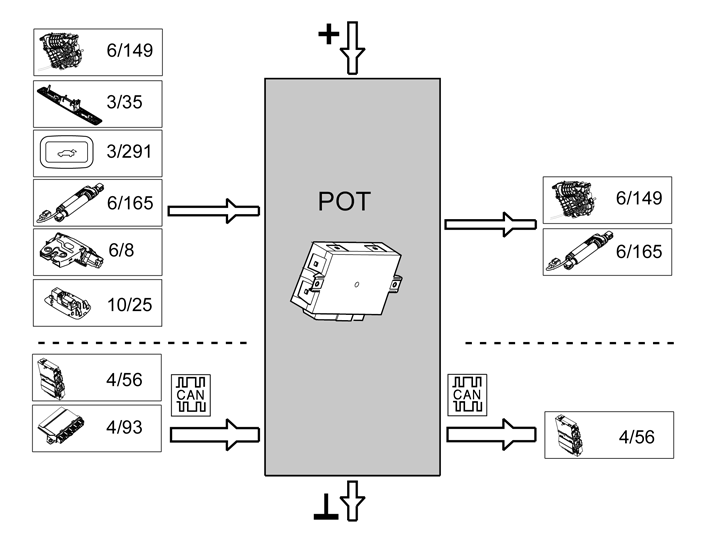

The table below summarizes components connected to the Power Operated Tailgate Module (POT). The illustration below displays the same information with the Volvo component designations.
| Input signals |
Output signals |
| Directly connected: |
Directly connected: |
- Switch handle (3/35)
- Switch closing boot lid (3/291)
- Lock motor central locking system tailgate (6/8)
- Motor boot lid opening/closing (6/165), reconnection from hall sensors
- Interior light cargo area (10/25)
- Motor closing, boot lid (6/149)
|
- Motor closing, boot lid (6/149)
- Motor boot lid opening/closing (6/165) includes voltage supply hall sensors
|
| Via Controller Area Network (CAN) communication: |
Via Controller Area Network (CAN) communication: |
- Central electronic module (CEM) (4/56)
- Keyless vehicle module (KVM) (4/93)
|
- Central electronic module (CEM) (4/56)
|
Courtesy of VOLVO CARS CORPORATION
