Rear Seat Entertainment System, M&D: Design: Headphones

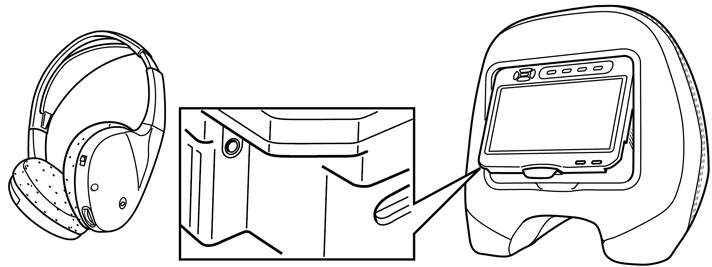

Fig 1: Locating Corded Headset Socket
GLL170982Courtesy of VOLVO CARS CORPORATION

The wireless headsets can be used by passengers in the rear seat. Standard audio is transferred via infrared signals to the headsets in two-channel stereo format. The headsets are powered by a battery which is located in the left headset under a cover. The headsets are activated by a button on one side of the headsets. The volume for each headset is adjusted via a volume control. Selection of audio source, DRIVER or PASSENGER, is made via control button: CH A and CH B.

Corded headsets can also be connected to the system, one to each screen. The socket is located at the lower edge of the screen on the left corner.
