Switch For Valet Locking (Option, Market Dependent)

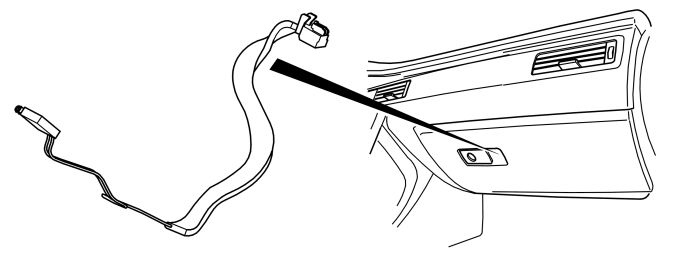

Fig 1: Identifying Switch For Valet Locking
GLL153114Courtesy of VOLVO CARS CORPORATION

The switch for valet locking is at one edge of the glove compartment in the dashboard. The switch is directly connected to the central electronic module (CEM). The switch is affected after the glove compartment has been locked in the normal way using the key blade (turning 0 to 90 degrees) and then continuing to turn (from 90 to 180 degrees). When activating or deactivating the function, a message is displayed in the driver information module (DIM).
