Front Passenger Airbag Indication (2007)

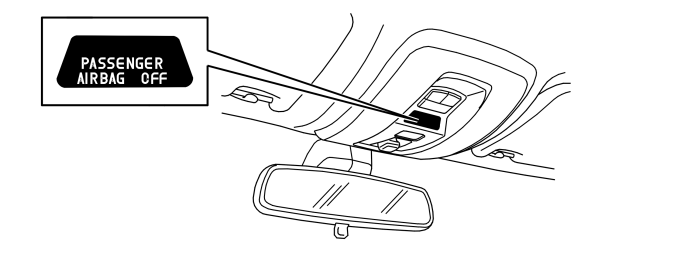

In order to indicate the status of the front passenger airbag, the vehicle is equipped with a passenger airbag warning lamp (PAD). The warning lamp is located in the roof console and is directly connected to the supplemental restraint system module (SRS).
The supplemental restraint system module (SRS) turns the warning lamp on or off depending on whether the front passenger airbag is disabled.
If there is a front passenger airbag switch installed (market dependent) and it is used to disable the airbag, the front passenger airbag warning lamp (PAD) lights.
The warning lamp goes out when the airbag is enabled.
If an occupant weight sensor (OWS) is installed (market-dependent), the warning light airbag passenger (PAD) is lit when the airbag is deactivated.
The warning lamp goes out when the airbag is enabled.
Reason the passenger airbag warning lamp (PAD) lights could also be:
- malfunction of the switch for the front passenger airbag, causing the supplemental restraint system module (SRS) to disable the front passenger airbag.
- malfunction of the occupant weight sensor (OWS), causing the supplemental restraint system module (SRS) to disable the front passenger airbag.
- other problems that affect function of the SRS-system.
