SRS Indication
The supplemental restraint system module (SRS) continuously checks the system. A diagnostic trouble code (DTC) is stored and an SRS indication is made.

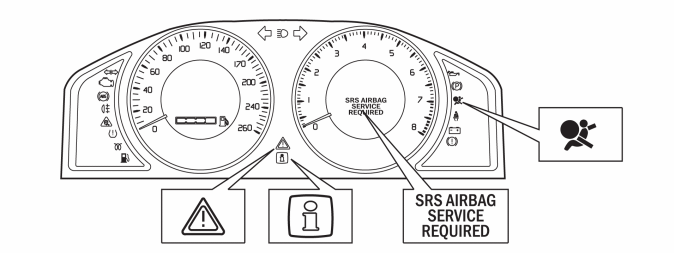

SRS indication is accompanied by a text message in the Driver information module (DIM), partly through:
- an SRS warning lamp
- a general warning lamp
The lamps light depending on how serious the fault is: Information about which lamp should be lit is transmitted by the supplemental restraint system module (SRS) on the controller area network (CAN).
The SRS warning lamp lights when the ignition is switched on. If no faults are registered by the control module, either internally or from the sensors, wiring or igniters, a signal is transmitted on the controller area network (CAN) to the driver information module (DIM) confirming that the SRS warning lamp can be switched off. If no faults are detected when the ignition is switched on, the lamp will remain lit for a few seconds. The lamp goes out when the system has been checked and is operating without faults.
The control module has an EEPROM memory which retains data about diagnostic trouble codes (DTCs) even when the battery has been disconnected.
The driver information module (DIM) continuously indicates to the supplemental restraint system module (SRS) the function of the SRS warning lamp. If the lamp stops working, the general warning lamp lights up and a message is displayed.
If a diagnostic trouble code is stored because the resistance in an SRS ignition cable is too high or too low, it is important that the resistance of the SRS ignition cable is not measured when the collision protection system is connected. Special tools with the same resistance as the collision protection system must be used for troubleshooting.
