General Information

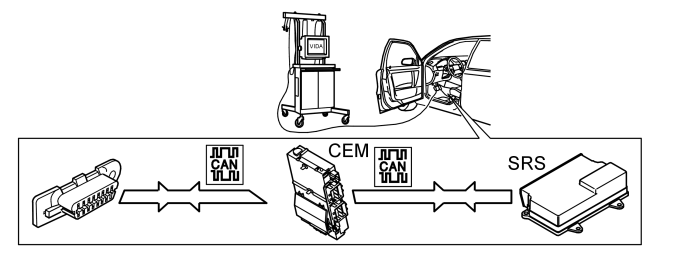

Fig 1: Identifying On-Board Diagnostic (OBD) System
GLL152499Courtesy of VOLVO CARS CORPORATION

The on-board diagnostic (OBD) system for the supplemental restraint system module (SRS) continually diagnoses the function of supplemental restraint system components and stores any diagnostic trouble codes (DTCs). The diagnostic trouble codes (DTCs) can then be read off. Information is presented in the same way as with other diagnostic systems.
