System Overview: Signals

The table below summarizes the input signals to and output signals from the Television Module (TVM). The signal types are divided into directly connected signals, MOST- and CAN-communication. Fig 1 displays the same information with the Volvo component designations.

Input signals	Output signals
Directly connected:	Directly connected:
Antenna booster 4 television (16/188) Antenna booster 1 television (16/185)	Phantom-feed antenna booster 4 television (16/188) Phantom-feed antenna booster 1 television (16/185) Infotainment control module (ICM) (3/281) Composite video signal (CVBS)
Via LIN communication:	Via LIN communication:
Steering Wheel Module (SWM) (3/130)
Via Controller Area Network (CAN) communication:	Via Controller Area Network (CAN) communication:
Climate control module (CCM) (4/6)
Via MOST communication:	Via MOST communication:
Infotainment Control Module (ICM) (3/281) Audio module (AUD) (16/105)	Infotainment Control Module (ICM) (3/281) Audio module (AUD) (16/105)

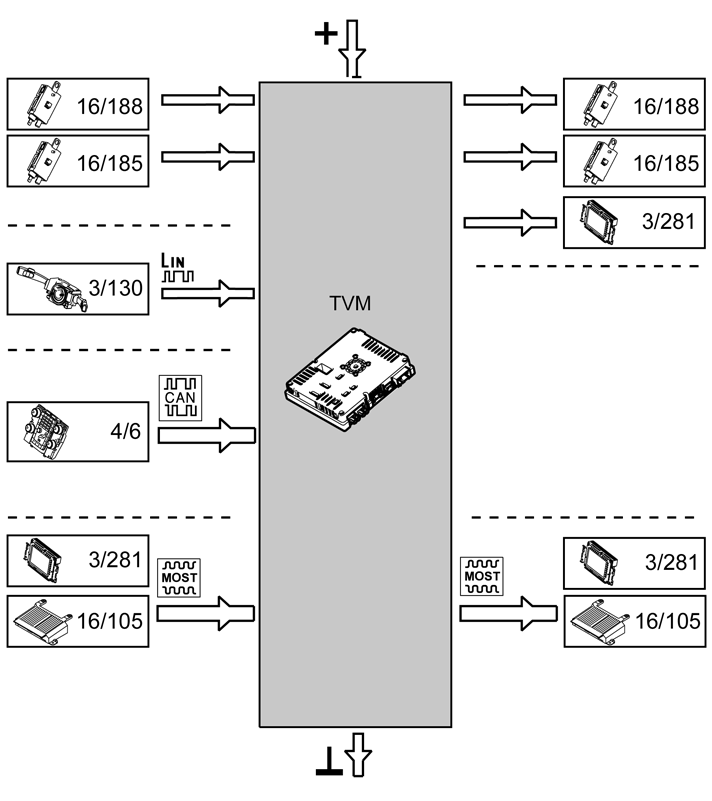

Fig 1: Identifying Television Module (TVM) Signal Types

Courtesy of VOLVO CARS CORPORATION
