Data Link Connector

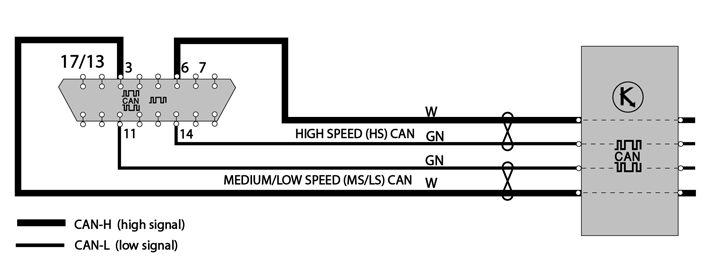

Fig 1: Identifying CAN Data Link Connector & Terminals
GLL172402Courtesy of VOLVO CARS CORPORATION

The data link connector is located in the passenger compartment near the driver's station, cables for high-speed side (HS CAN) and middle-speed side (MS CAN) are connected to the data link connector.

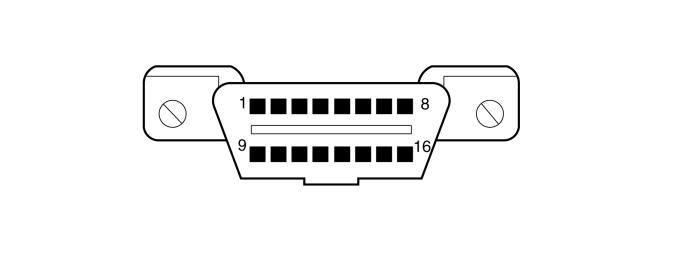

Fig 2: Identifying Standardized Pins On OBD II-Connector
GLL161139Courtesy of VOLVO CARS CORPORATION
NOTE:

The data link connector's other connections may be used for other functions. This service information only describes connections related to CAN.
