Crankshaft Position Sensor (CKP): Removal

NOTE:

Removal steps in this procedure may contain installation details.

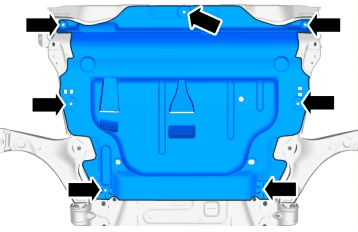

Fig 1: Locating Engine Undercover And Clips
GLL156132Courtesy of VOLVO CARS CORPORATION

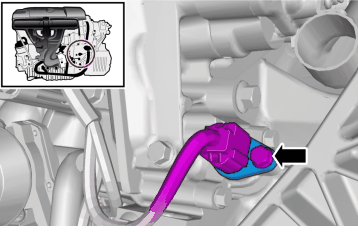

Fig 2: Locating Crankshaft Position Sensor (CKP)
GLL156200Courtesy of VOLVO CARS CORPORATION

Torque:  M6

10 Nm
