Ignition Coil: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Fig 1: Identifying Engine Cover Removal
GLL156080Courtesy of VOLVO CARS CORPORATION
Fig 2: Locating Ignition Coil Connectors
GLL156185Courtesy of VOLVO CARS CORPORATION

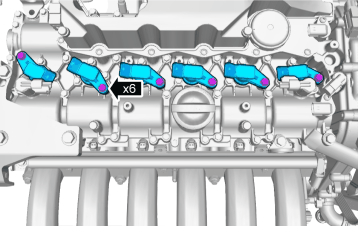

Fig 3: Identifying Ignition Coils
GLL156186Courtesy of VOLVO CARS CORPORATION

Torque:  M6

10 Nm
