Spark Plugs: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove ignition coil, see IGNITION COIL

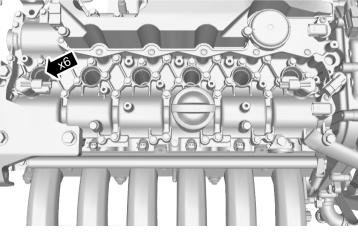

Fig 1: Locating Spark Plugs
GLL156187Courtesy of VOLVO CARS CORPORATION

Torque:  Spark plug

25 Nm

Torque:  Spark plug

28 Nm
