Removing The Engine Control Module (ECM)
- Ignition off. Wait for 2 minutes
- Remove the cover over the control module box. Put the cover to one side

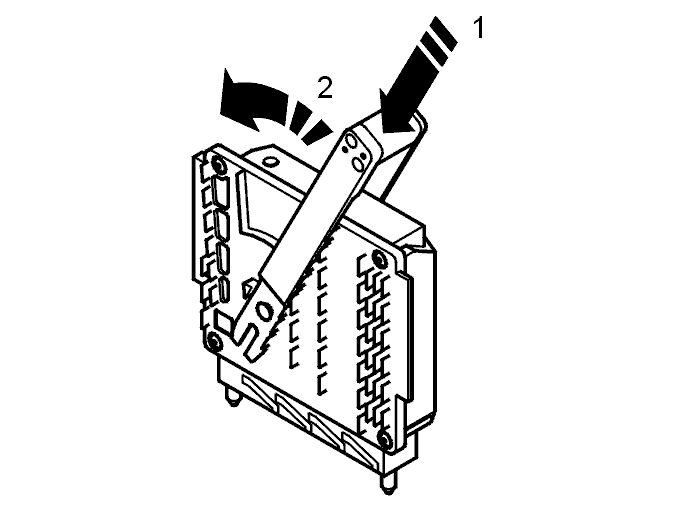

- Insert tool see 9995722 around the control module.
- Move the upper section of the tool backwards as far as it will go. Pull up the tool
- Carefully pull up the control module.
NOTE:
Do not touch the control module terminal pins with your fingers. Static electricity may damage components in the control module.
