Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

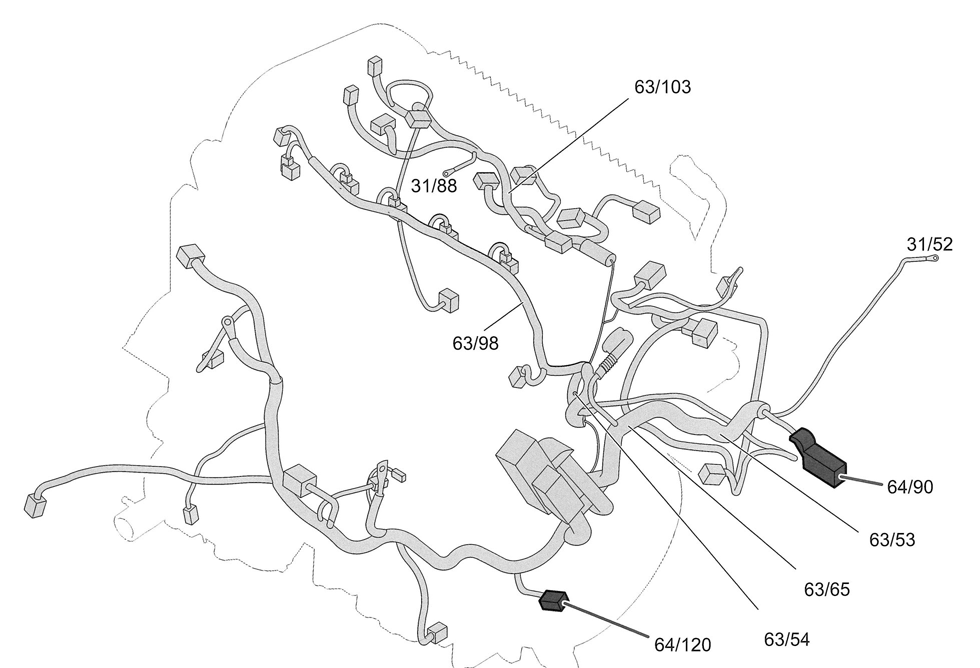

Fig 1: Engine Harness
Courtesy of VOLVO CARS OF NORTH AMERICA.

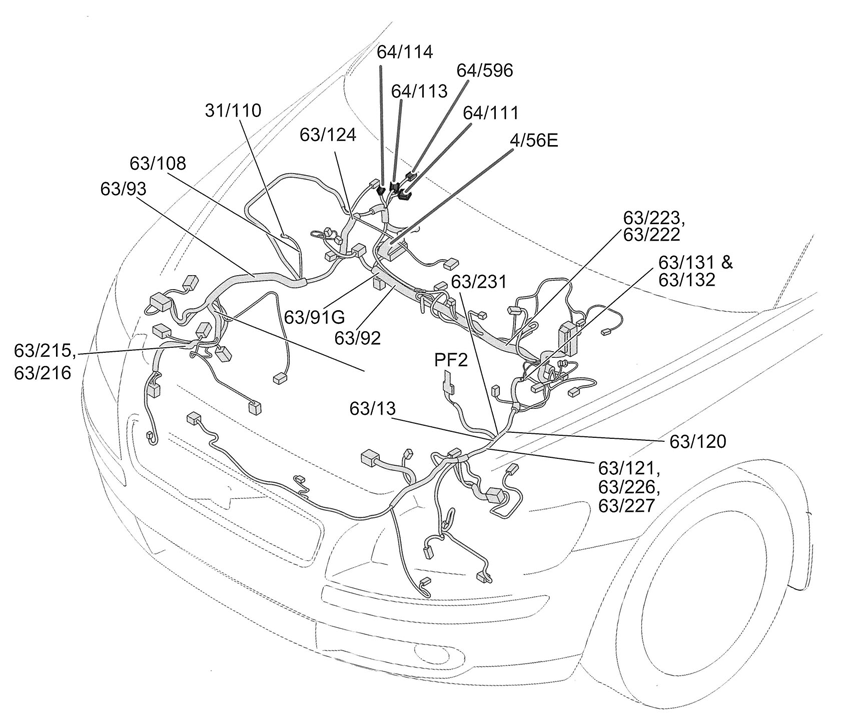

Fig 2: Engine Compartment Harness
Courtesy of VOLVO CARS OF NORTH AMERICA.

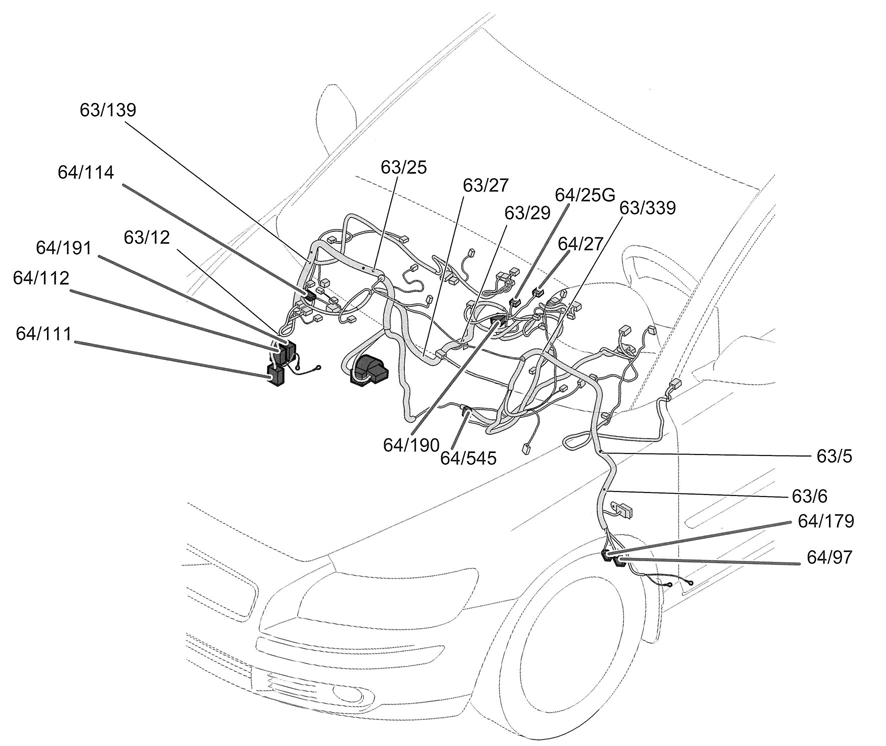

Fig 3: Dashboard Harness
Courtesy of VOLVO CARS OF NORTH AMERICA.

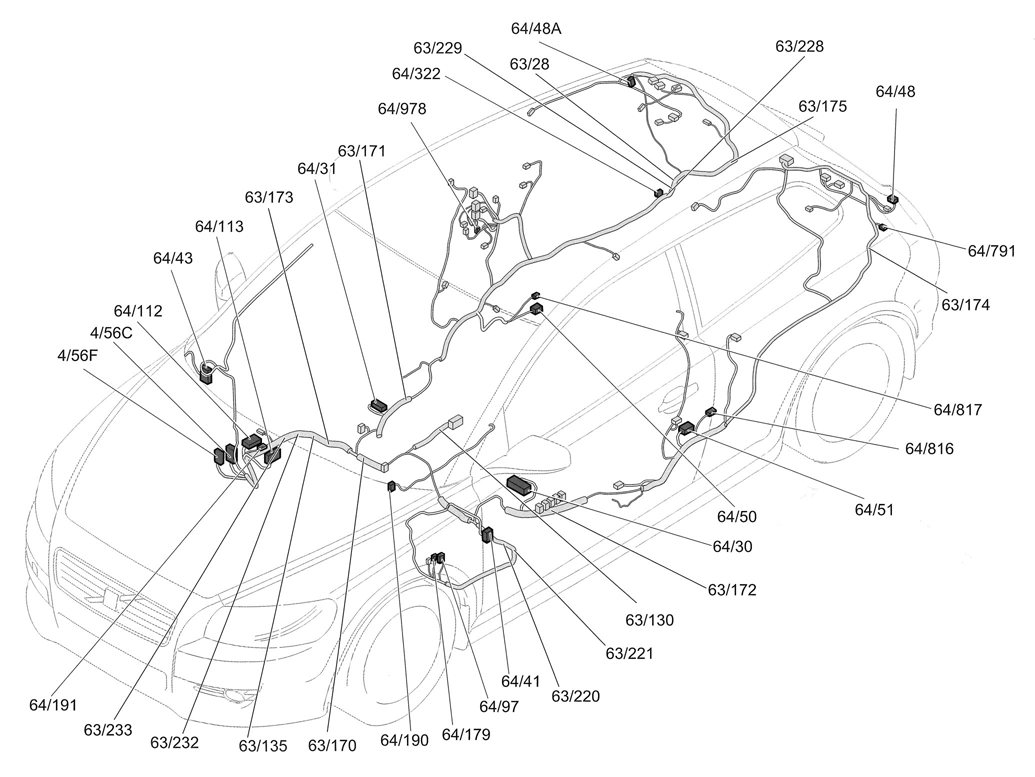

Fig 4: Floor Harness (C30)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 5: Floor Harness (S40)
Courtesy of VOLVO CARS OF NORTH AMERICA.

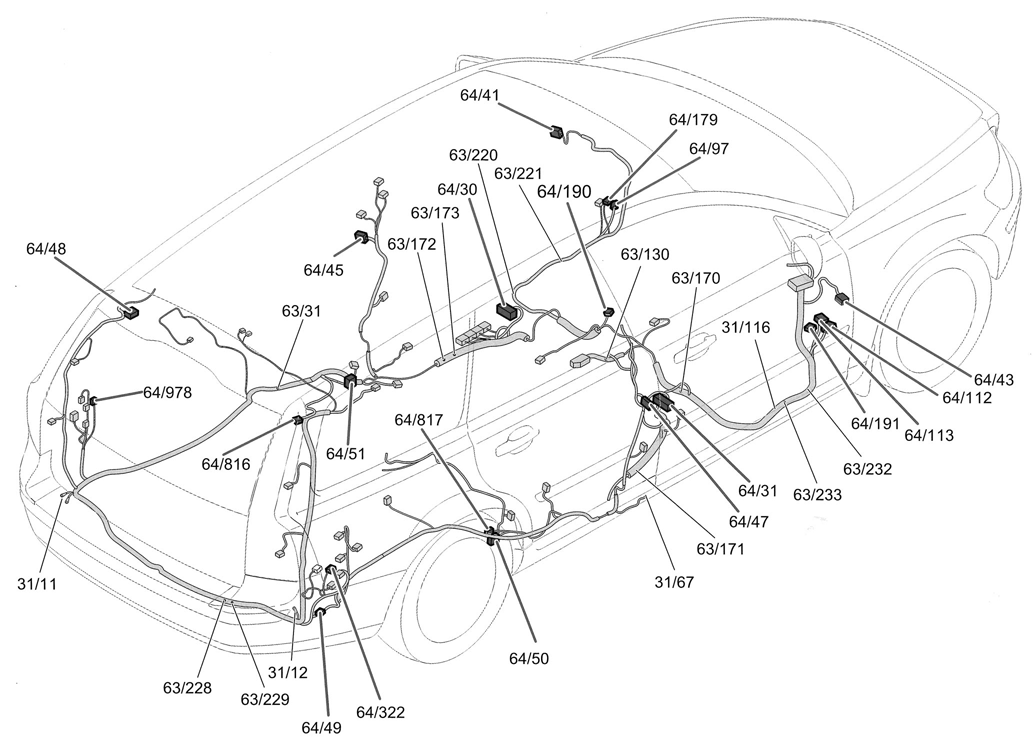

Fig 6: Floor Harness (V50)
Courtesy of VOLVO CARS OF NORTH AMERICA.

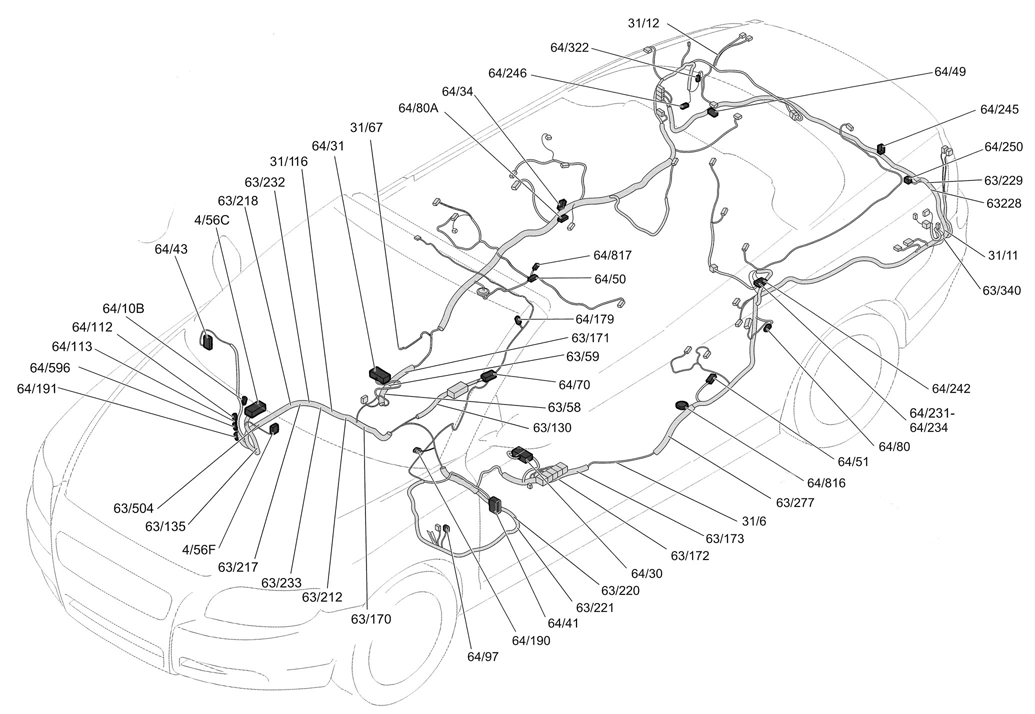

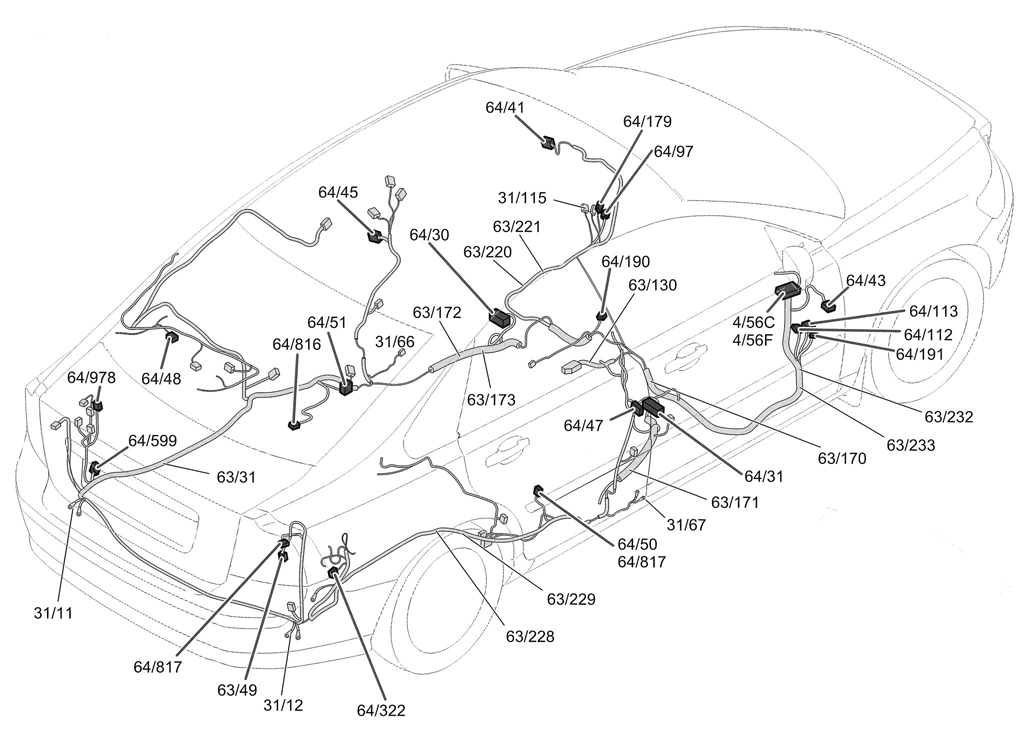

Fig 7: Floor Harness (C70)
Courtesy of VOLVO CARS OF NORTH AMERICA.

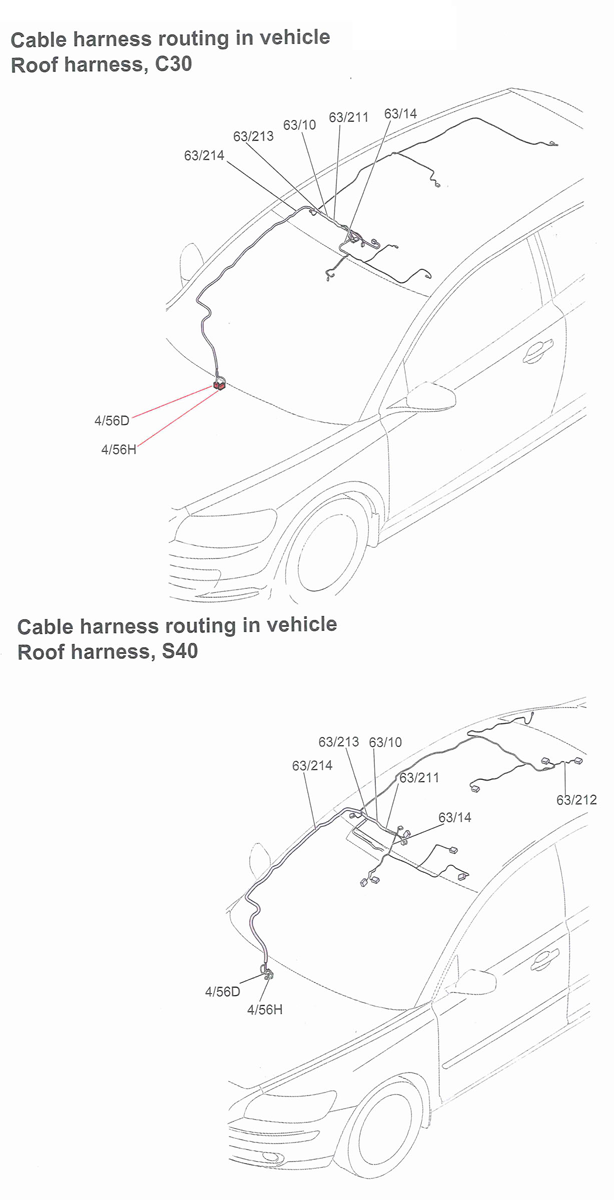

Fig 8: Roof Harness (C30 & S40)
Courtesy of VOLVO CARS OF NORTH AMERICA.

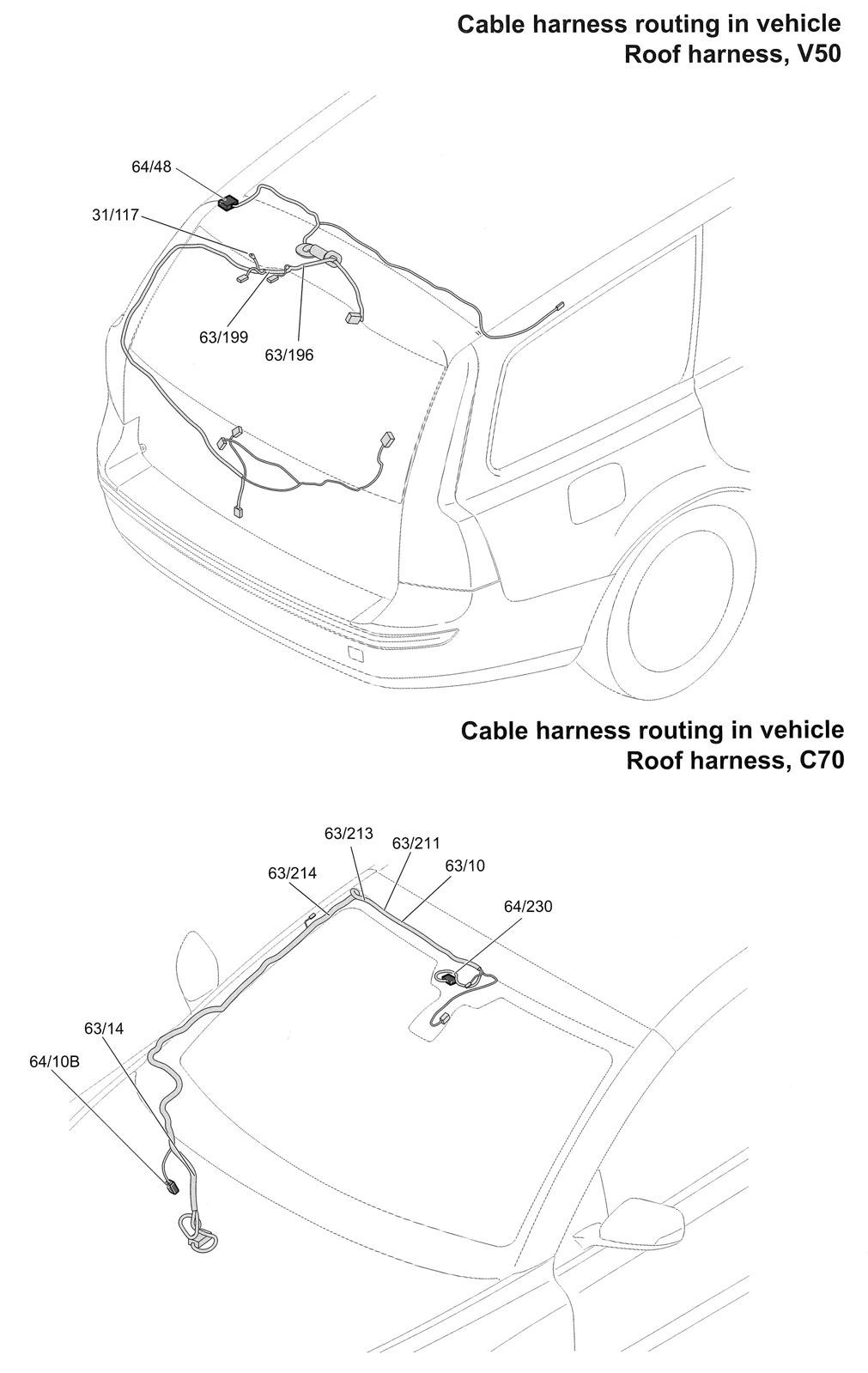

Fig 9: Roof Harness (C70 & V50)
Courtesy of VOLVO CARS OF NORTH AMERICA.

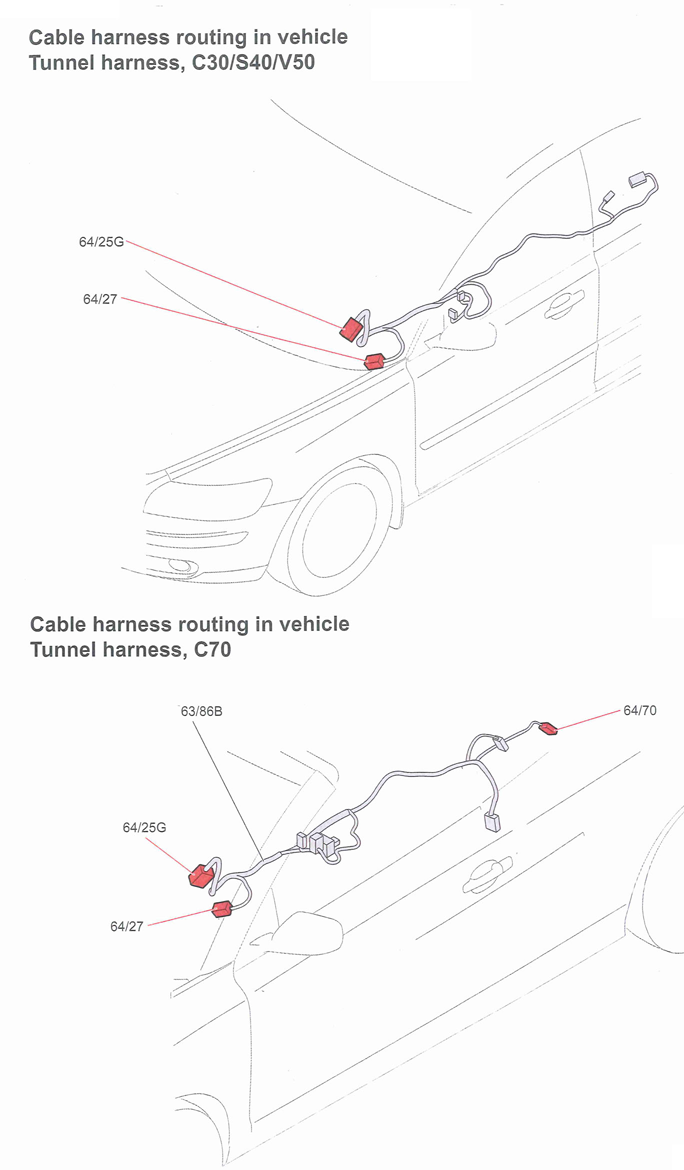

Fig 10: Tunnel Harness (C30, C70, S40 & V50)
Courtesy of VOLVO CARS OF NORTH AMERICA.

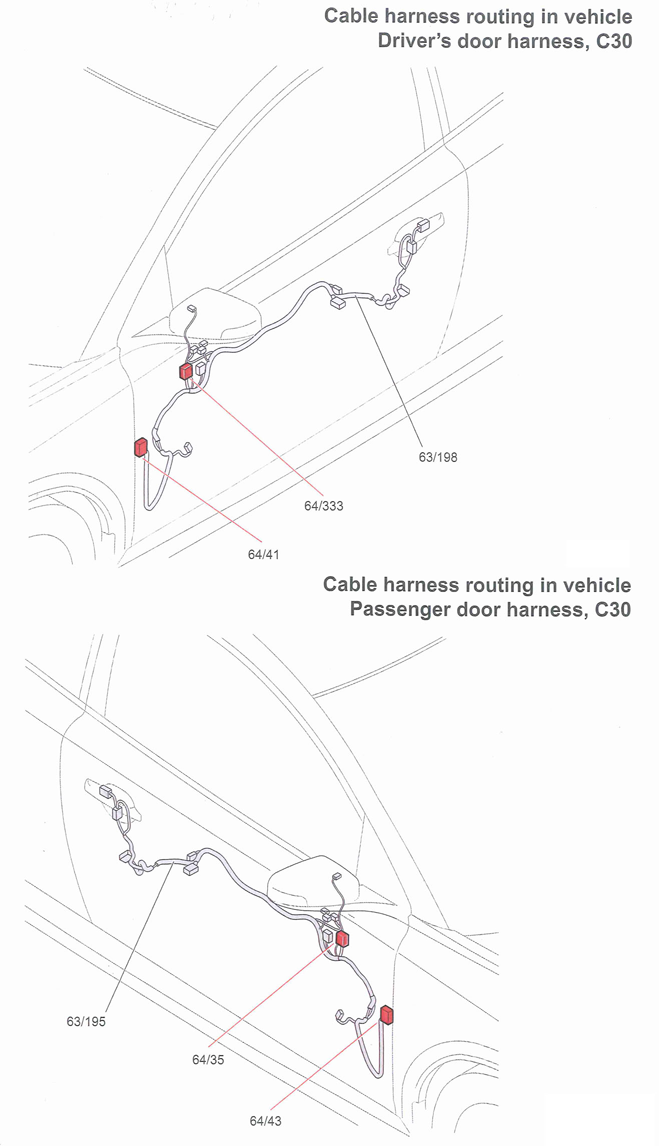

Fig 11: Driver & Passenger Door Harness (C30)
Courtesy of VOLVO CARS OF NORTH AMERICA.

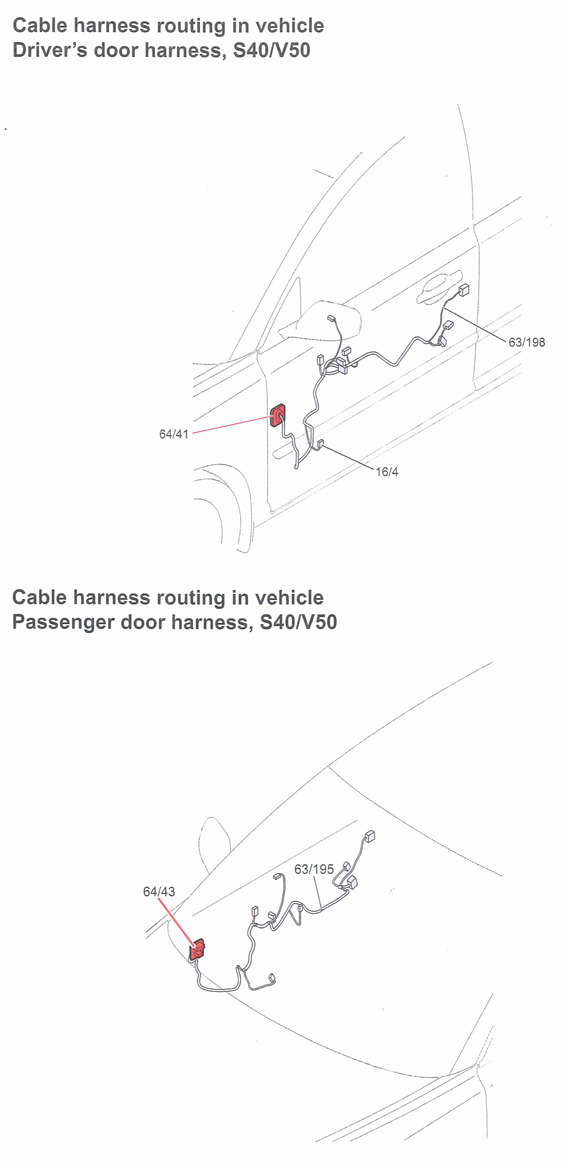

Fig 12: Driver & Passenger Door Harness (S40 & V50)
Courtesy of VOLVO CARS OF NORTH AMERICA.

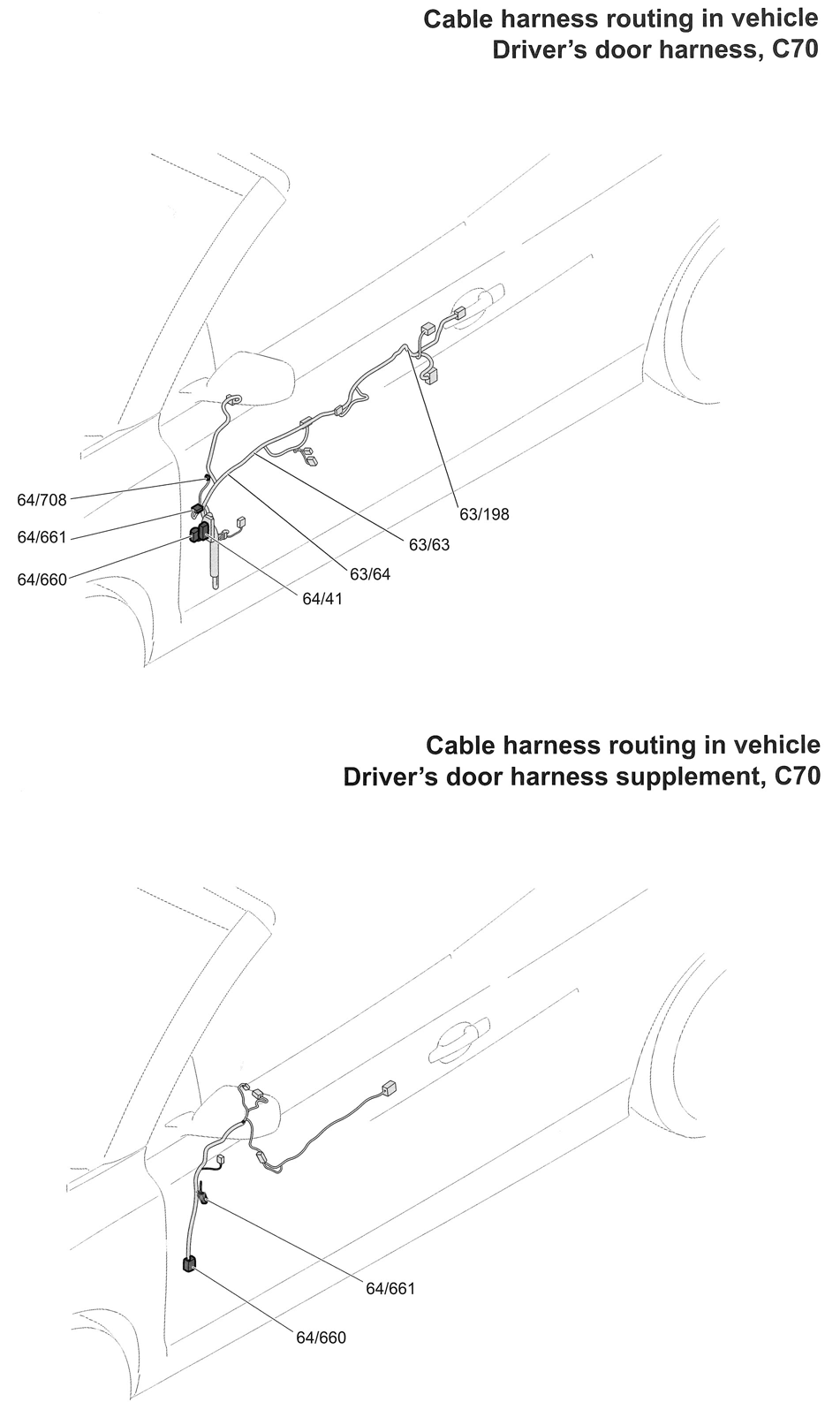

Fig 13: Driver & Passenger Door Harness (S40 & V50)
Courtesy of VOLVO CARS OF NORTH AMERICA.

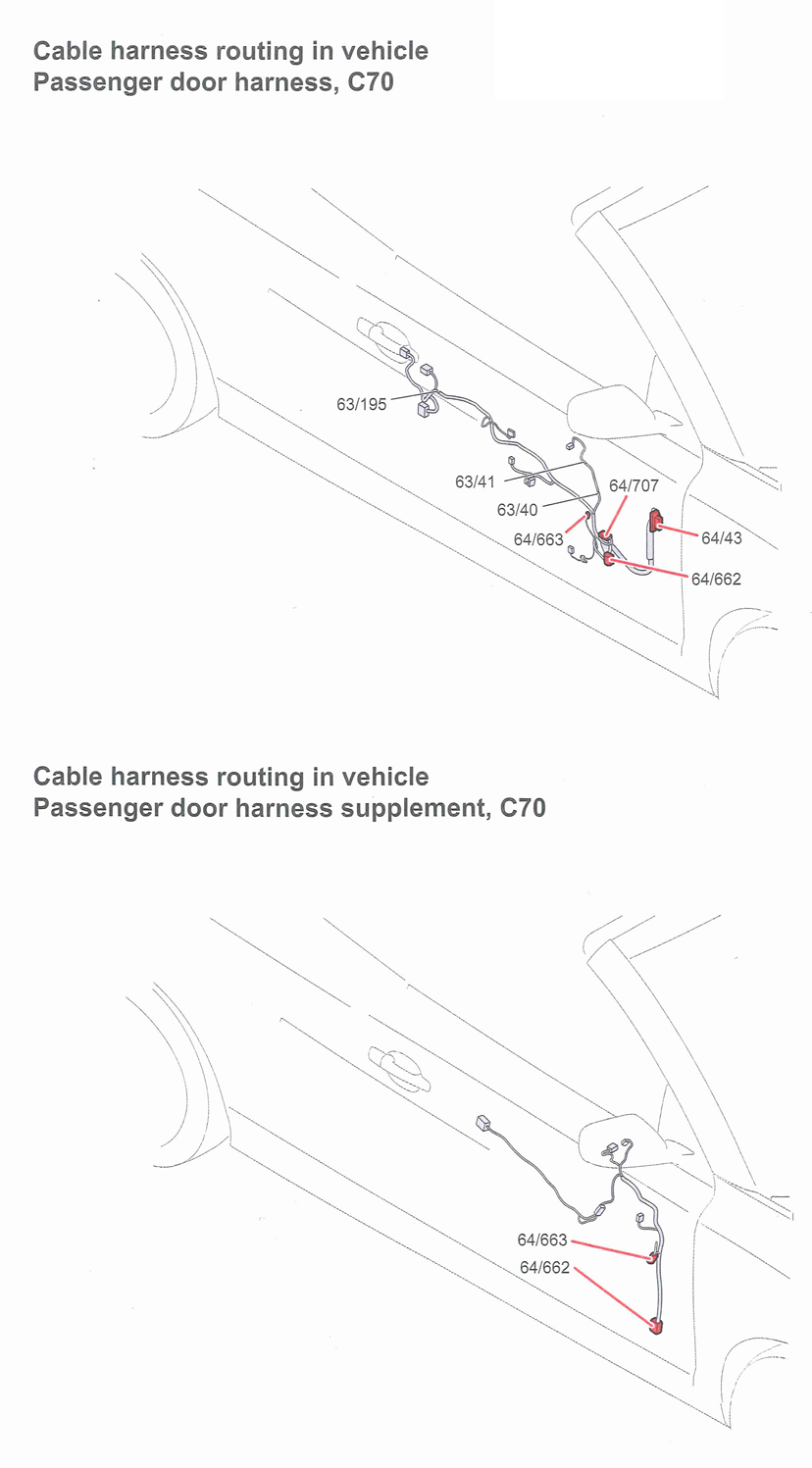

Fig 14: Passenger Door Harness (C70)
Courtesy of VOLVO CARS OF NORTH AMERICA.

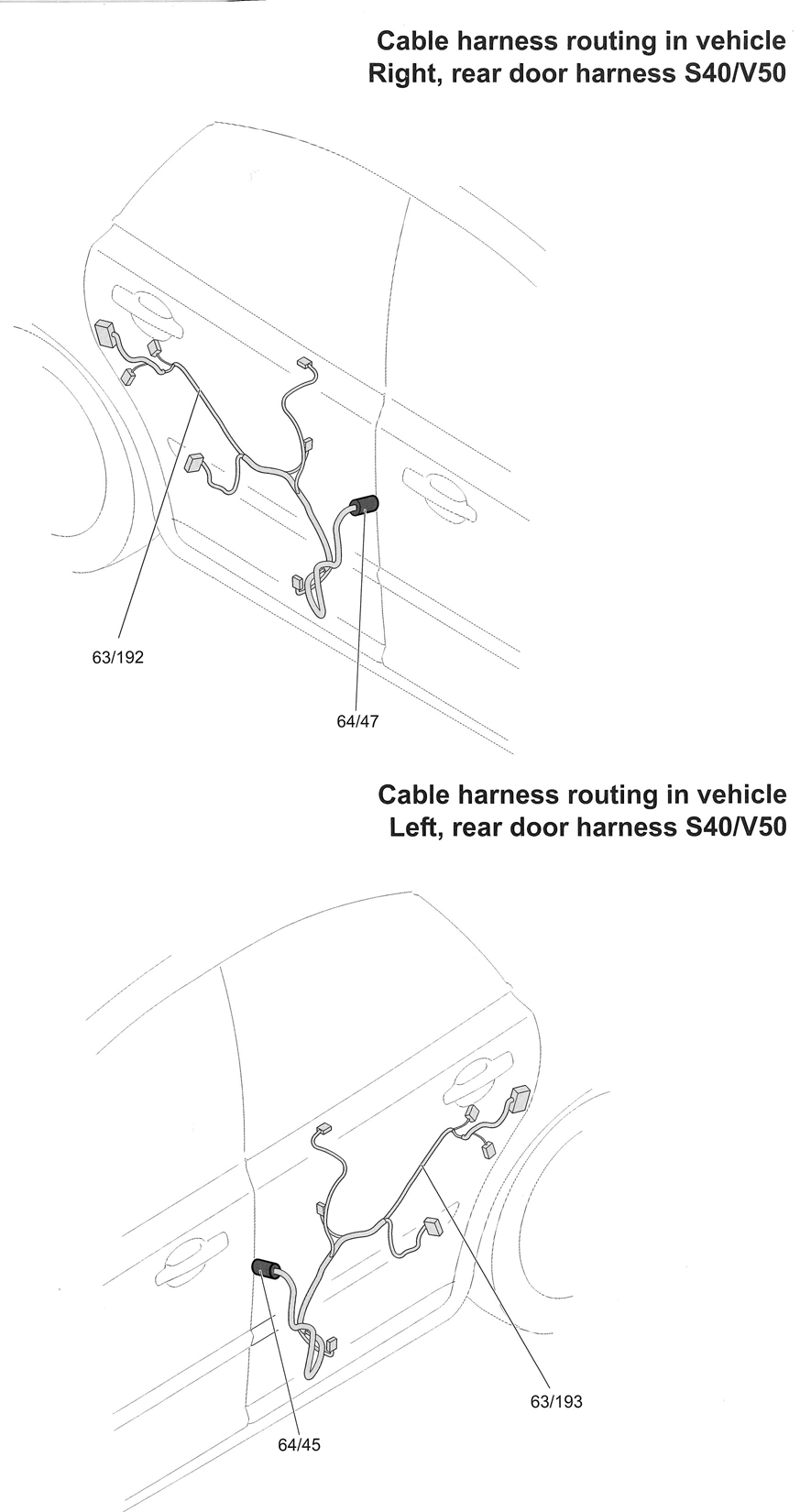

Fig 15: Rear Door Harness (S40 & V50)
Courtesy of VOLVO CARS OF NORTH AMERICA.

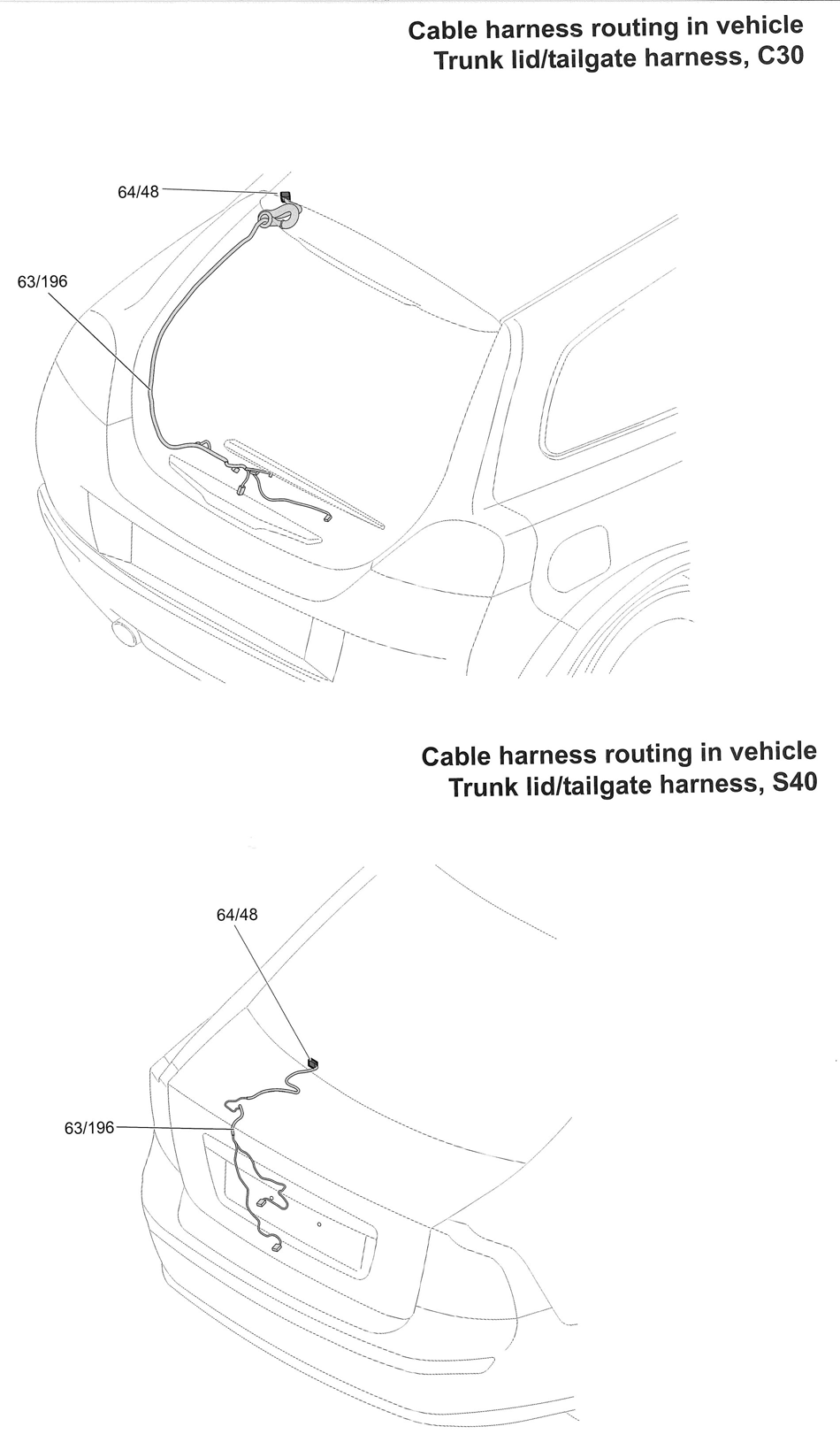

Fig 16: Trunk Lid/Tailgate Harness (C30 & S40)
Courtesy of VOLVO CARS OF NORTH AMERICA.

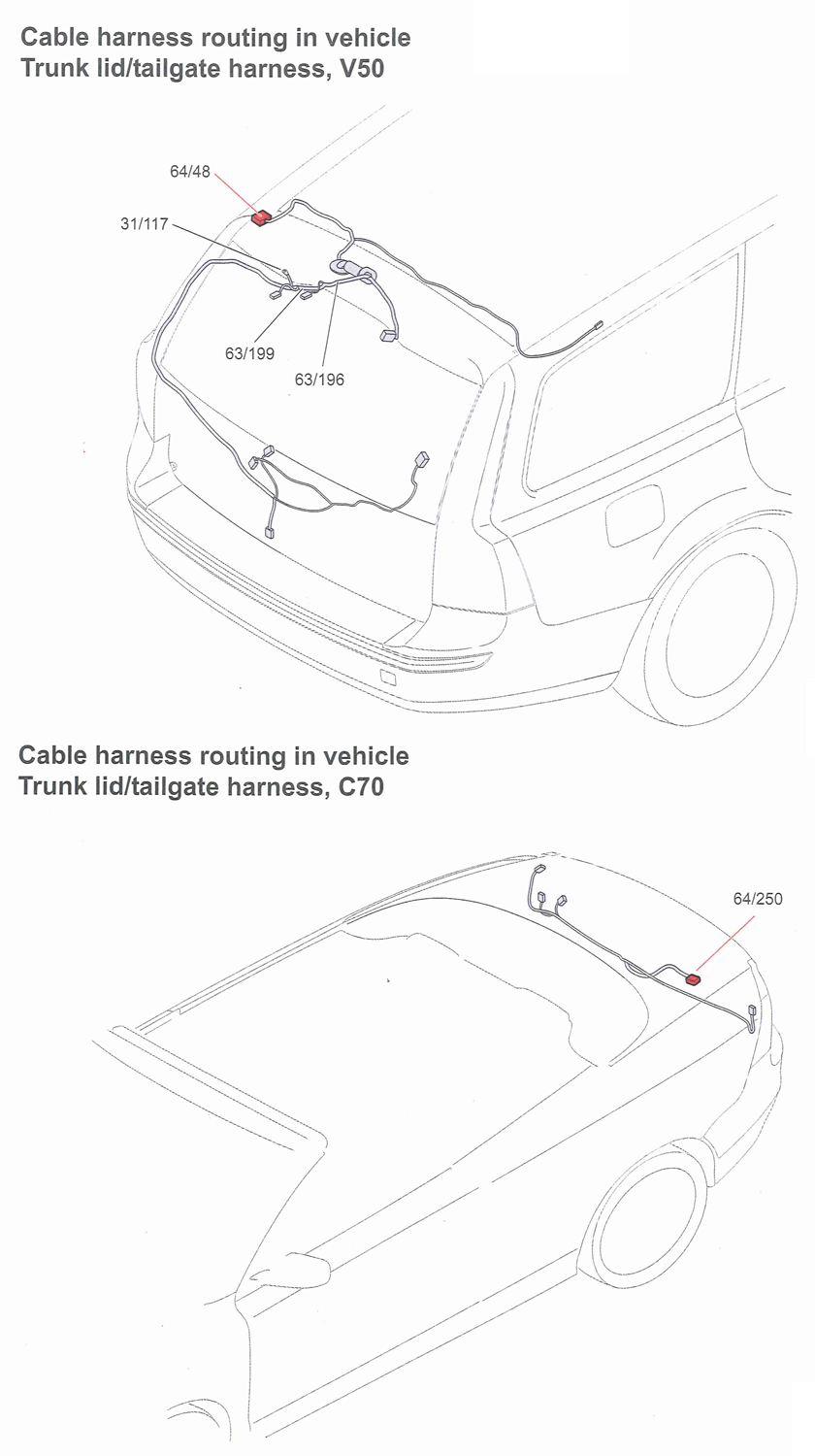

Fig 17: Trunk Lid/Tailgate Harness (C70 & V50)
Courtesy of VOLVO CARS OF NORTH AMERICA.

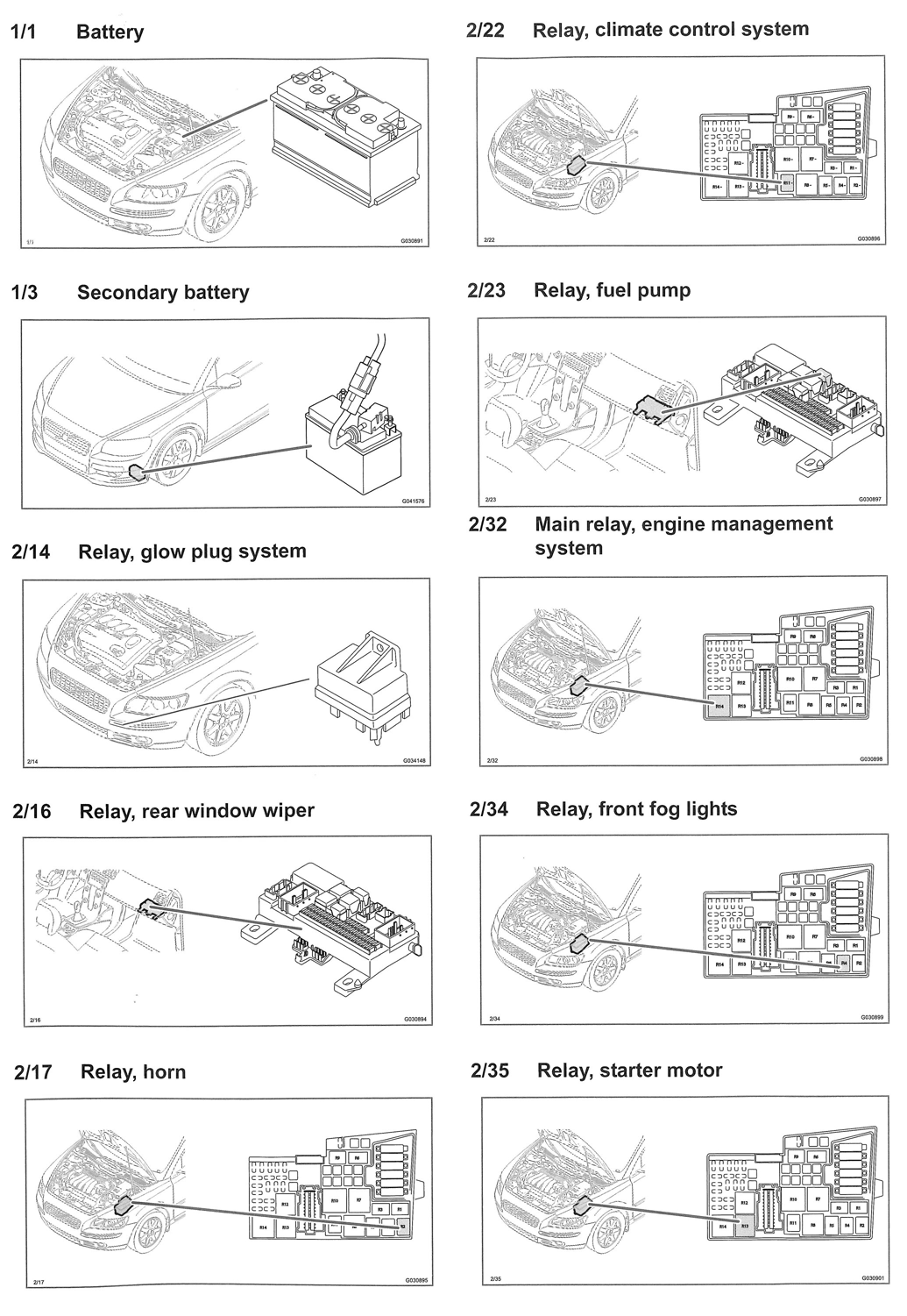

Fig 18: Components 1/1 To 2/35
Courtesy of VOLVO CARS OF NORTH AMERICA.

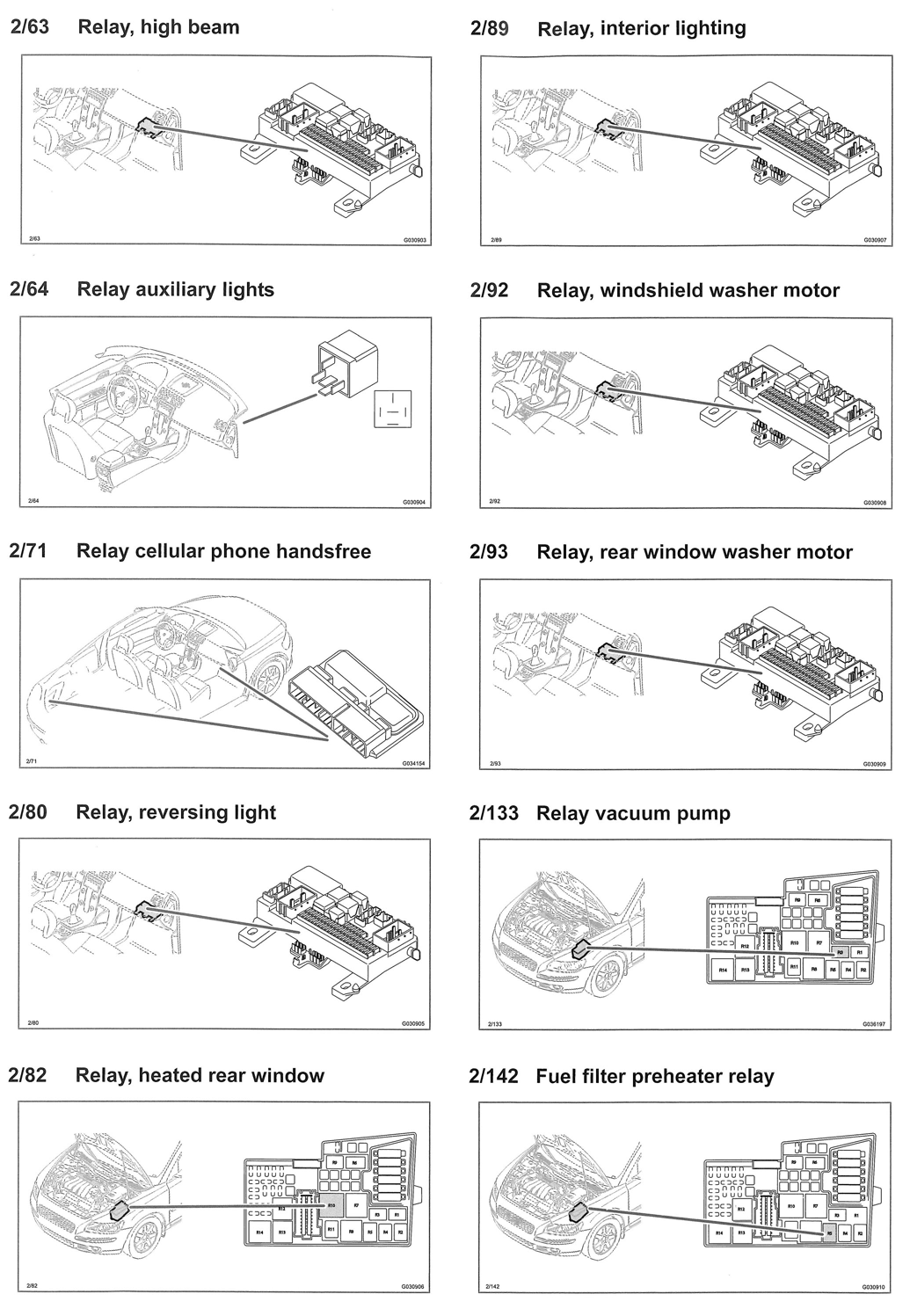

Fig 19: Components 2/63 To 2/142
Courtesy of VOLVO CARS OF NORTH AMERICA.

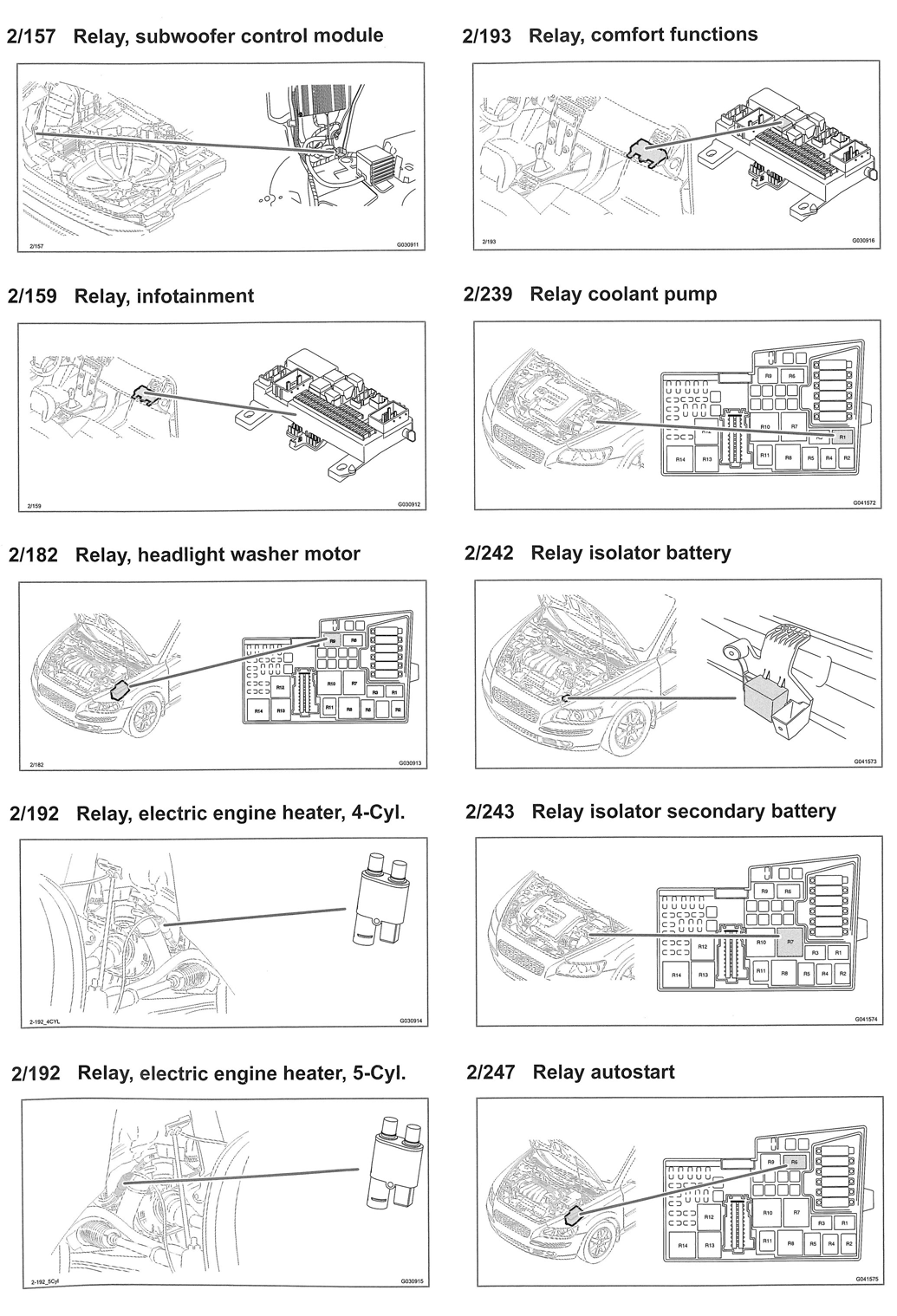

Fig 20: Components 2/157 To 2/247
Courtesy of VOLVO CARS OF NORTH AMERICA.

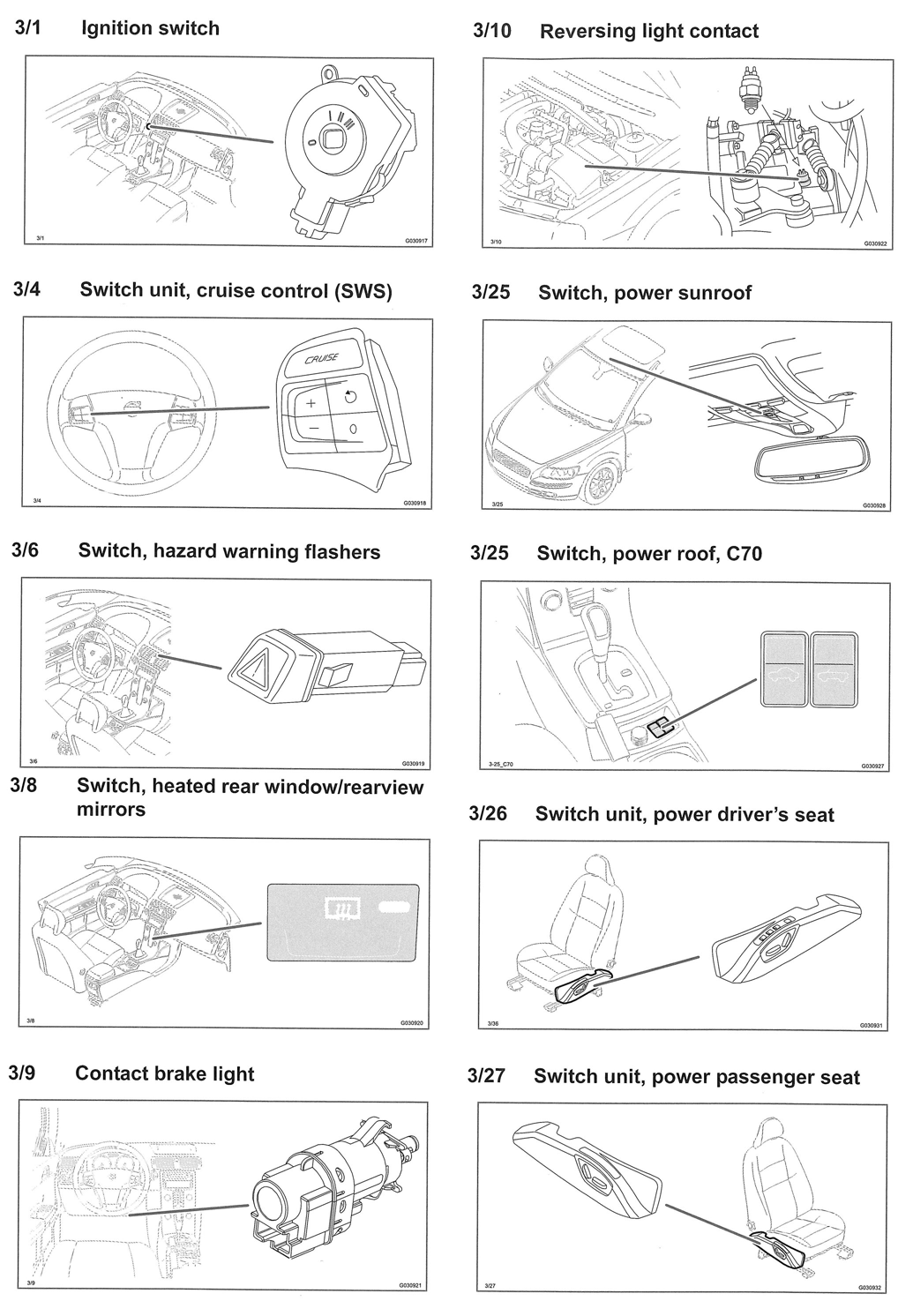

Fig 21: Components 3/1 To 3/27
Courtesy of VOLVO CARS OF NORTH AMERICA.

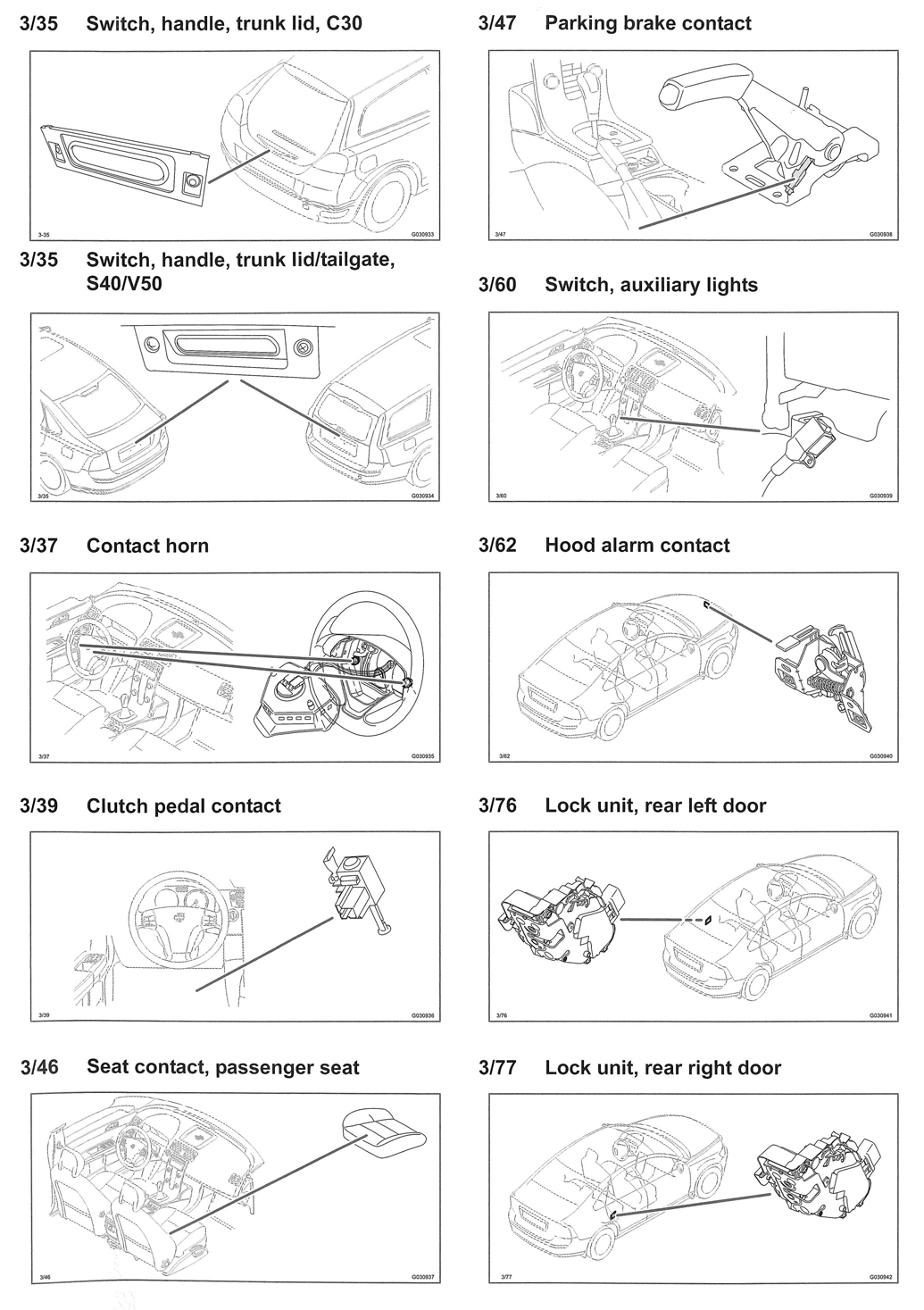

Fig 22: Components 3/35 To 3/77
Courtesy of VOLVO CARS OF NORTH AMERICA.

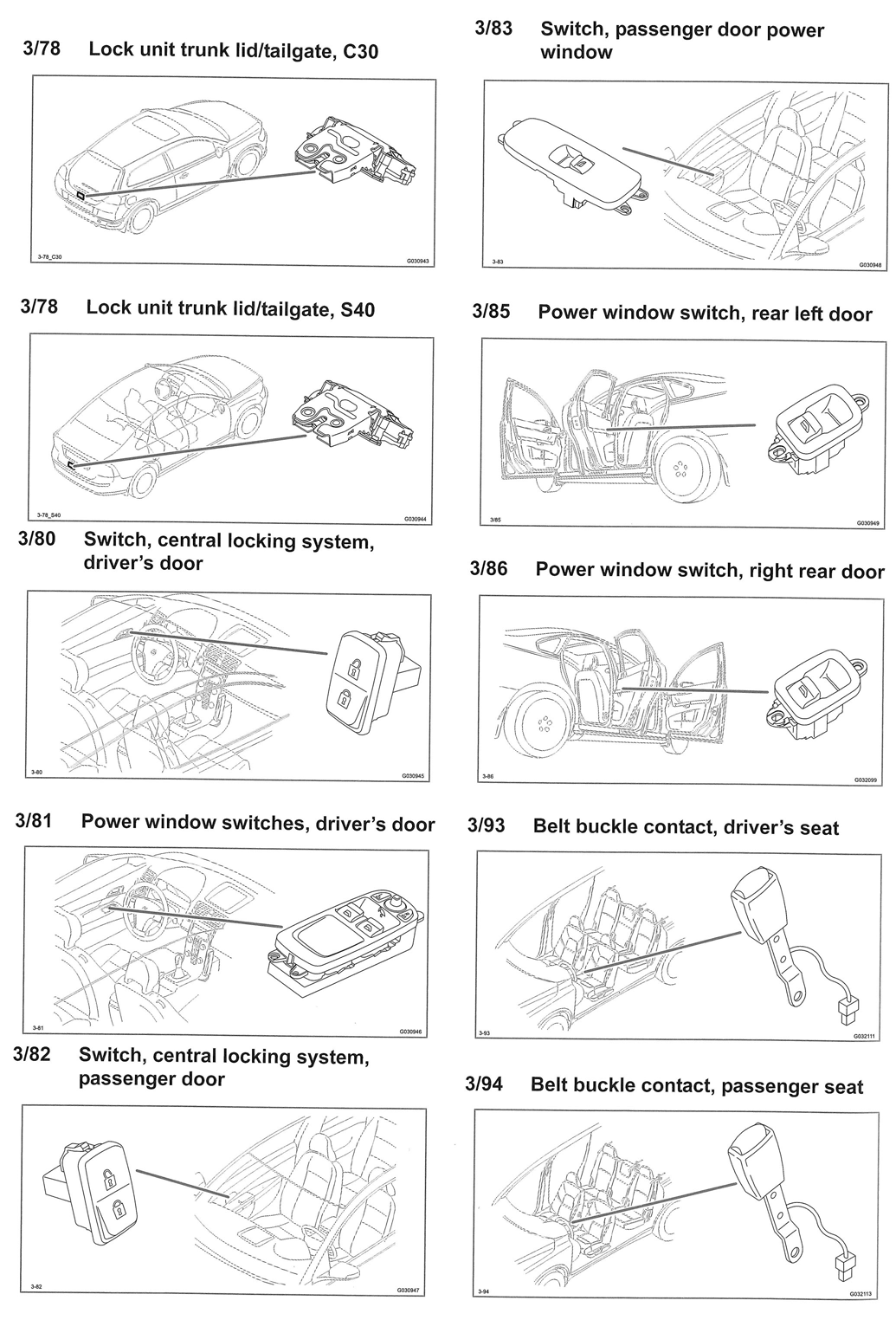

Fig 23: Components 3/78 To 3/94
Courtesy of VOLVO CARS OF NORTH AMERICA.

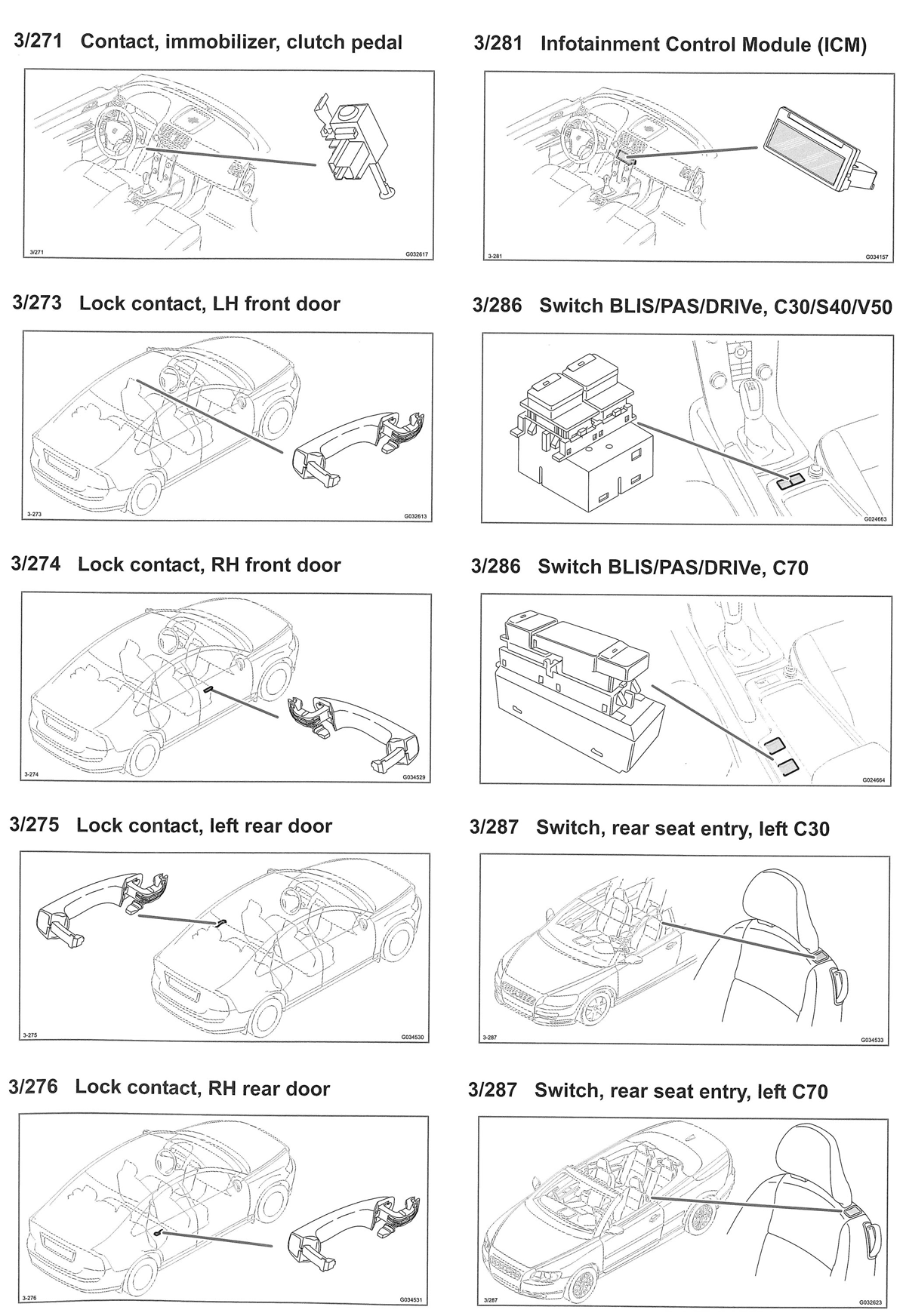

Fig 24: Components 3/271 To 3/287
Courtesy of VOLVO CARS OF NORTH AMERICA.

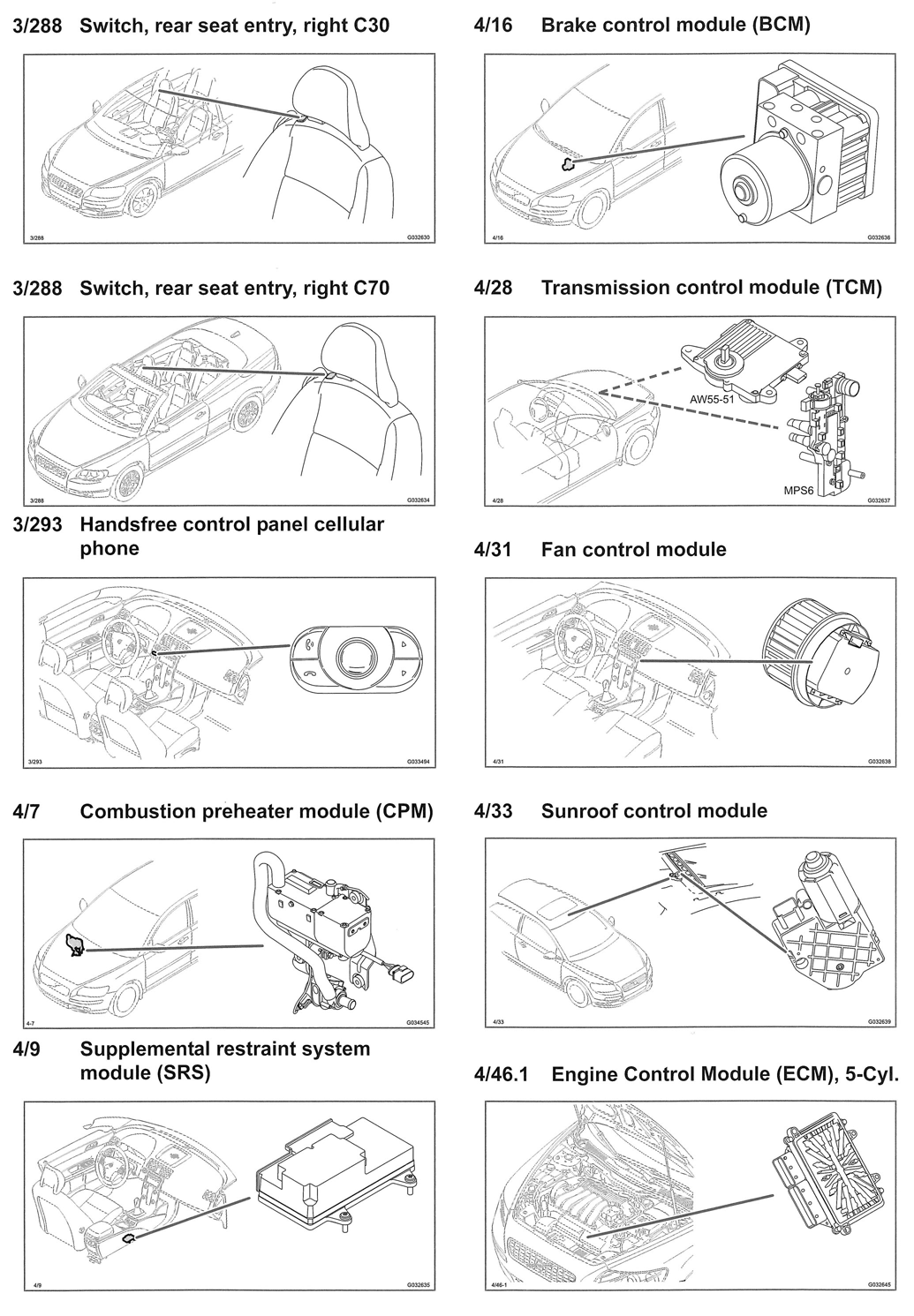

Fig 25: Components 3/288 To 4/46.1
Courtesy of VOLVO CARS OF NORTH AMERICA.

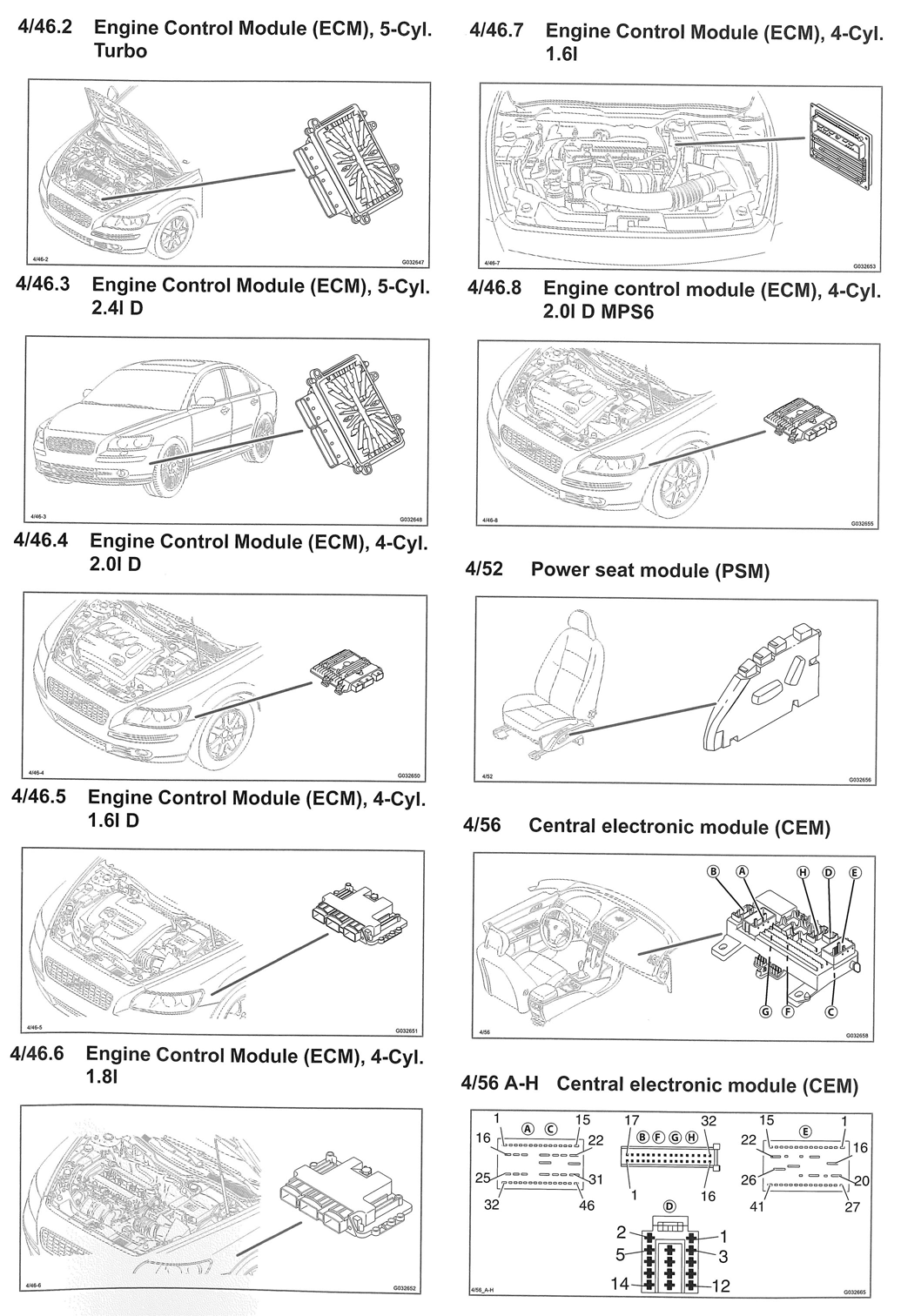

Fig 26: Components 4/46.2 To 4/56 A-H
Courtesy of VOLVO CARS OF NORTH AMERICA.

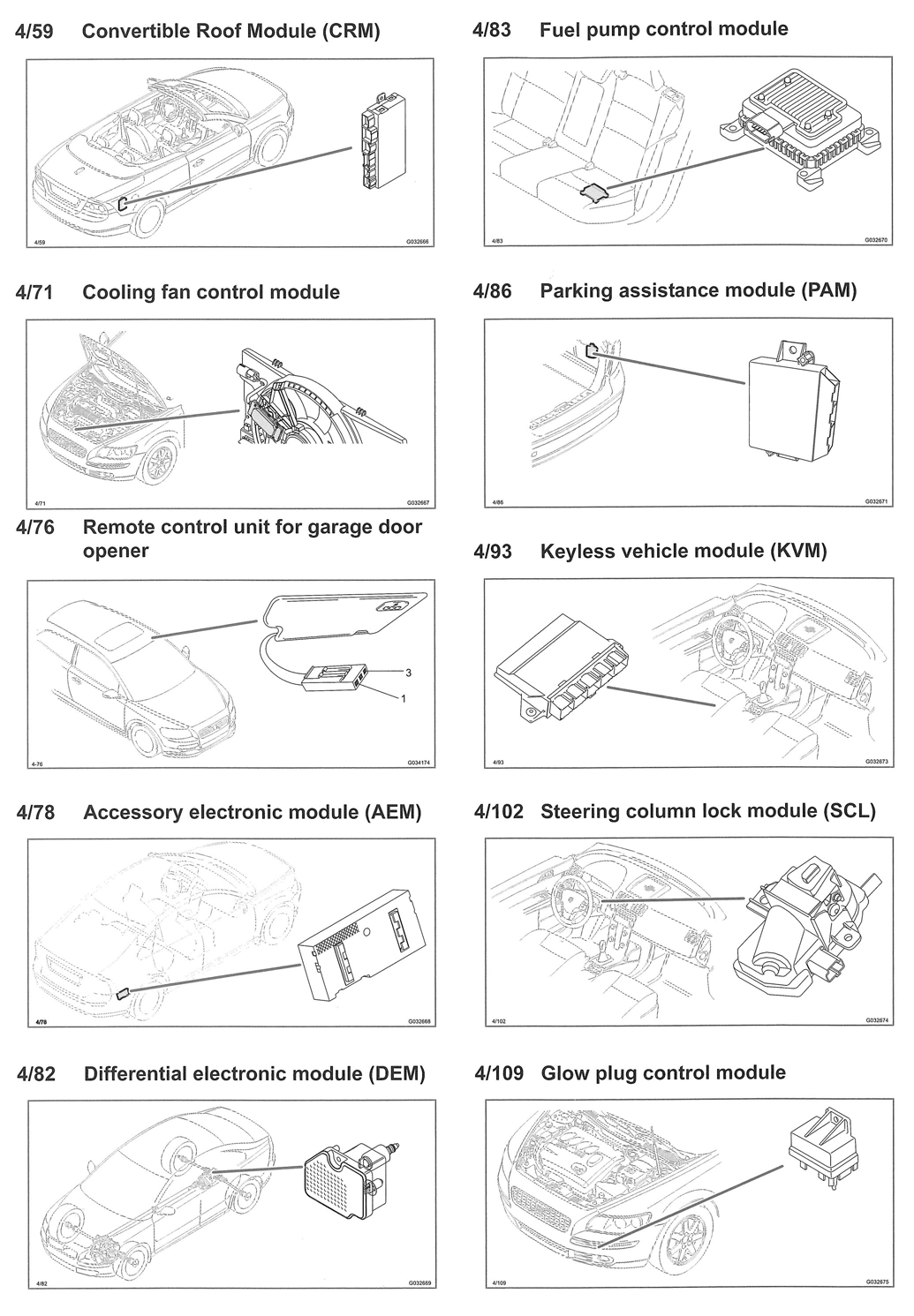

Fig 27: Components 4/59 To 4/109
Courtesy of VOLVO CARS OF NORTH AMERICA.

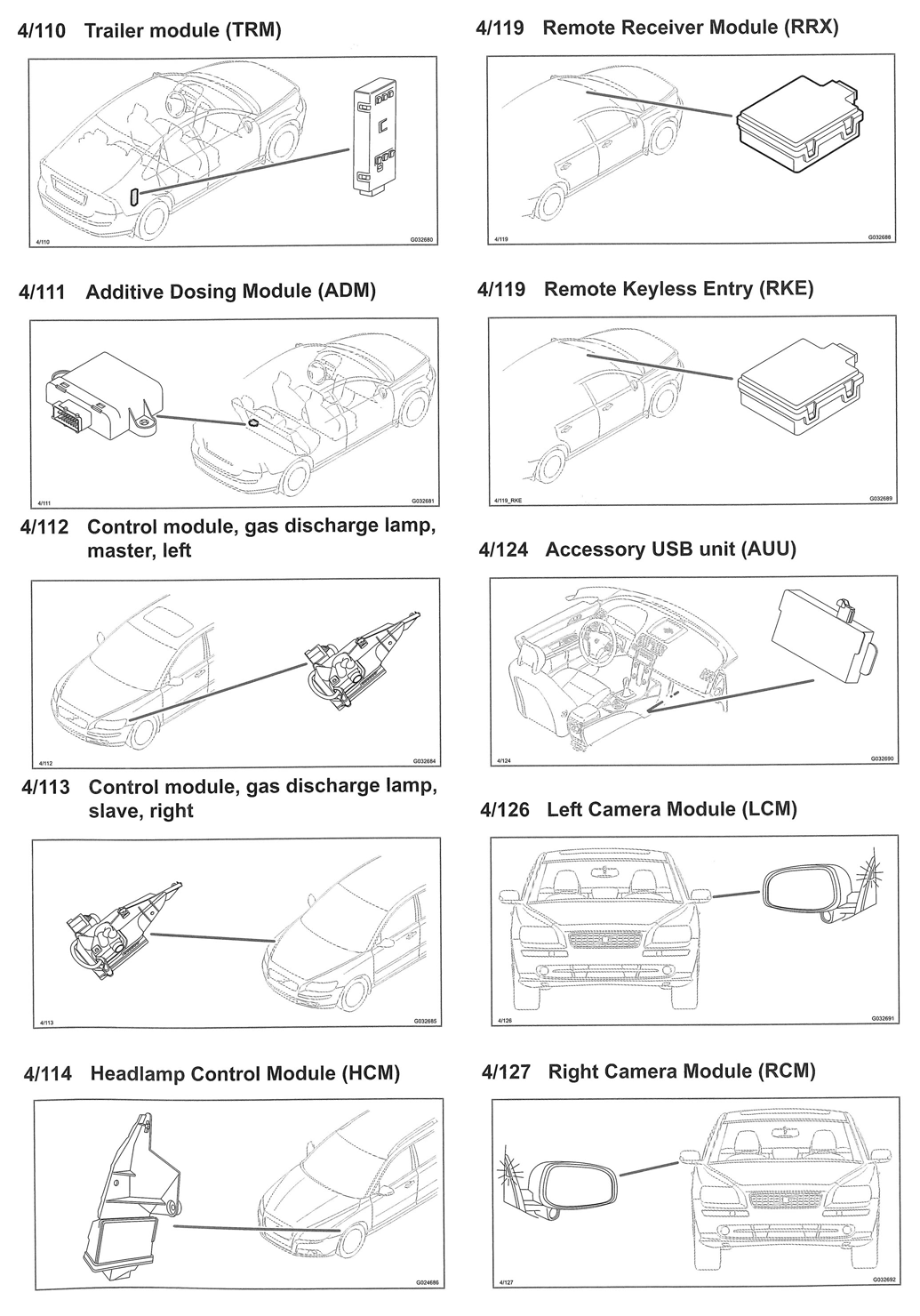

Fig 28: Components 4/110 To 4/127
Courtesy of VOLVO CARS OF NORTH AMERICA.

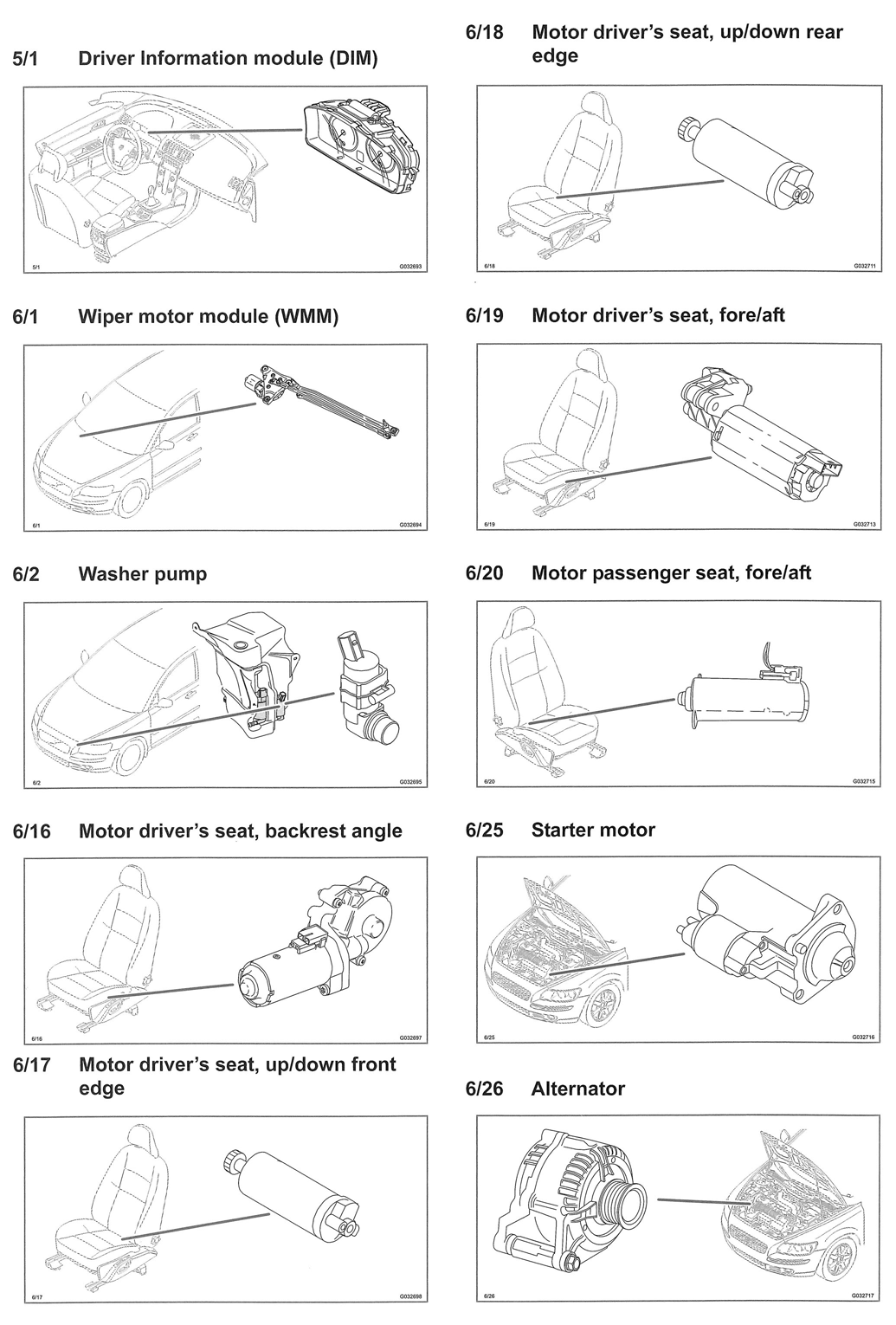

Fig 29: Components 5/1 To 6/26
Courtesy of VOLVO CARS OF NORTH AMERICA.

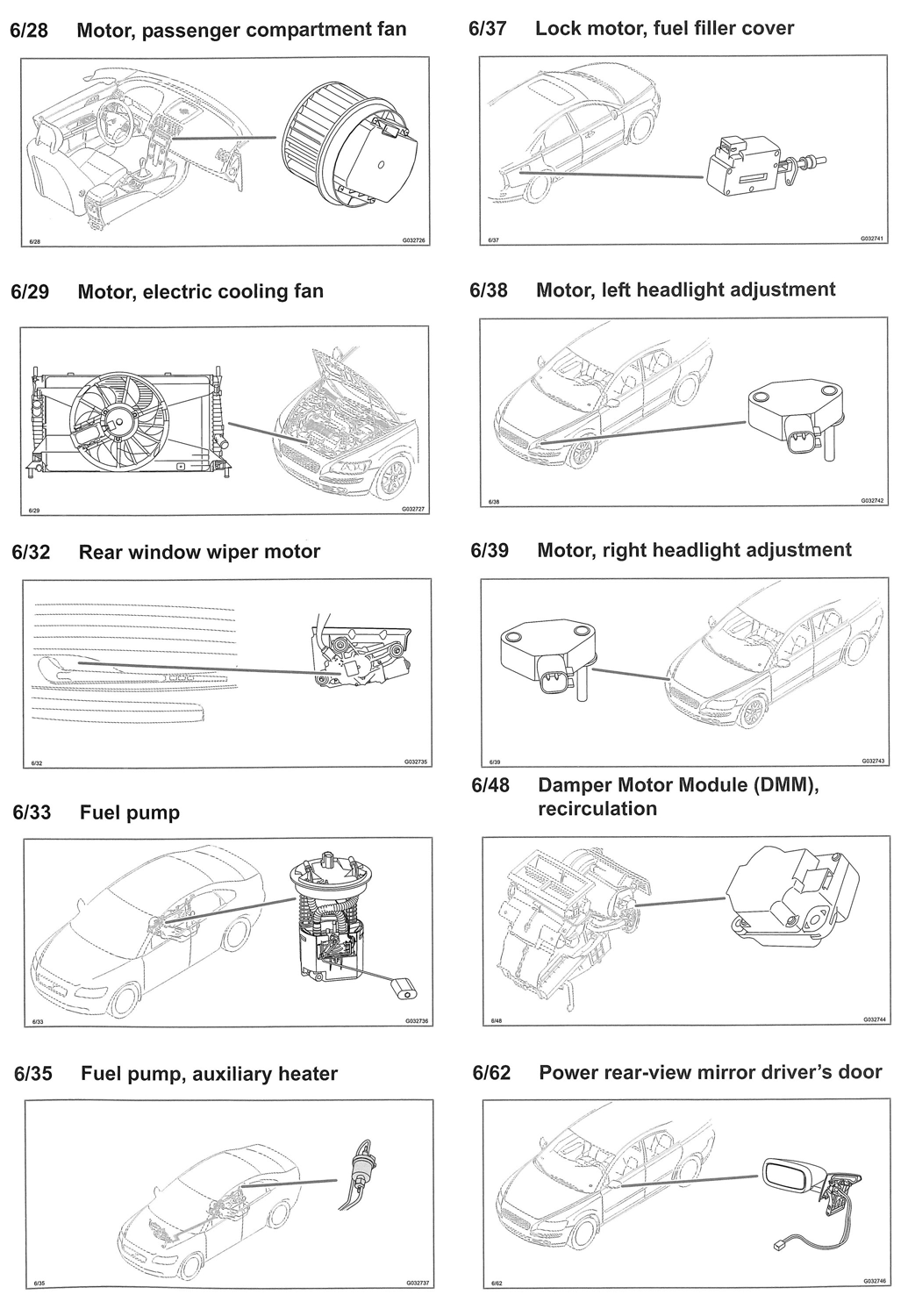

Fig 30: Components 6/28 To 6/62
Courtesy of VOLVO CARS OF NORTH AMERICA.

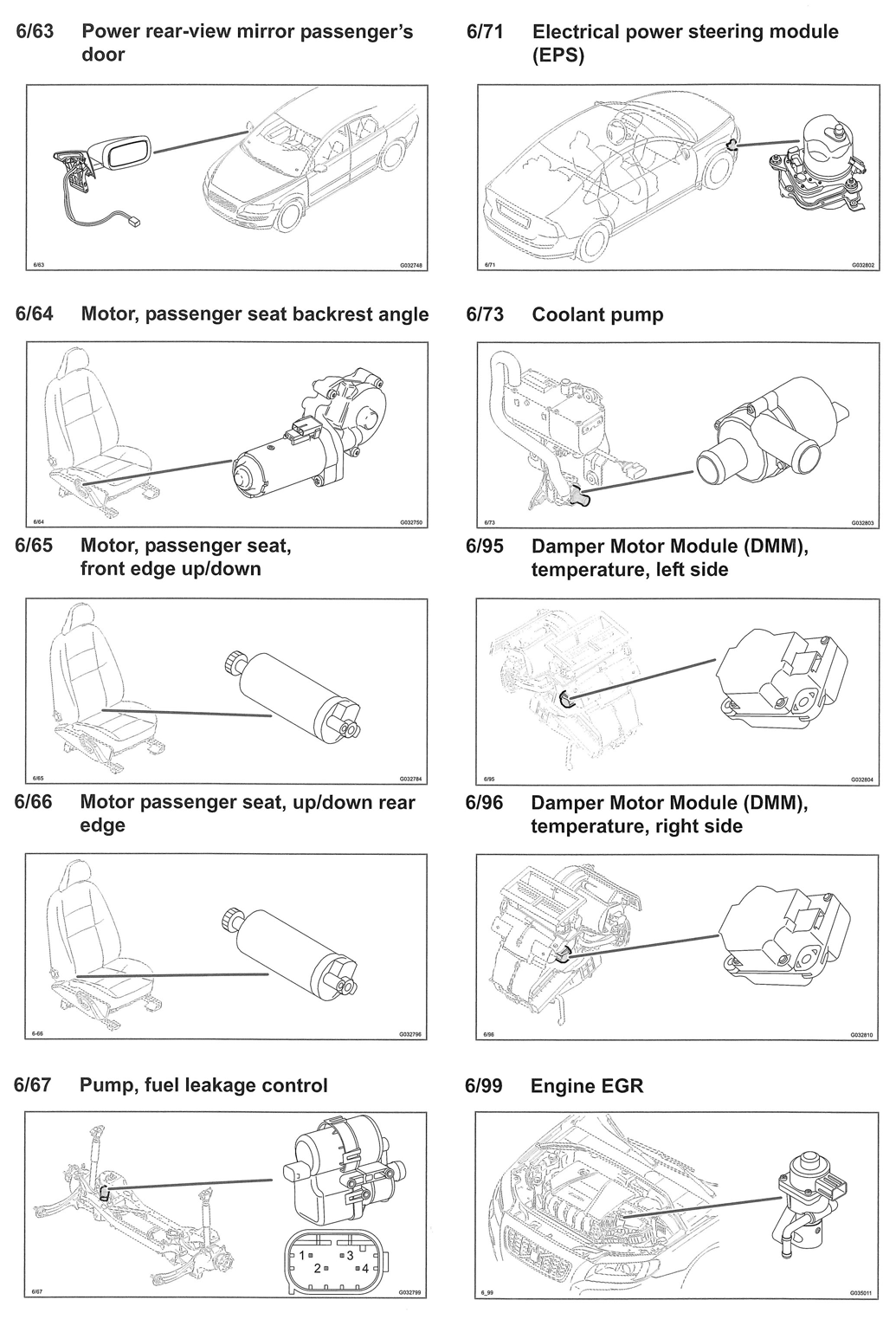

Fig 31: Components 6/63 To 6/99
Courtesy of VOLVO CARS OF NORTH AMERICA.

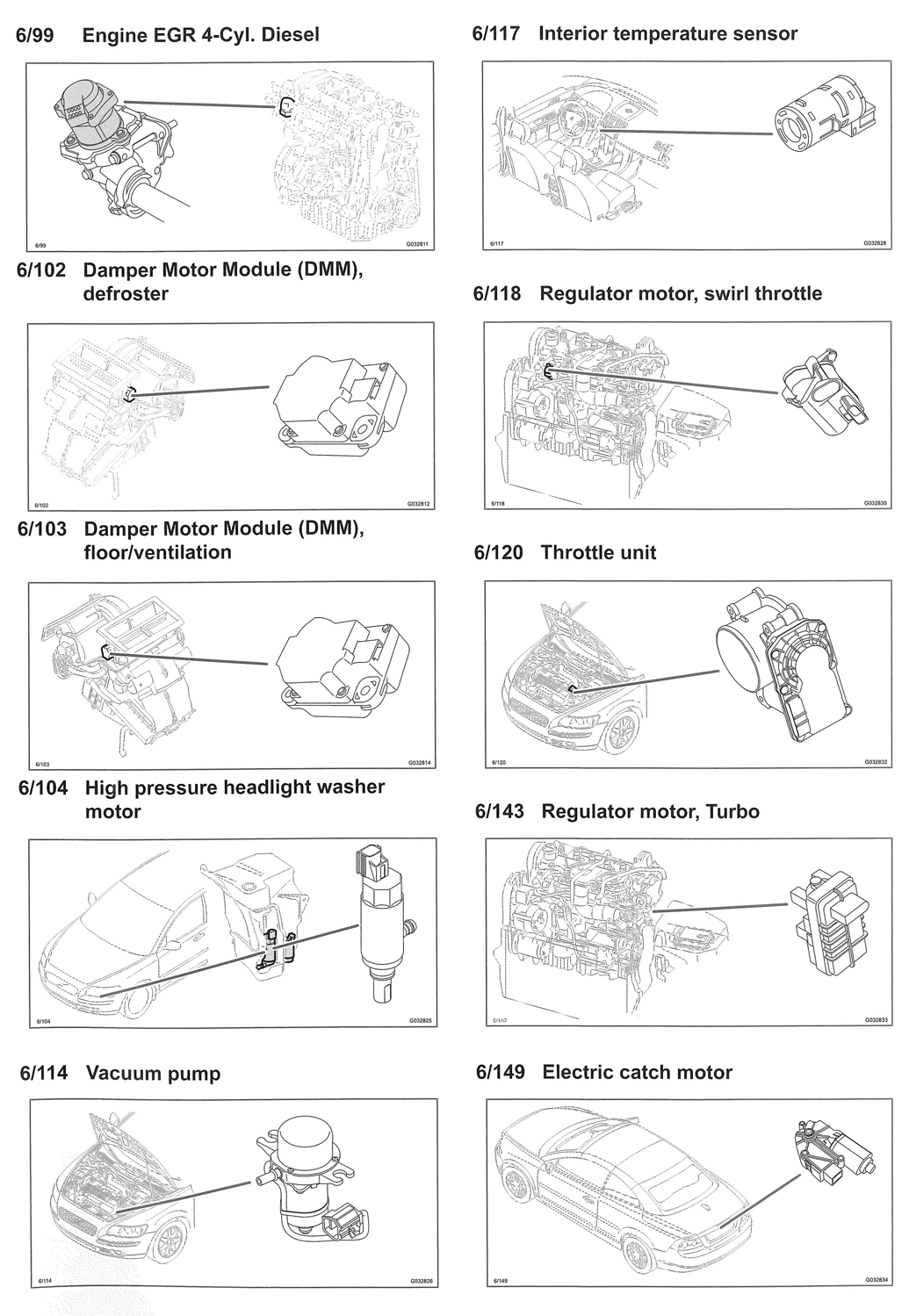

Fig 32: Components 6/99 To 6/149
Courtesy of VOLVO CARS OF NORTH AMERICA.

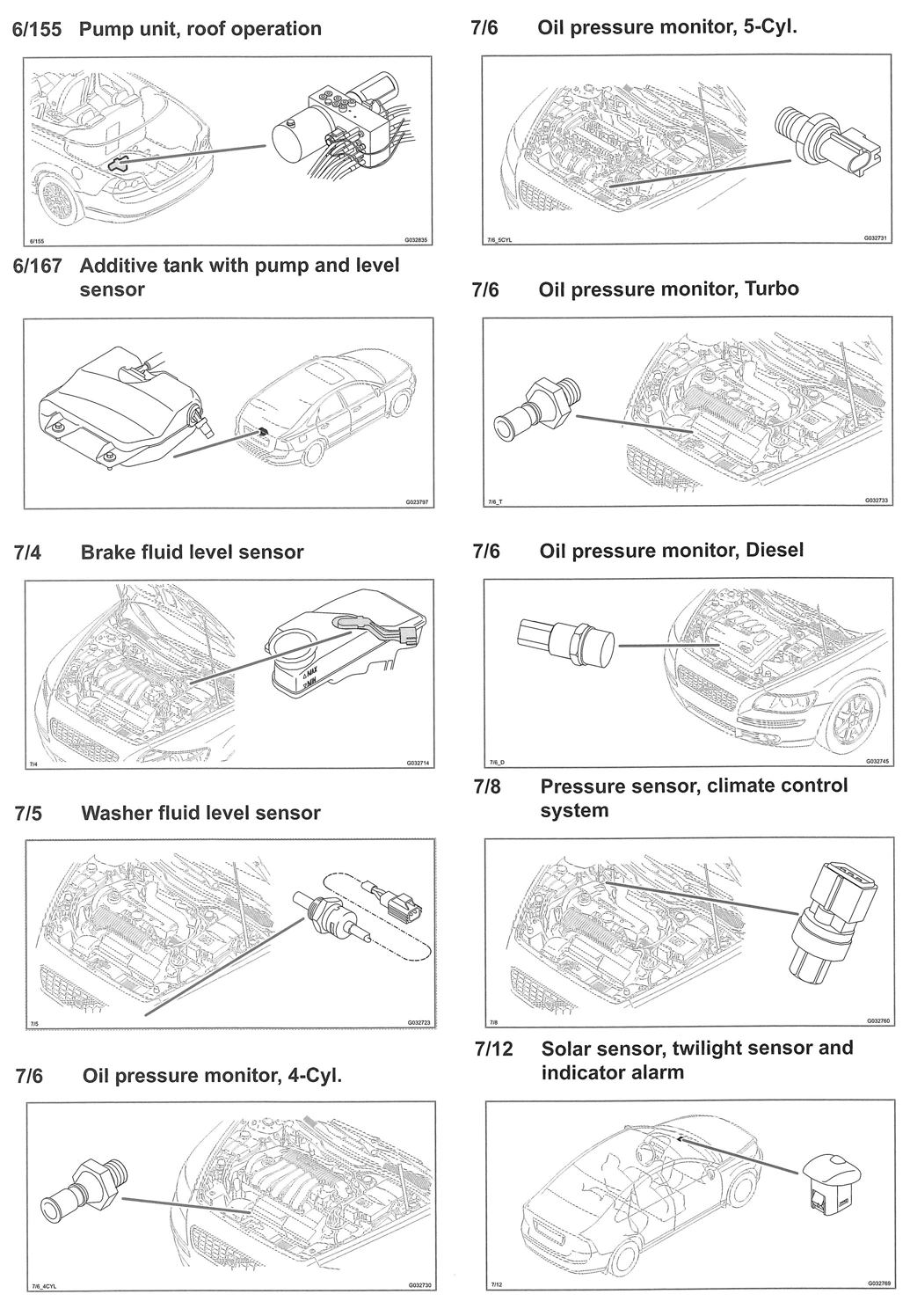

Fig 33: Components 6/155 To 7/12
Courtesy of VOLVO CARS OF NORTH AMERICA.

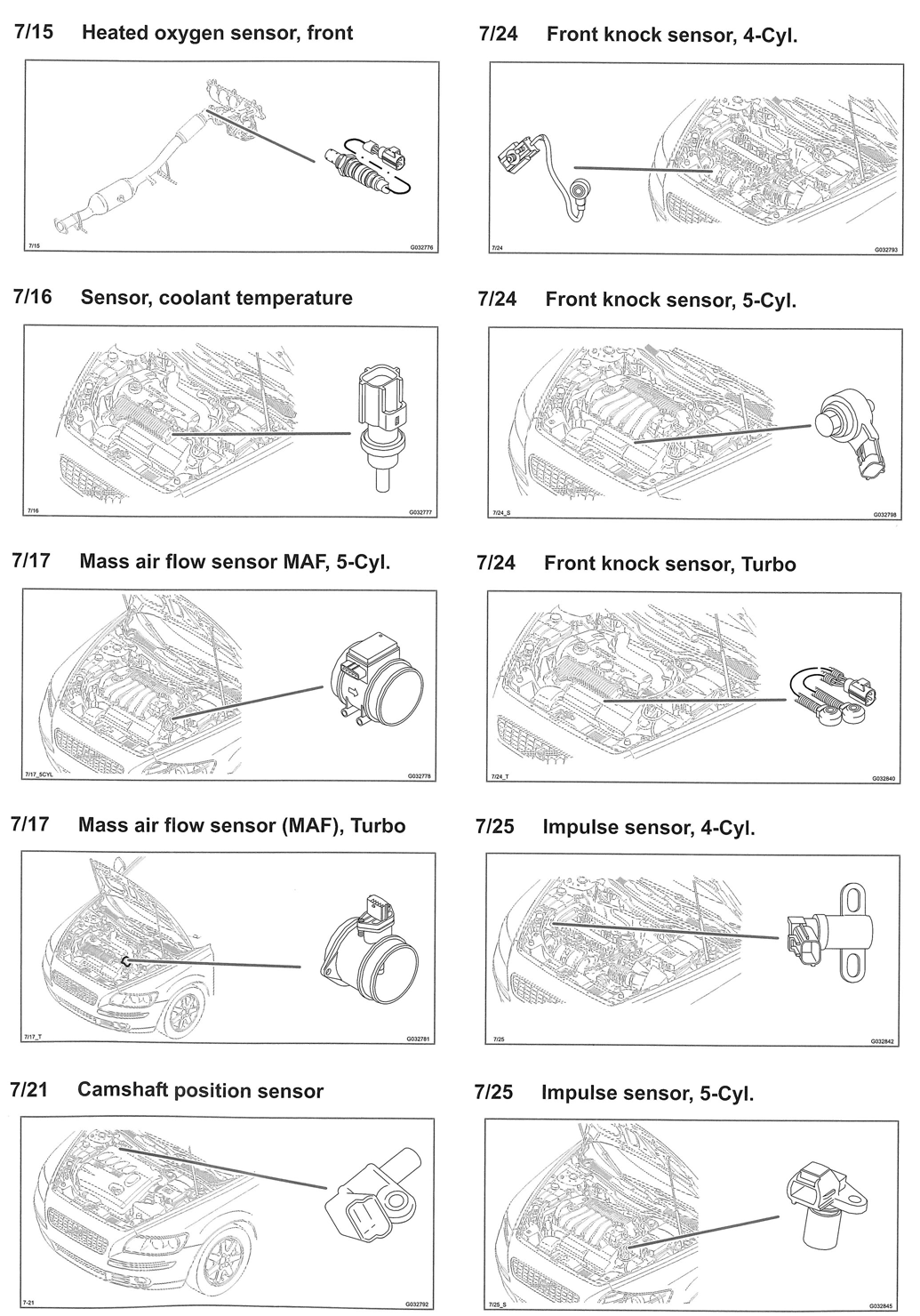

Fig 34: Components 7/15 To 7/25
Courtesy of VOLVO CARS OF NORTH AMERICA.

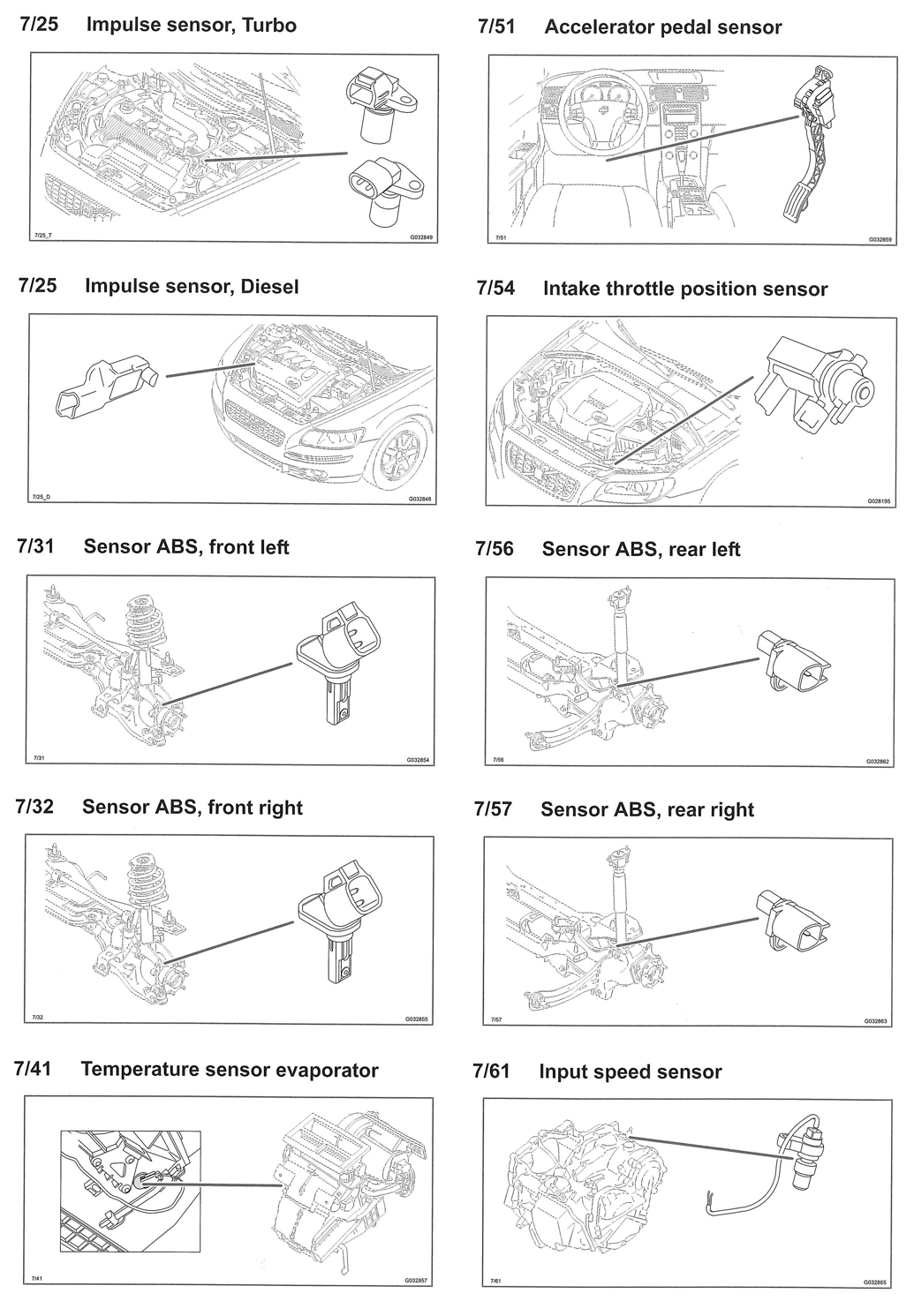

Fig 35: Components 7/25 To 7/61
Courtesy of VOLVO CARS OF NORTH AMERICA.

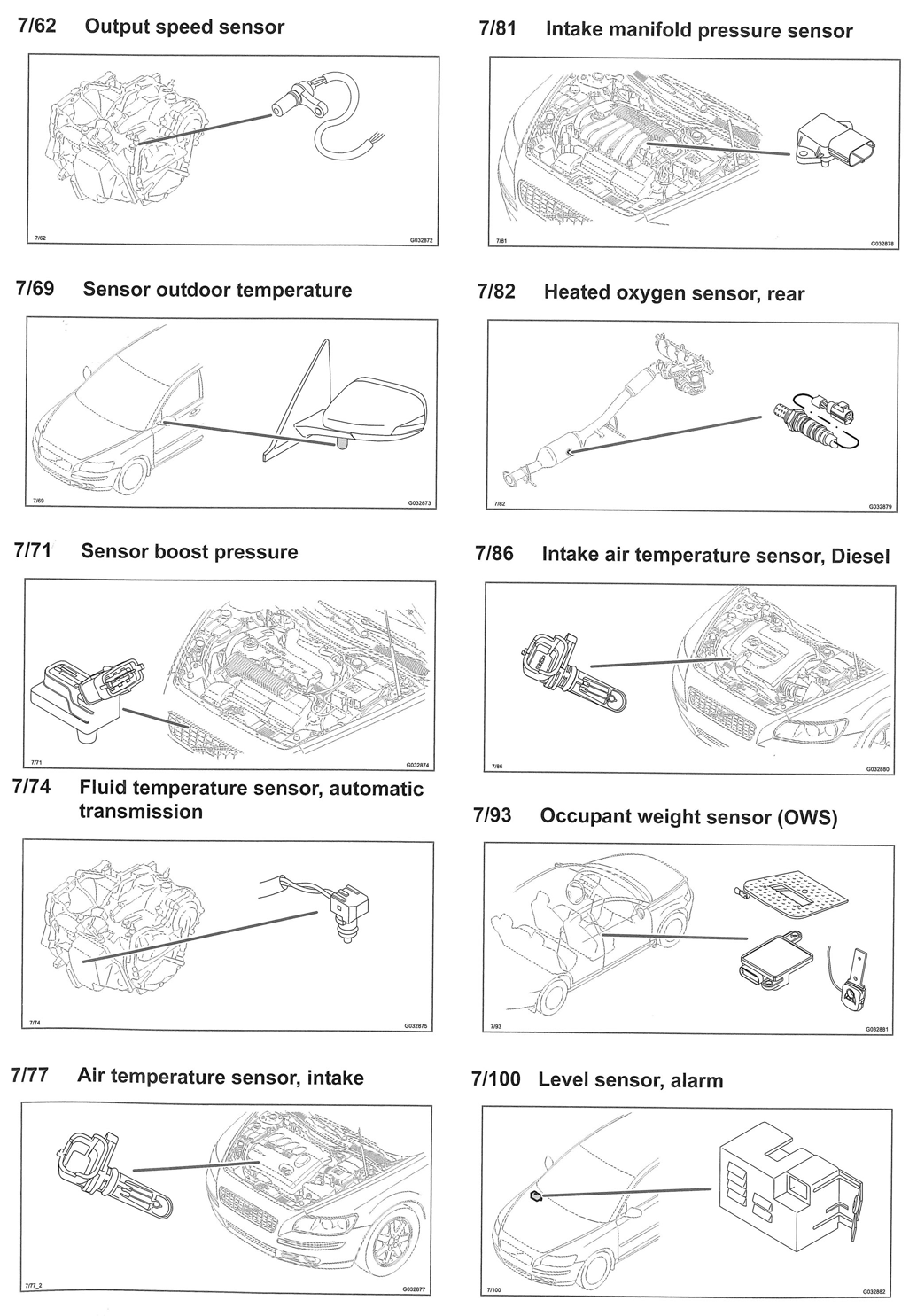

Fig 36: Components 7/62 To 7/100
Courtesy of VOLVO CARS OF NORTH AMERICA.

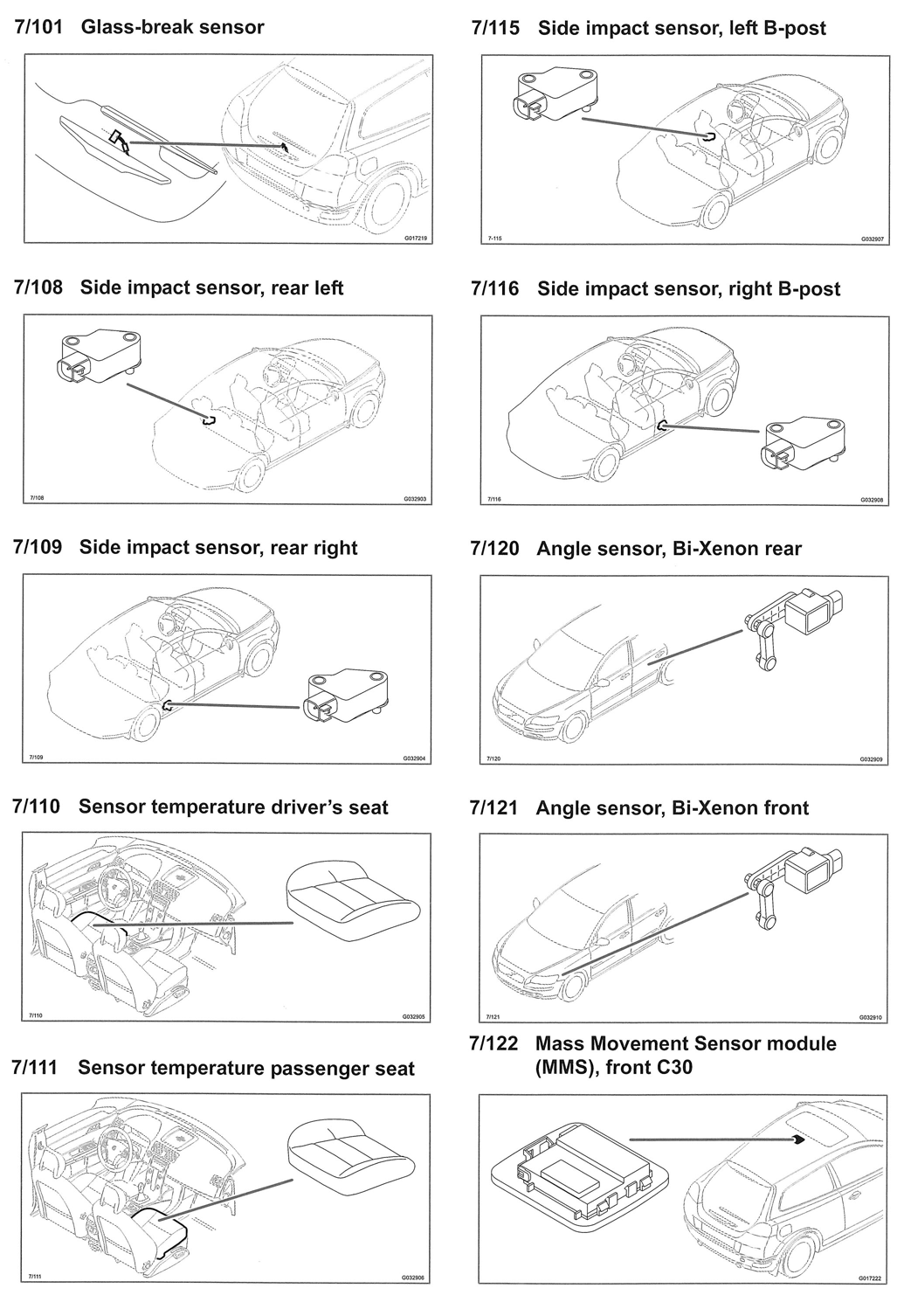

Fig 37: Components 7/101 To 7/122
Courtesy of VOLVO CARS OF NORTH AMERICA.

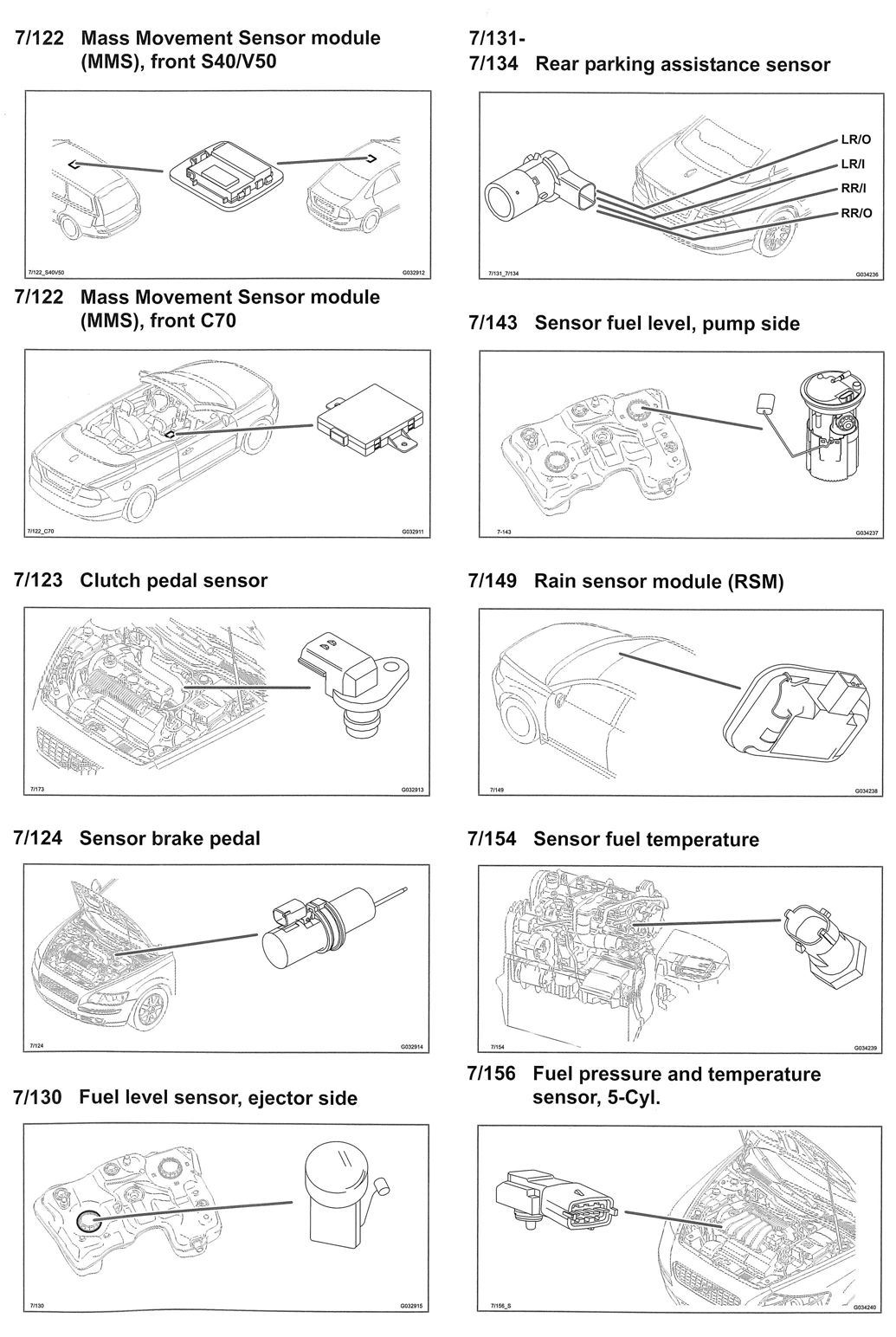

Fig 38: Components 7/122 To 7/156
Courtesy of VOLVO CARS OF NORTH AMERICA.

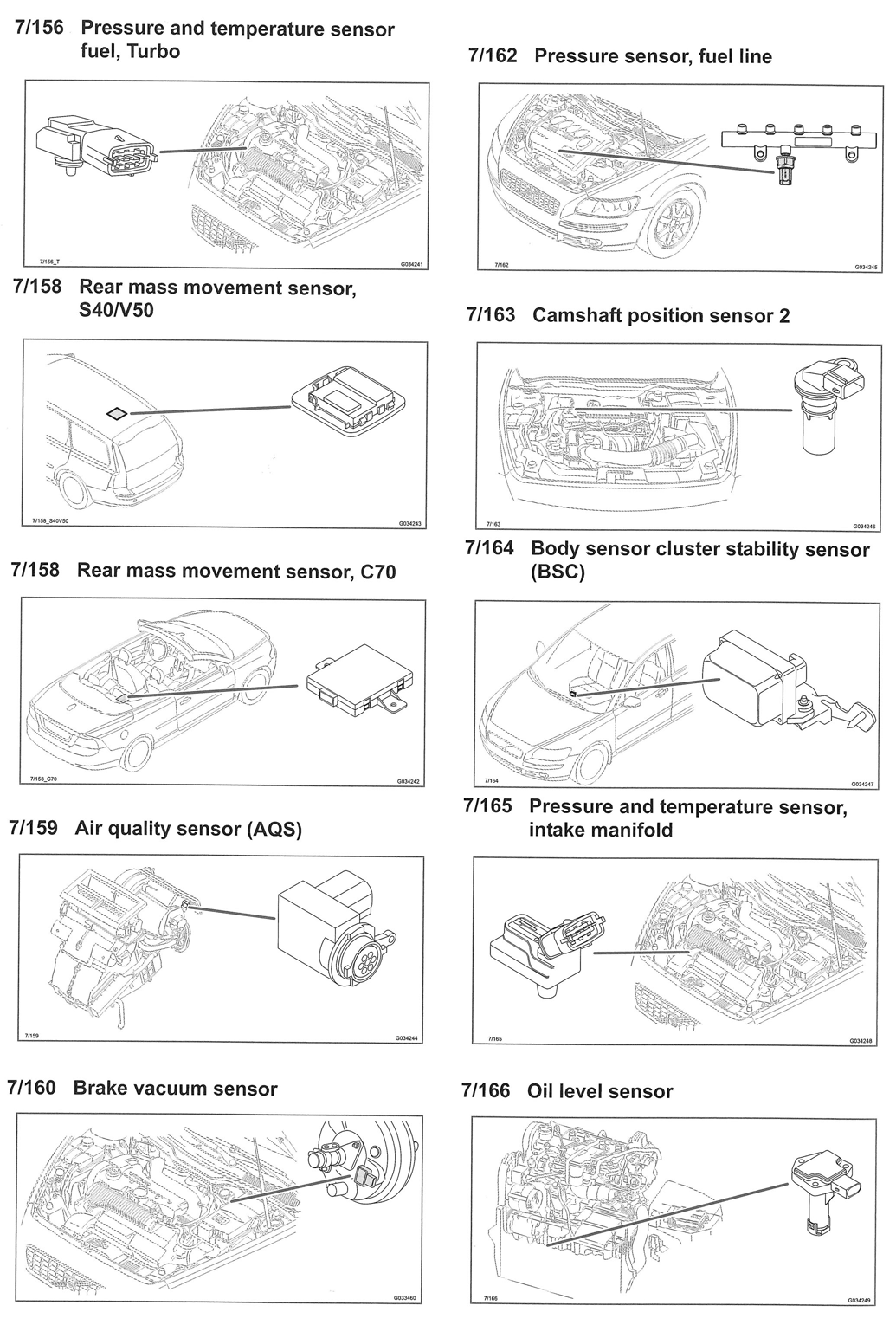

Fig 39: Components 7/156 To 7/166
Courtesy of VOLVO CARS OF NORTH AMERICA.

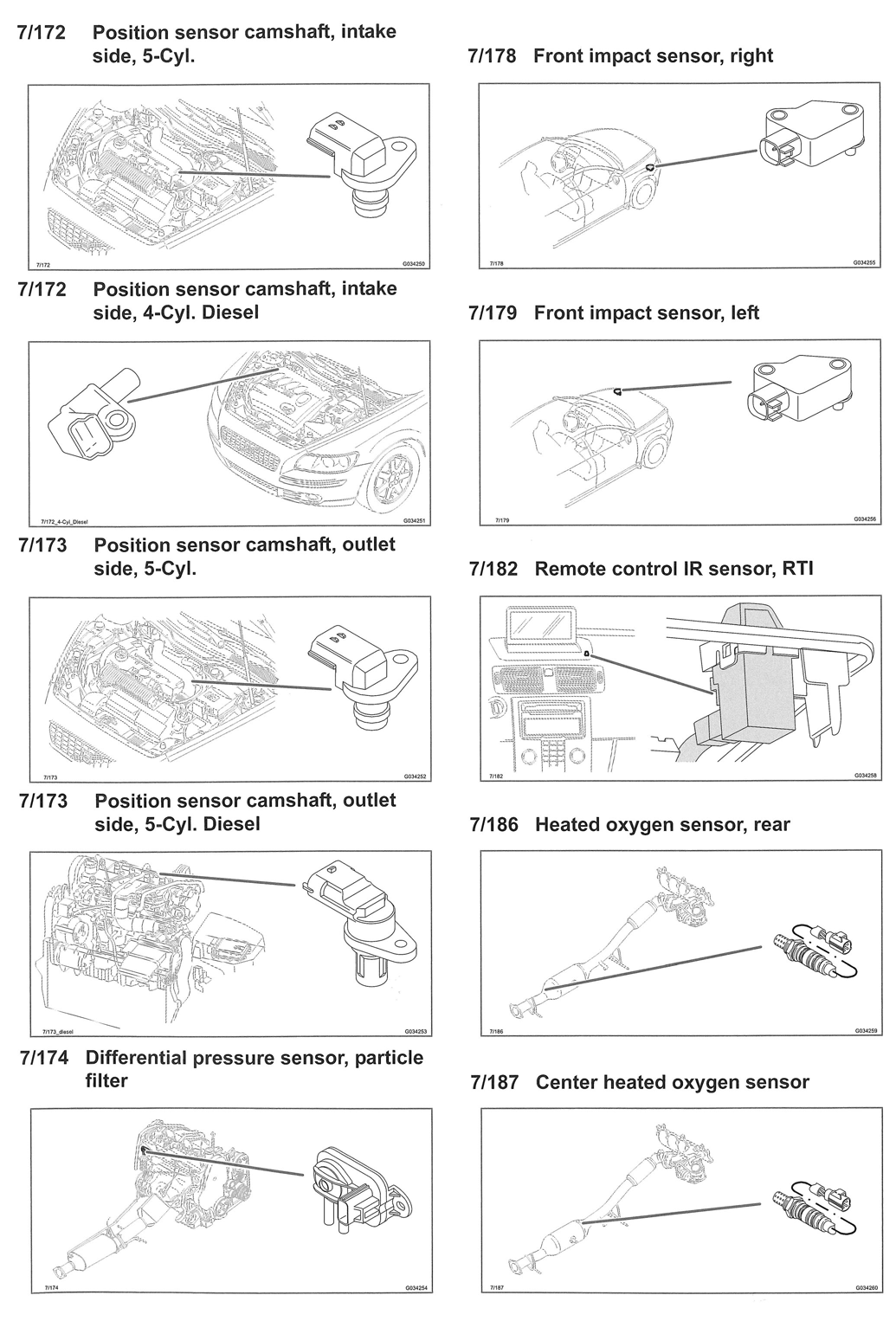

Fig 40: Components 7/172 To 7/187
Courtesy of VOLVO CARS OF NORTH AMERICA.

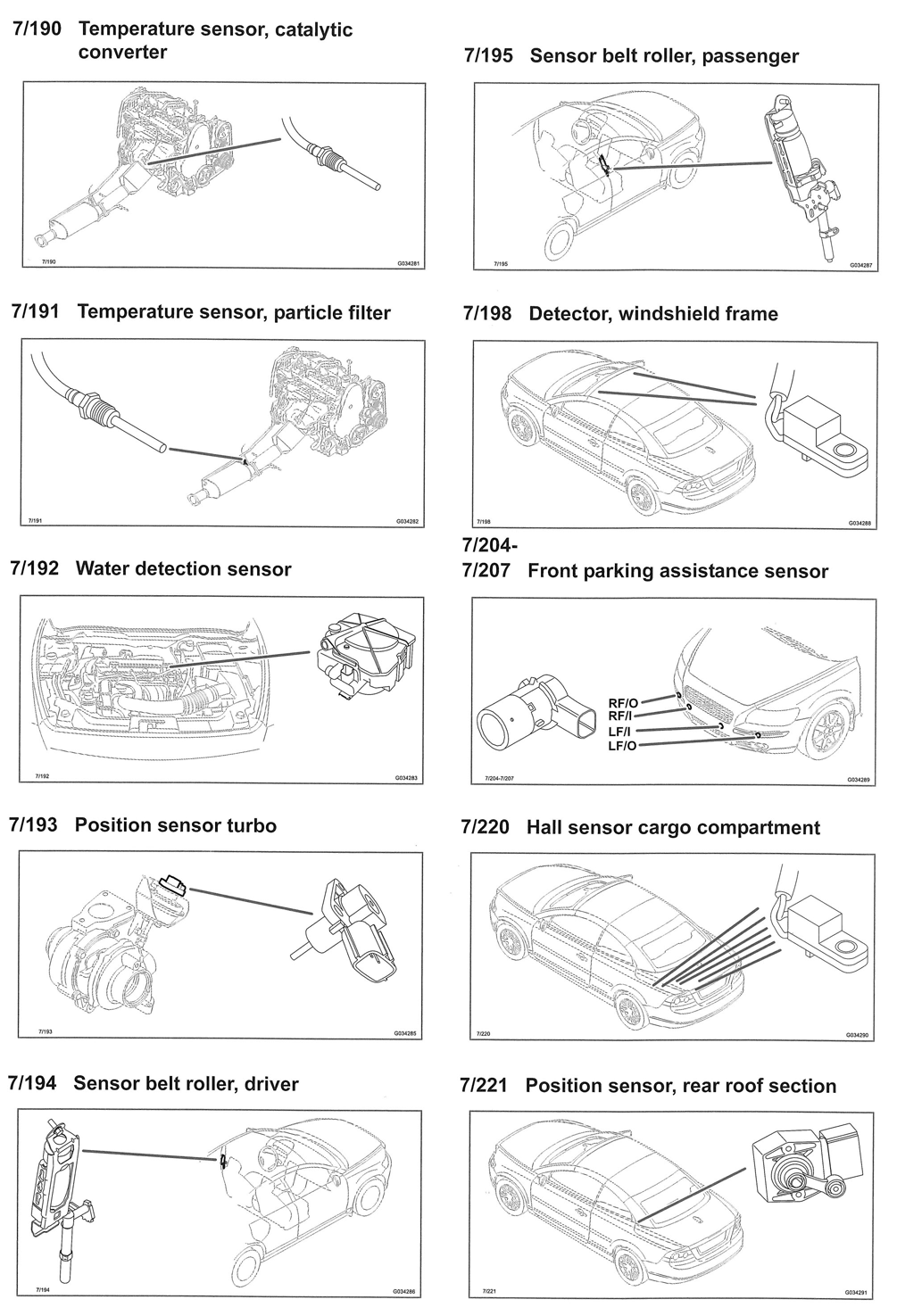

Fig 41: Components 7/190 To 7/221
Courtesy of VOLVO CARS OF NORTH AMERICA.

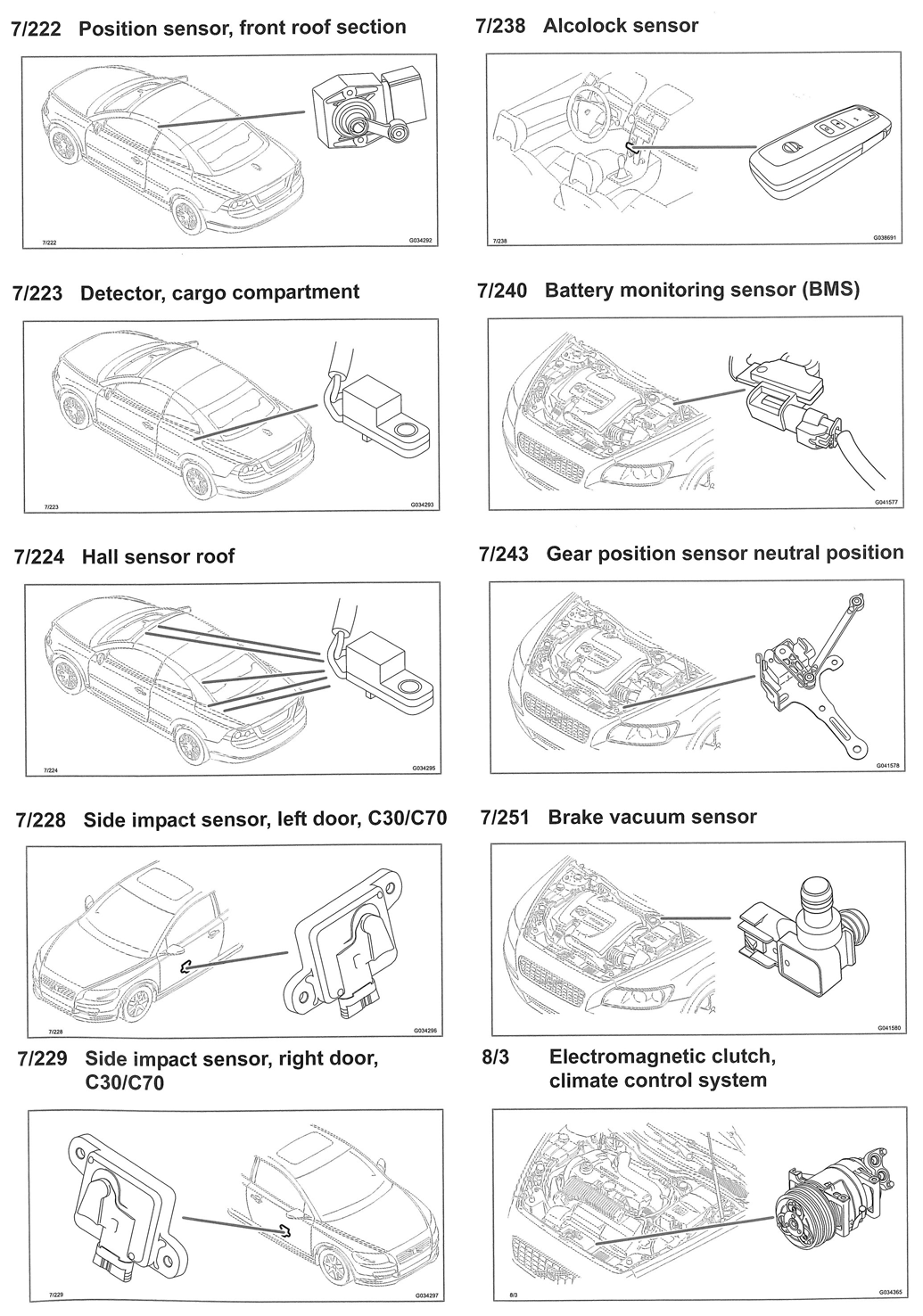

Fig 42: Components 7/222 To 8/3
Courtesy of VOLVO CARS OF NORTH AMERICA.

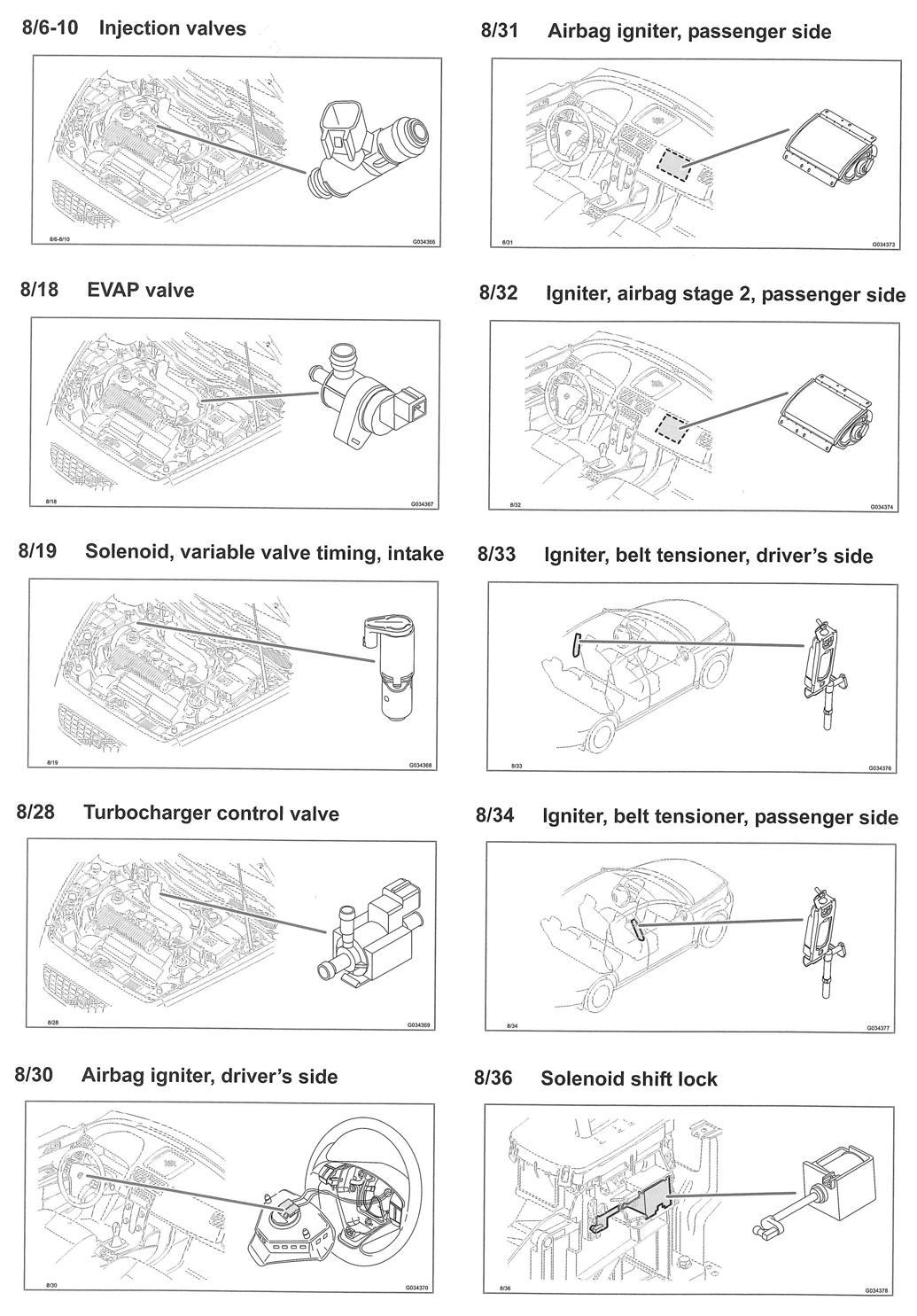

Fig 43: Components 8/6-10 To 8/36
Courtesy of VOLVO CARS OF NORTH AMERICA.

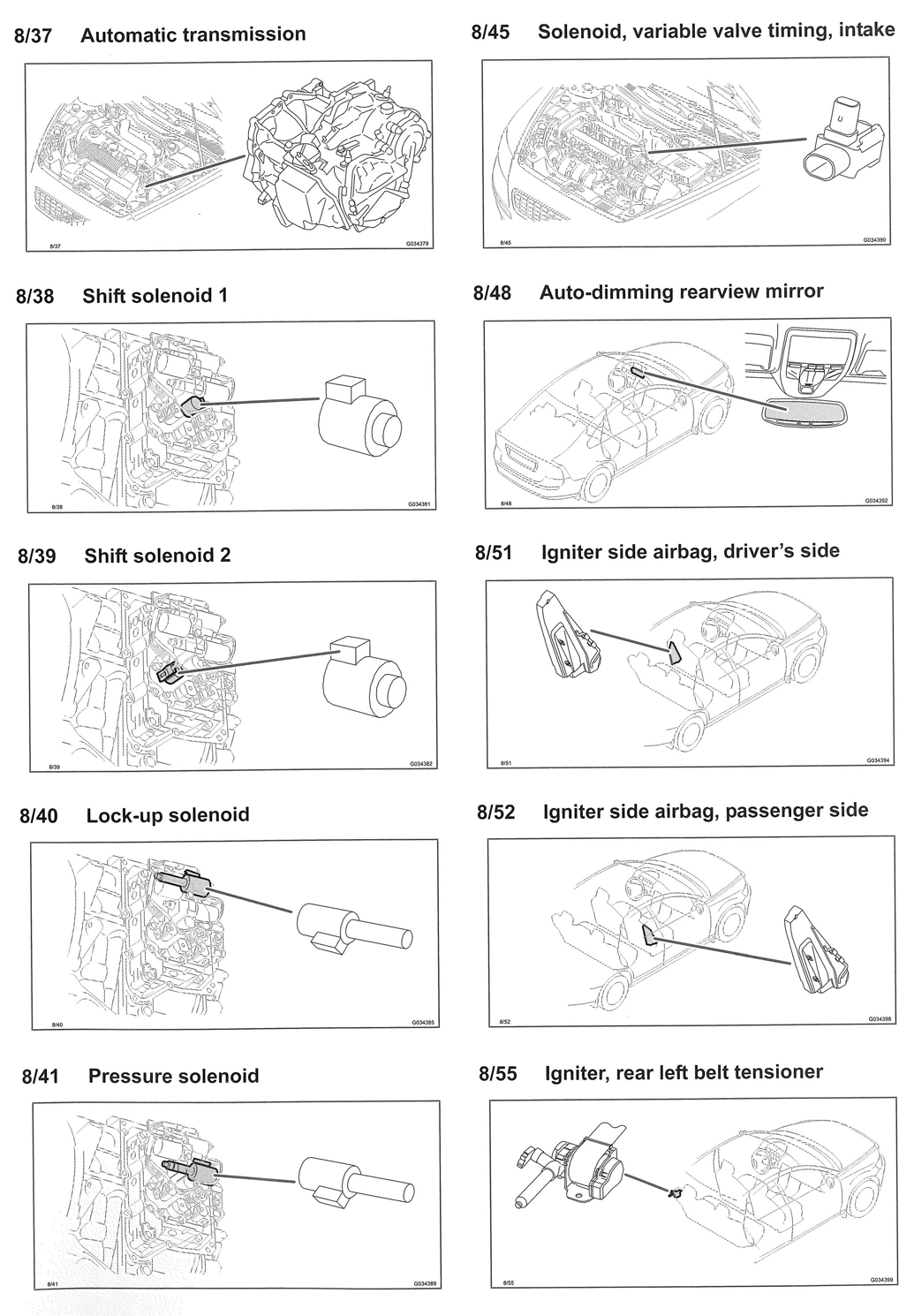

Fig 44: Components 8/37 To 8/55
Courtesy of VOLVO CARS OF NORTH AMERICA.

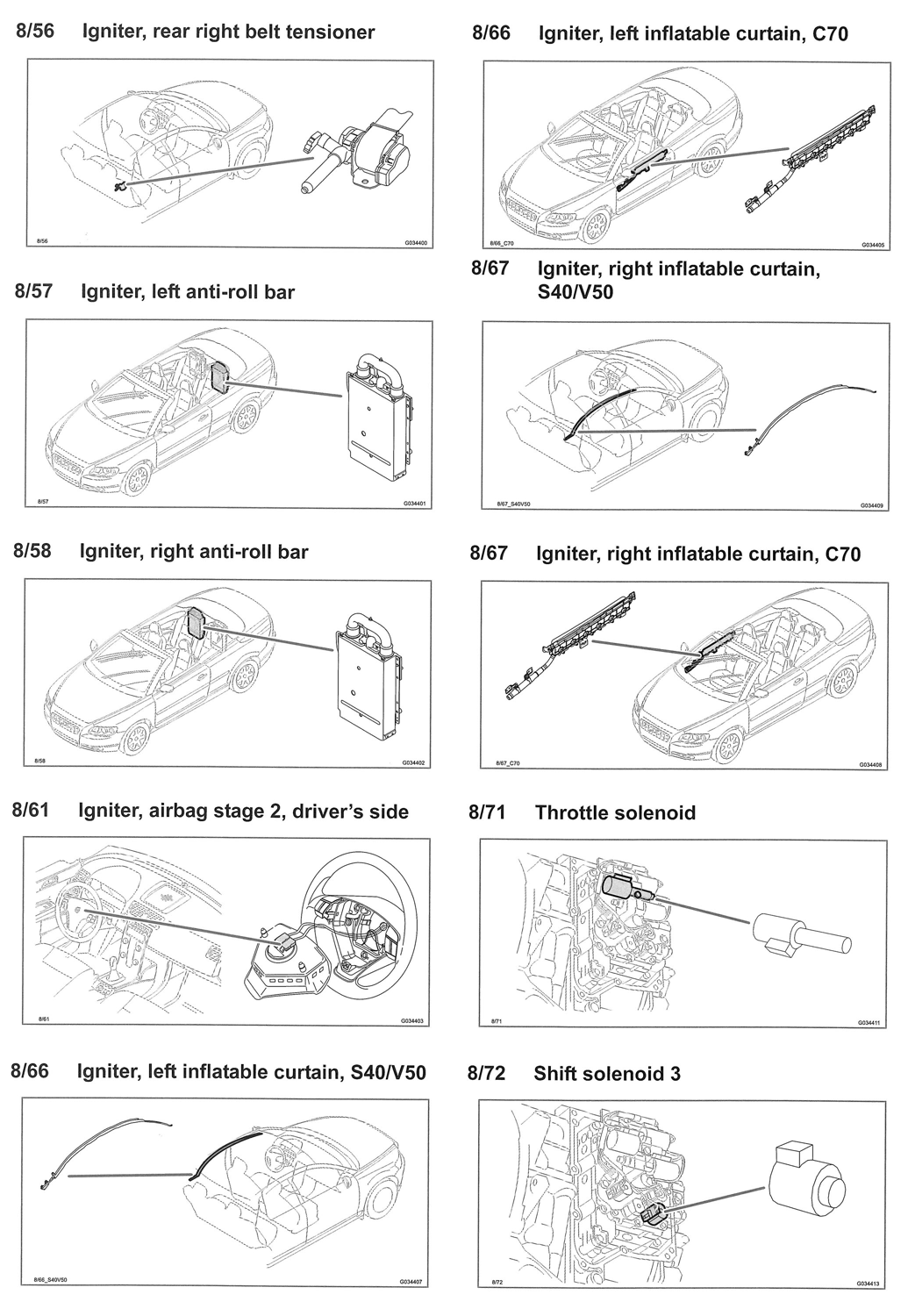

Fig 45: Components 8/56 To 8/72
Courtesy of VOLVO CARS OF NORTH AMERICA.

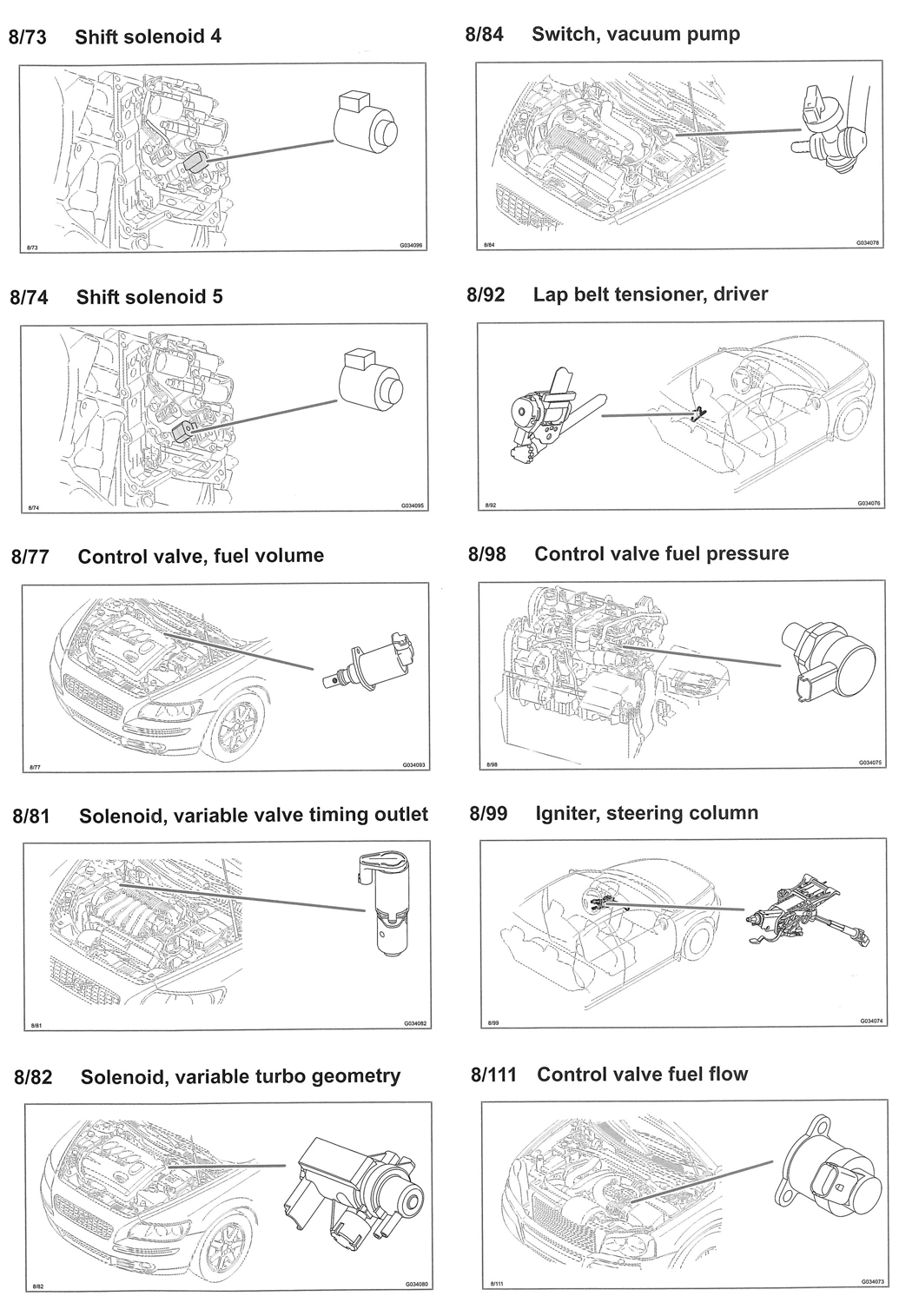

Fig 46: Components 8/73 To 8/111
Courtesy of VOLVO CARS OF NORTH AMERICA.

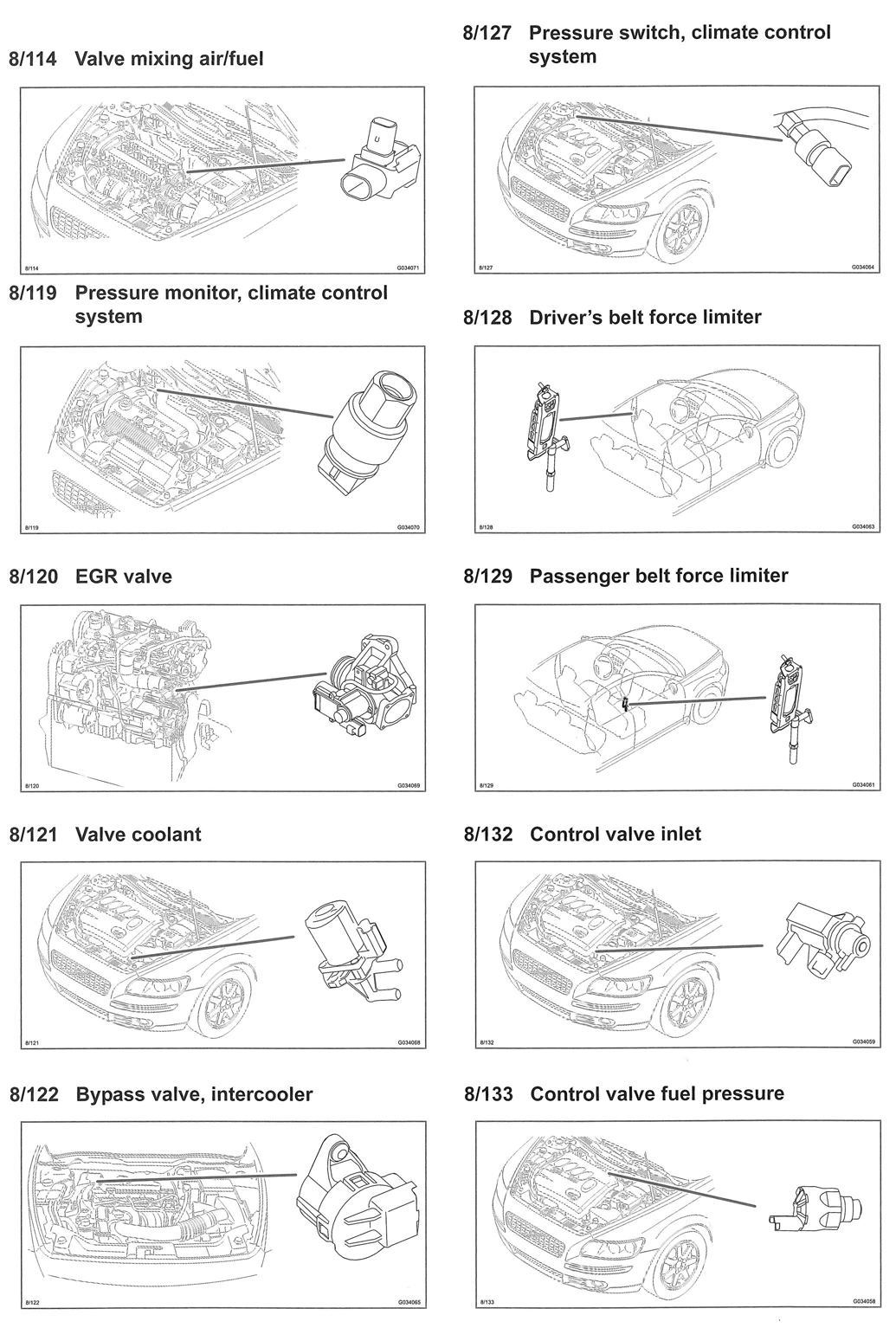

Fig 47: Components 8/114 To 8/133
Courtesy of VOLVO CARS OF NORTH AMERICA.

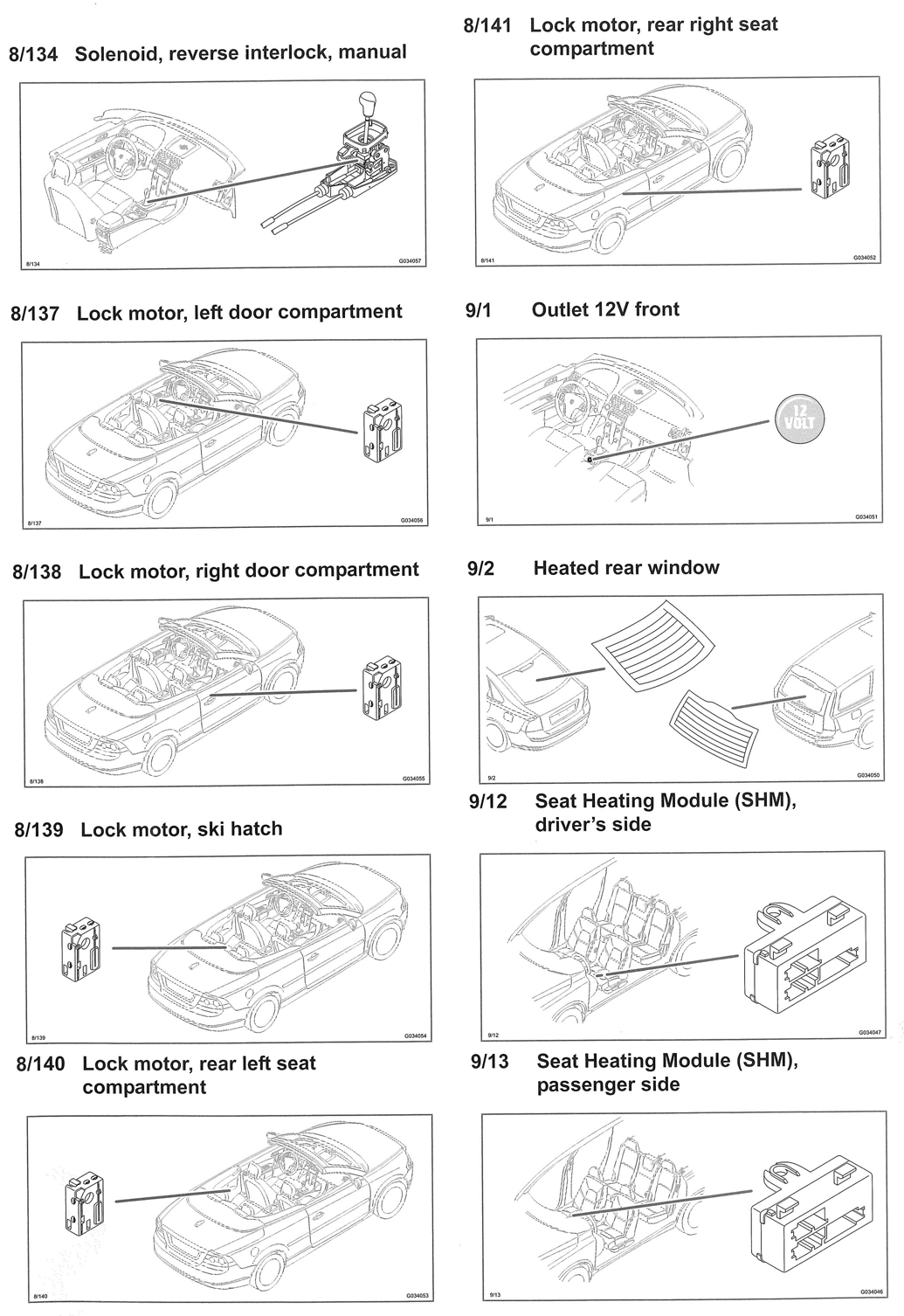

Fig 48: Components 8/134 To 9/13
Courtesy of VOLVO CARS OF NORTH AMERICA.

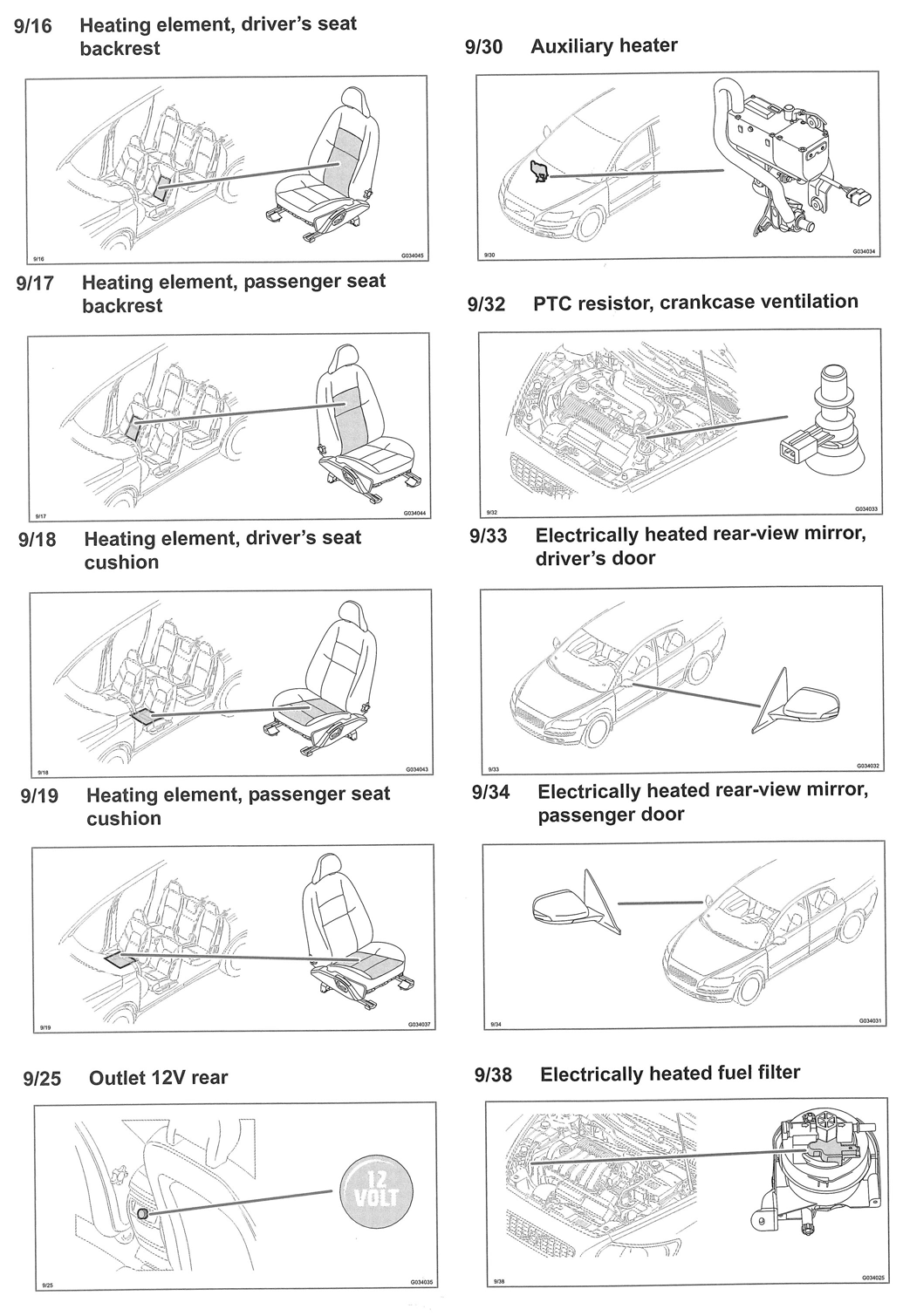

Fig 49: Components 9/16 To 9/38
Courtesy of VOLVO CARS OF NORTH AMERICA.

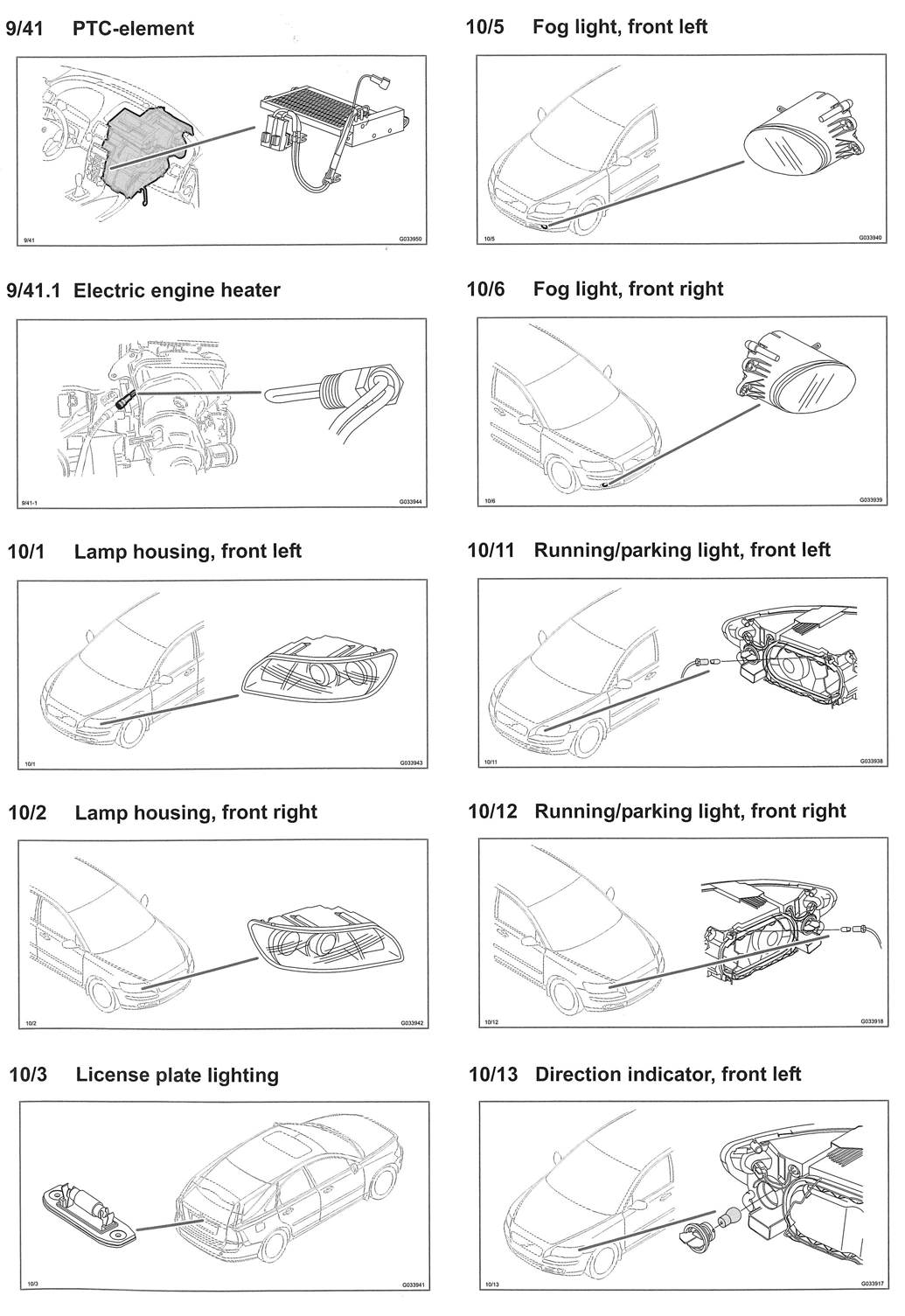

Fig 50: Components 9/41 To 10/13
Courtesy of VOLVO CARS OF NORTH AMERICA.

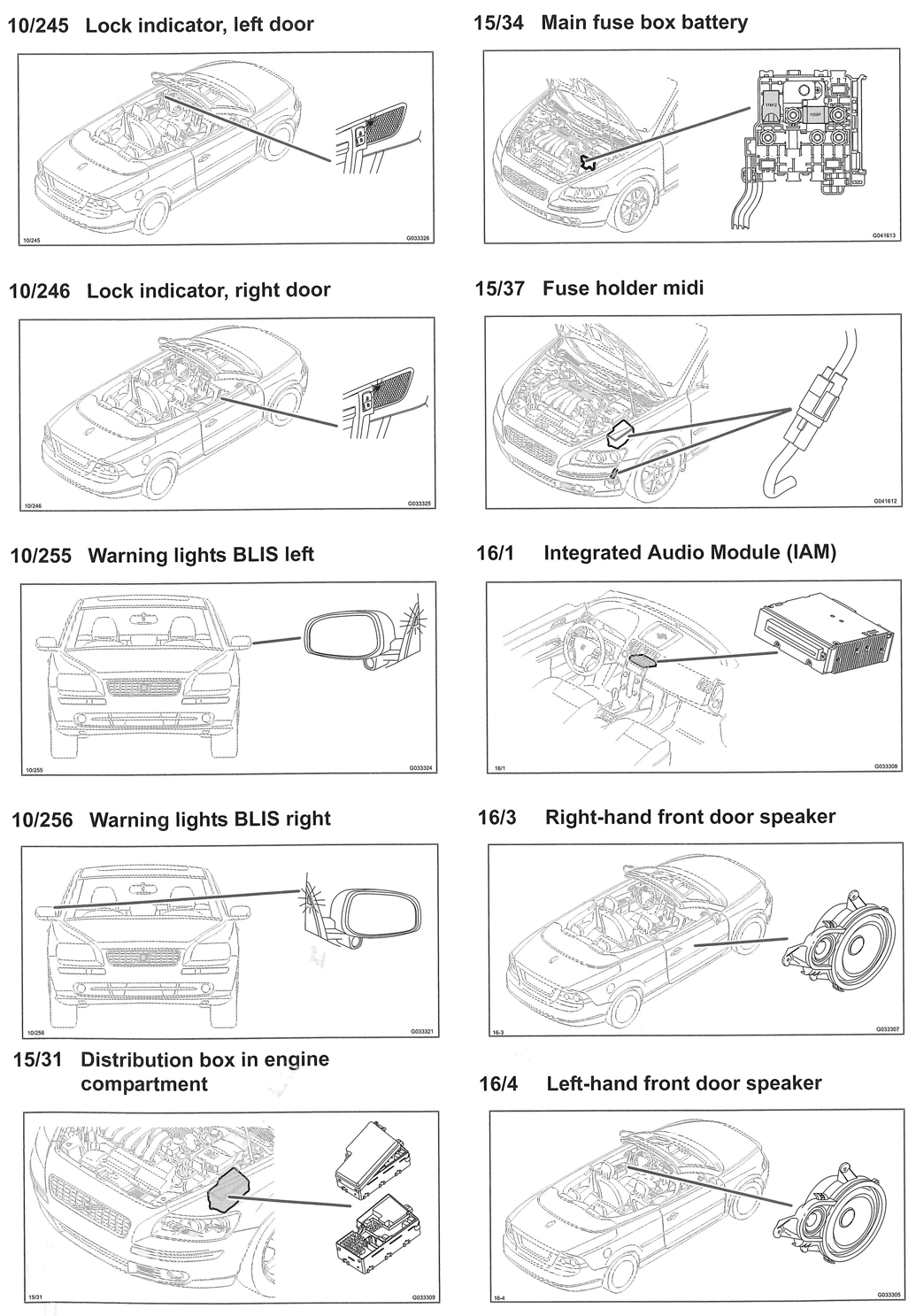

Fig 51: Components 10/245 To 16/4
Courtesy of VOLVO CARS OF NORTH AMERICA.

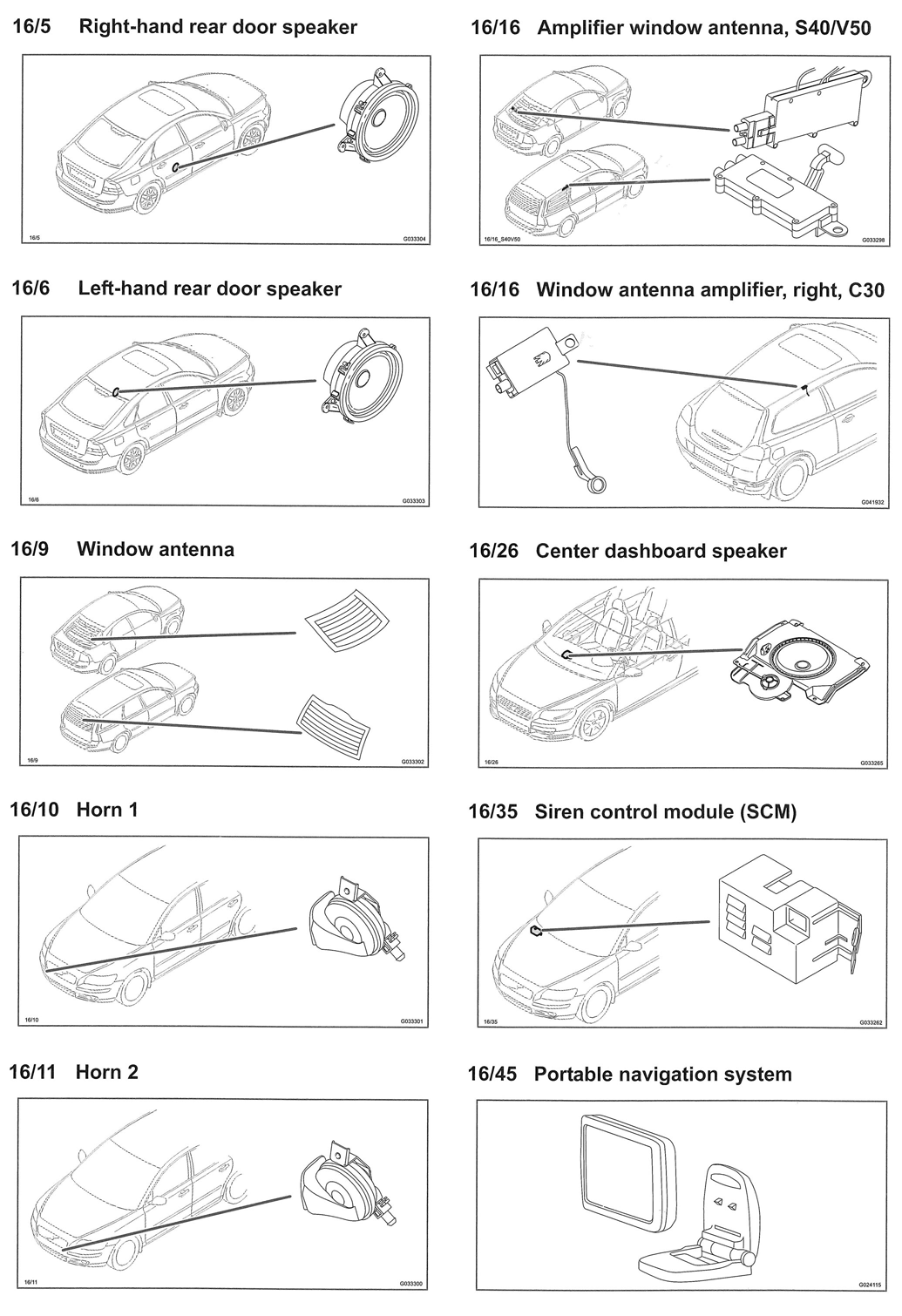

Fig 52: Components 16/5 To 16/45
Courtesy of VOLVO CARS OF NORTH AMERICA.

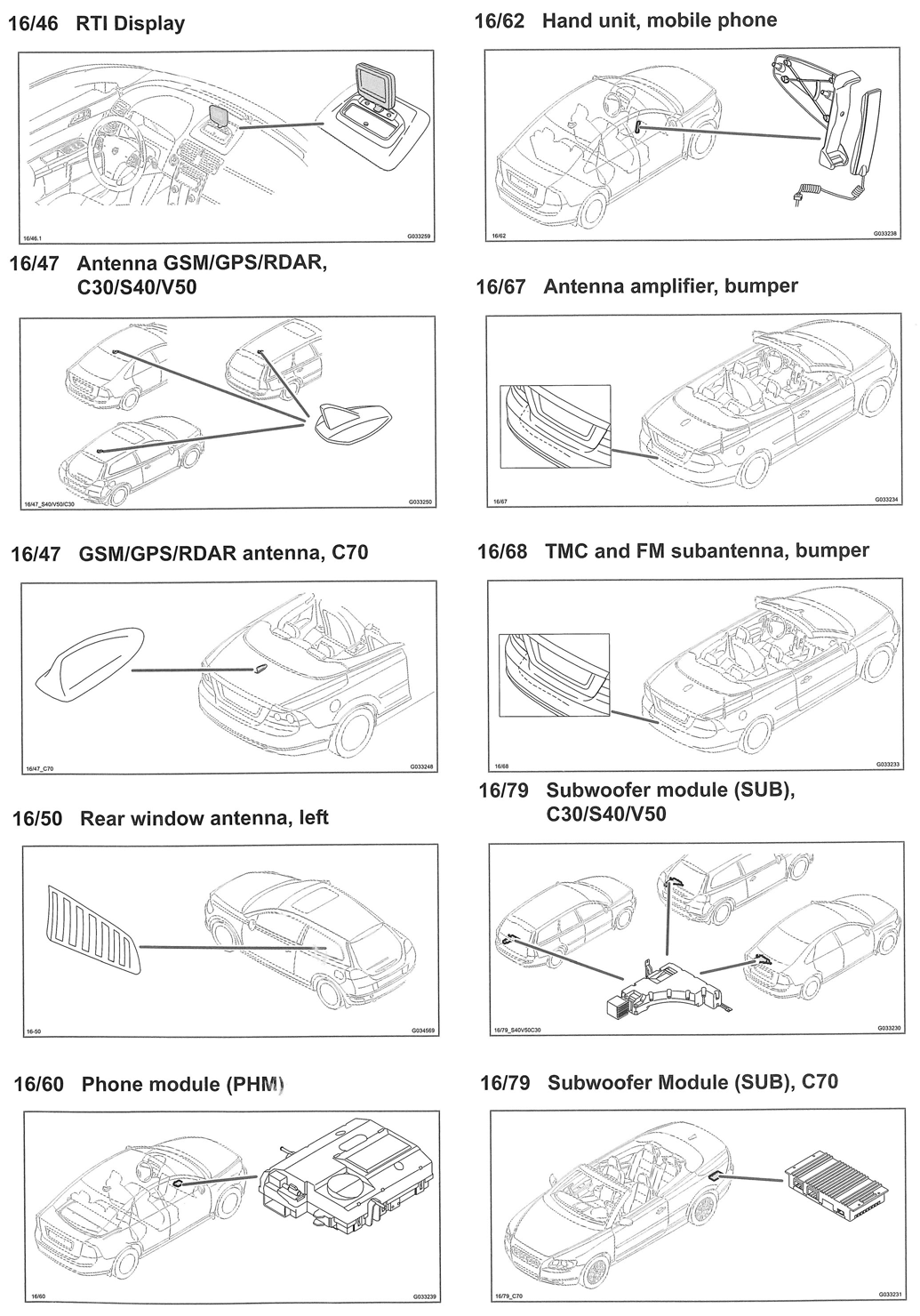

Fig 53: Components 16/46 To 16/79
Courtesy of VOLVO CARS OF NORTH AMERICA.

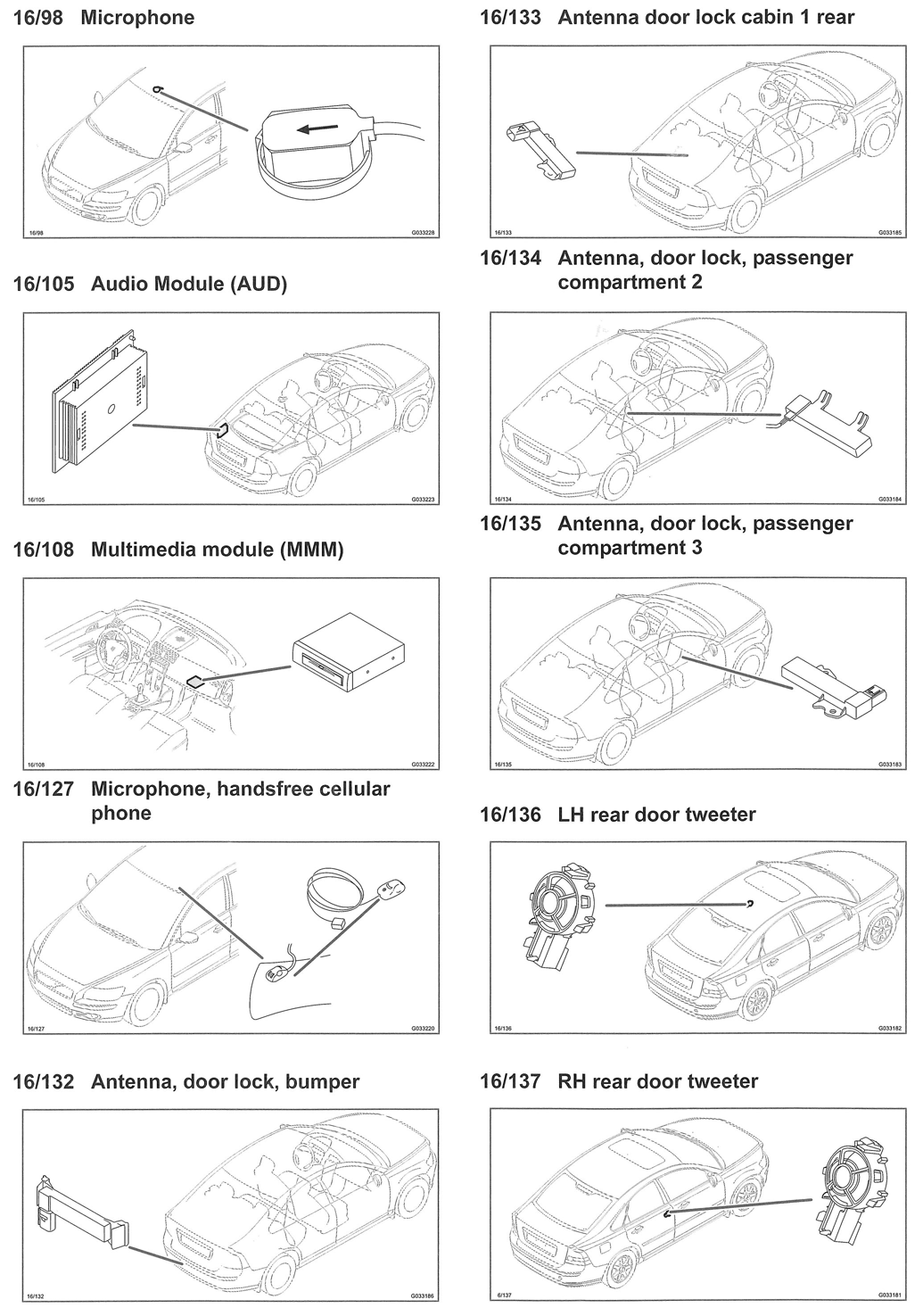

Fig 54: Components 16/98 To 16/137
Courtesy of VOLVO CARS OF NORTH AMERICA.

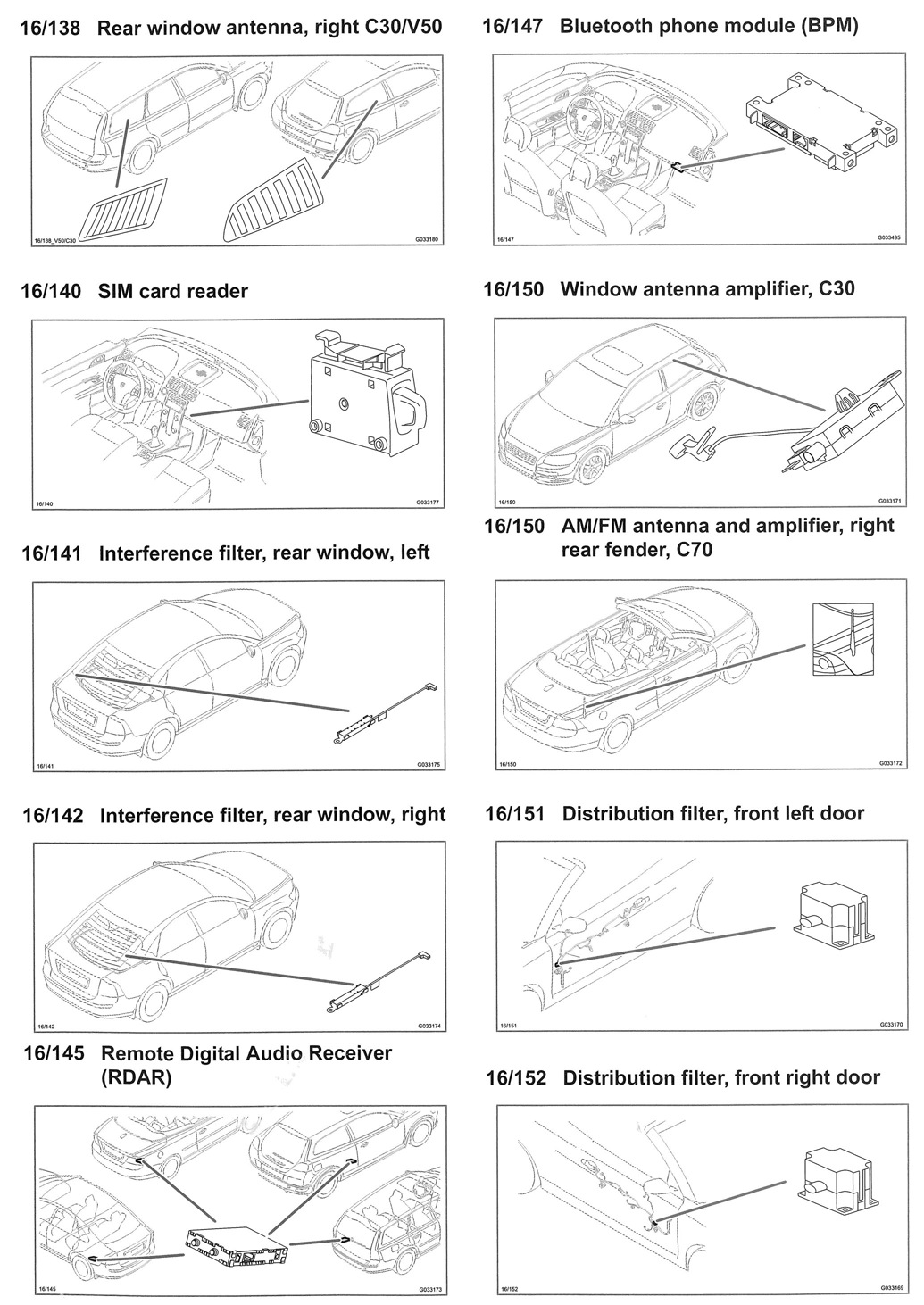

Fig 55: Components 16/138 To 16/152
Courtesy of VOLVO CARS OF NORTH AMERICA.

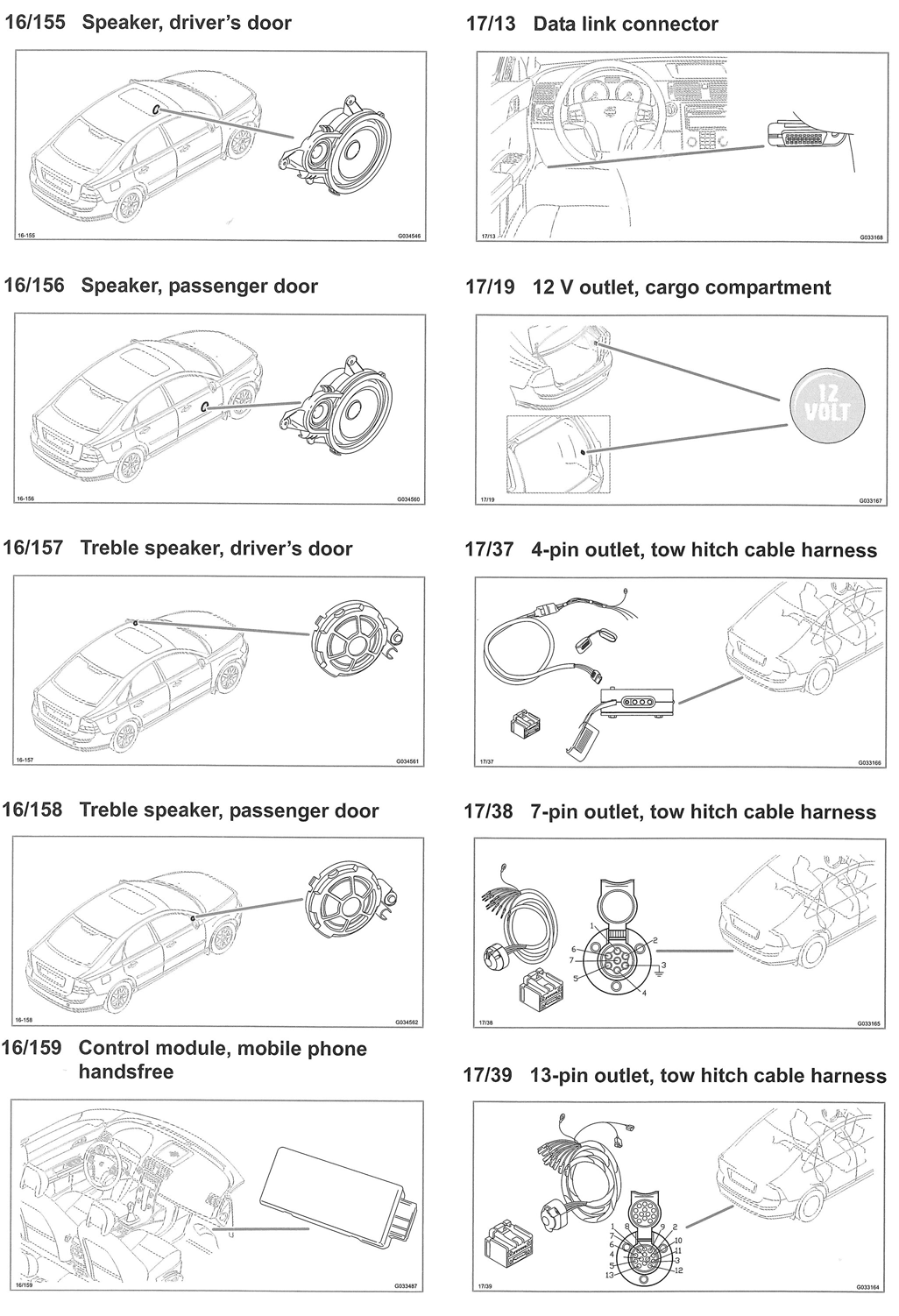

Fig 56: Components 16/155 To 17/39
Courtesy of VOLVO CARS OF NORTH AMERICA.

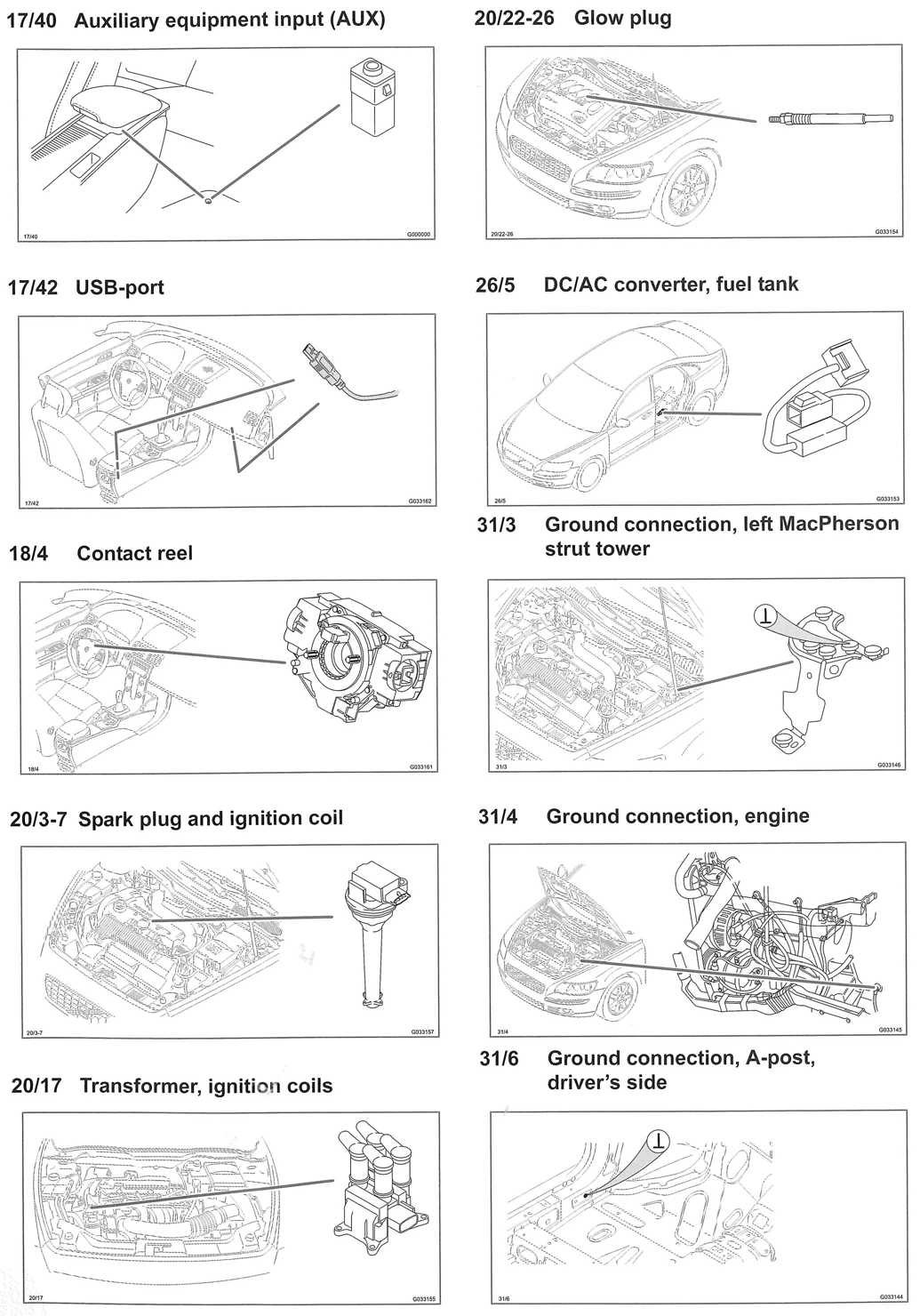

Fig 57: Components 17/40 To 31/6
Courtesy of VOLVO CARS OF NORTH AMERICA.

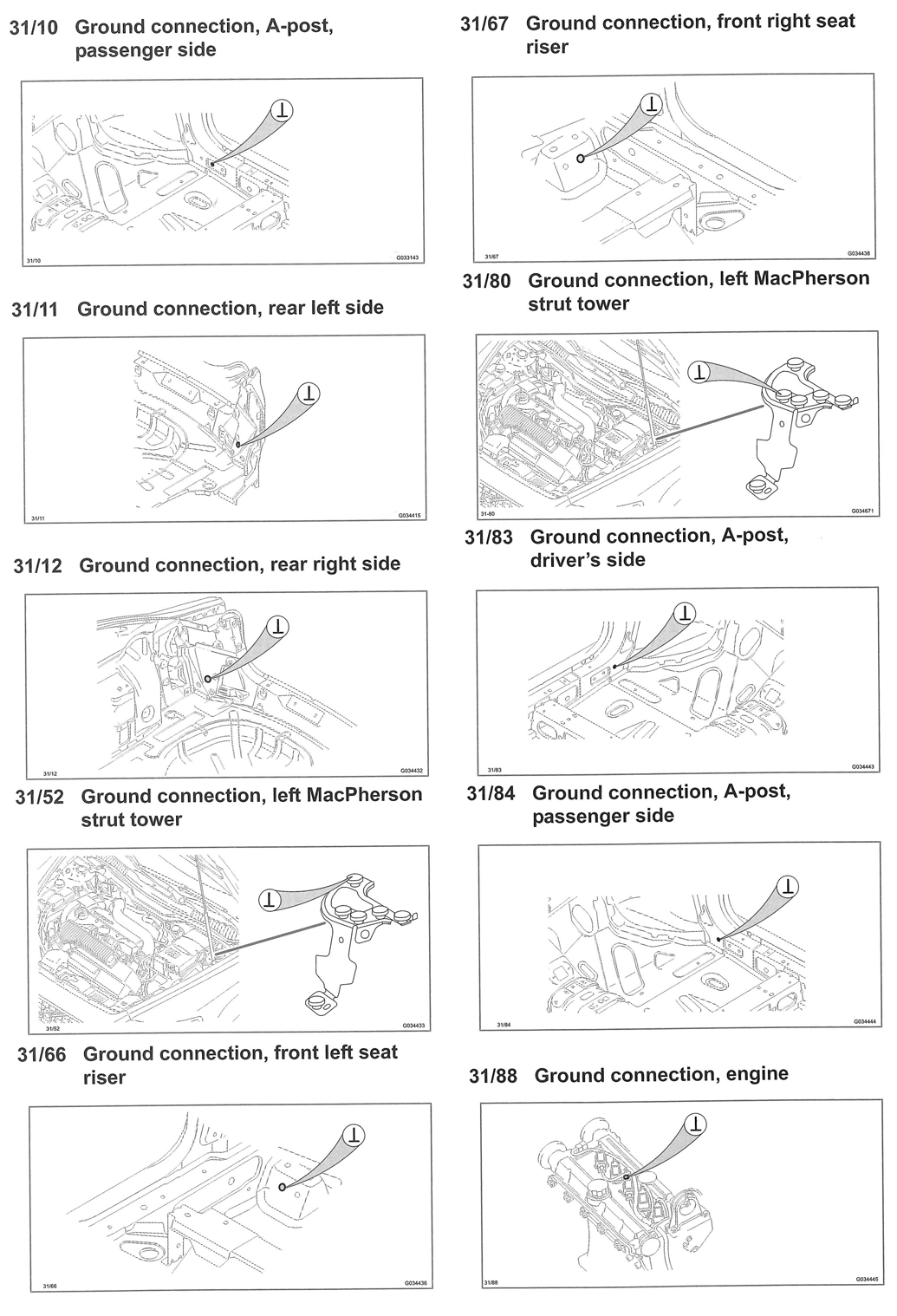

Fig 58: Components 31/10 To 31/88
Courtesy of VOLVO CARS OF NORTH AMERICA.

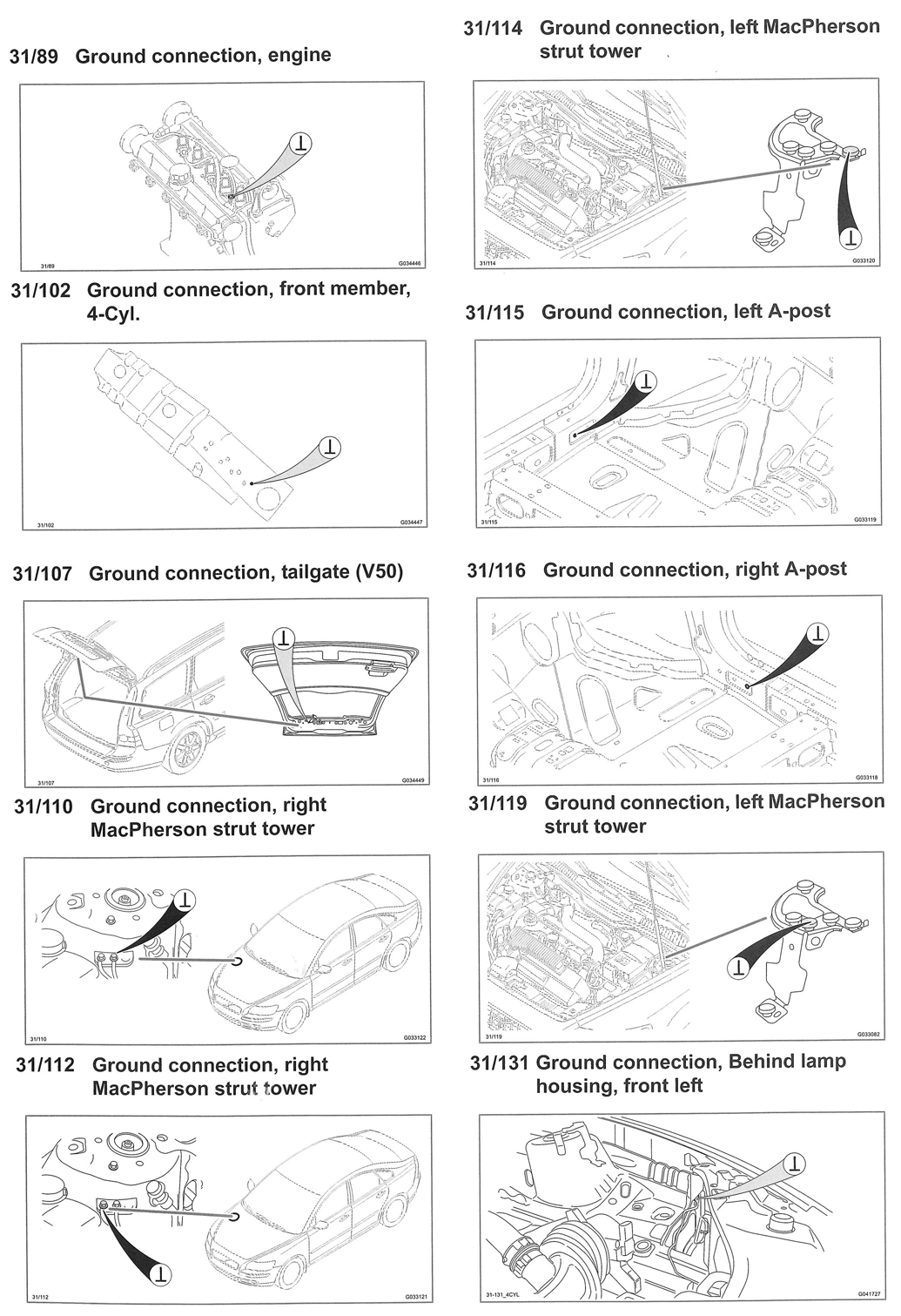

Fig 59: Components 31/89 To 31/131
Courtesy of VOLVO CARS OF NORTH AMERICA.

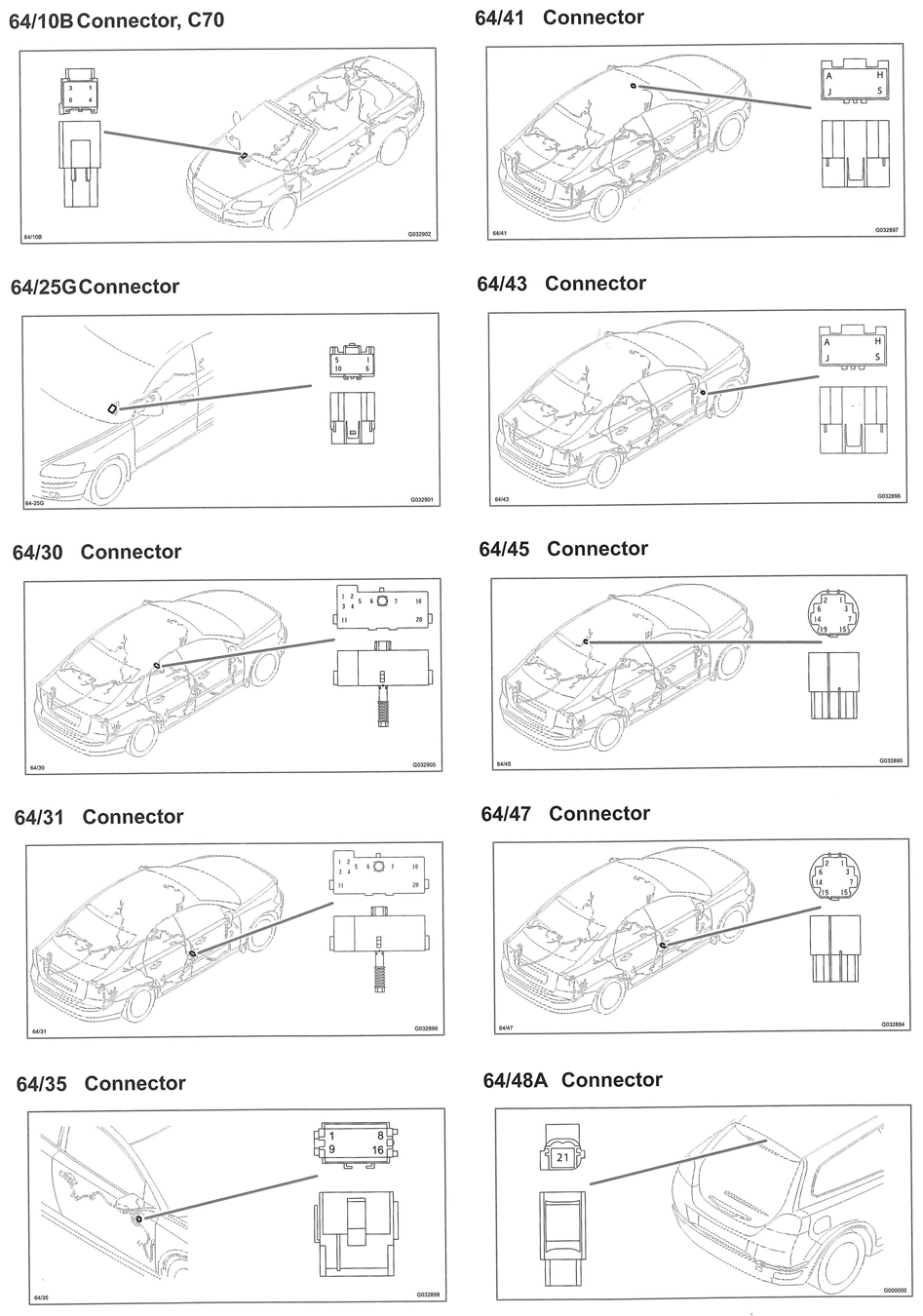

Fig 60: Components 64/10B To 64/48A
Courtesy of VOLVO CARS OF NORTH AMERICA.

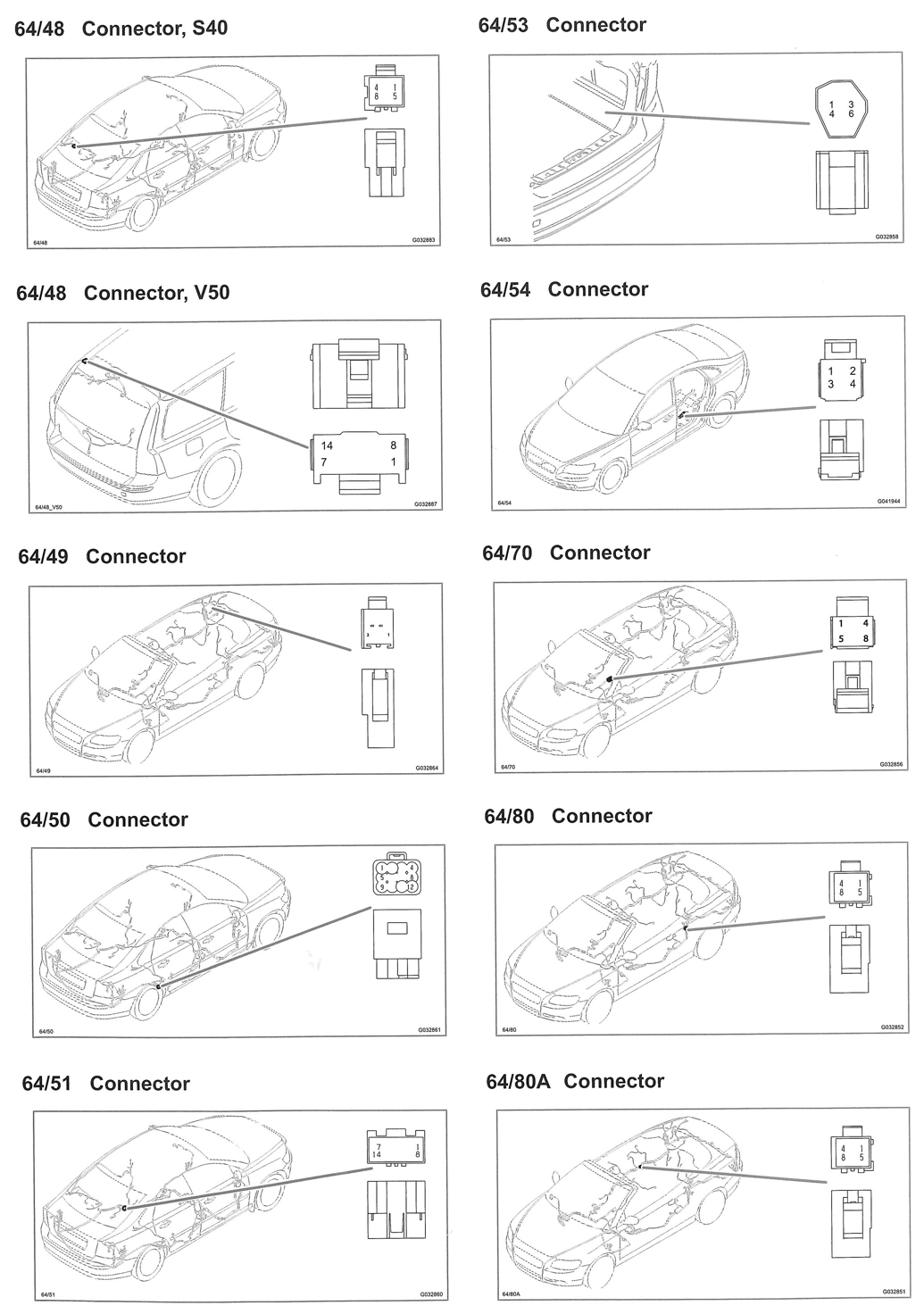

Fig 61: Components 64/48 (S40) To 64/80A
Courtesy of VOLVO CARS OF NORTH AMERICA.

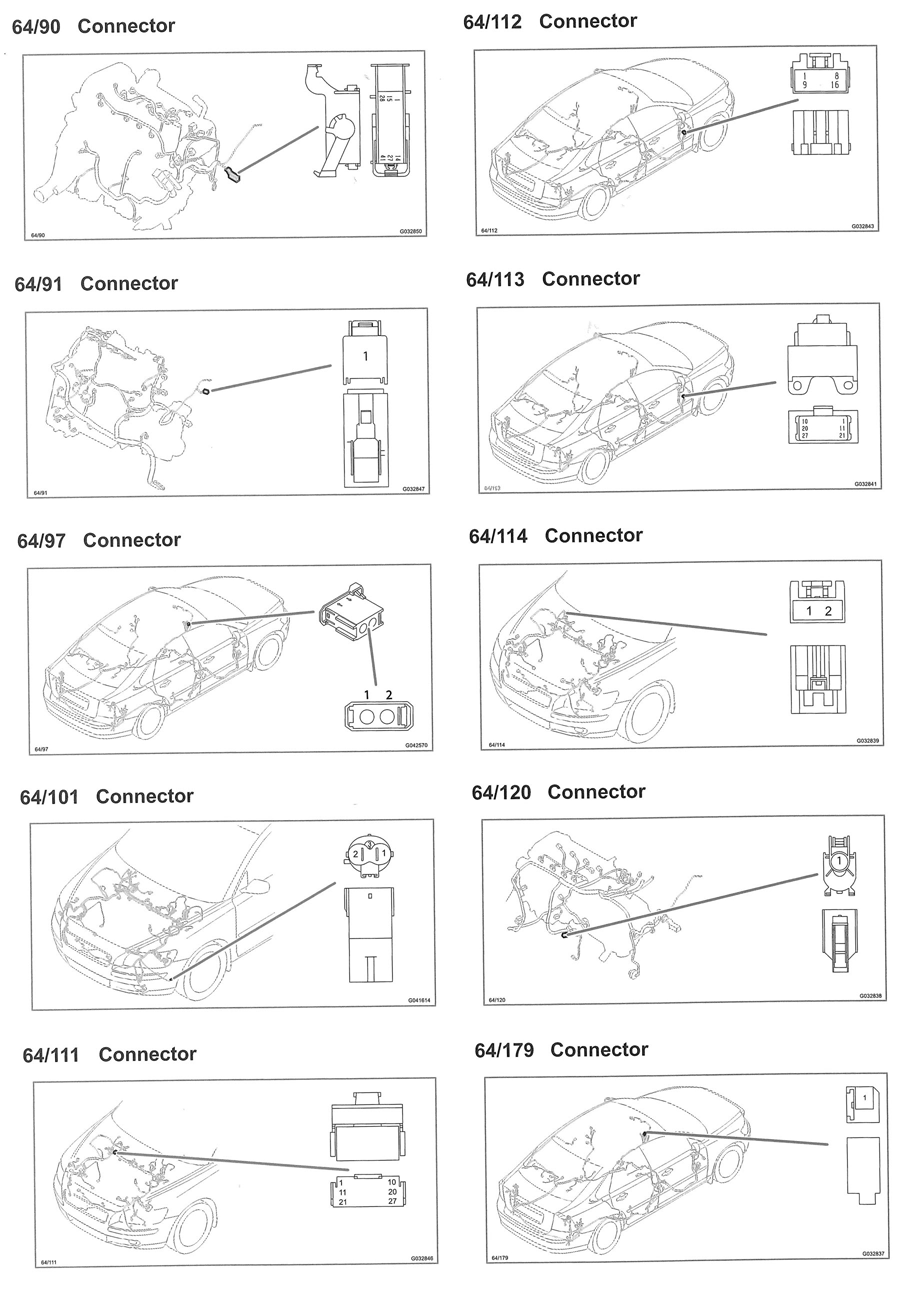

Fig 62: Components 64/90 To 64/179
Courtesy of VOLVO CARS OF NORTH AMERICA.

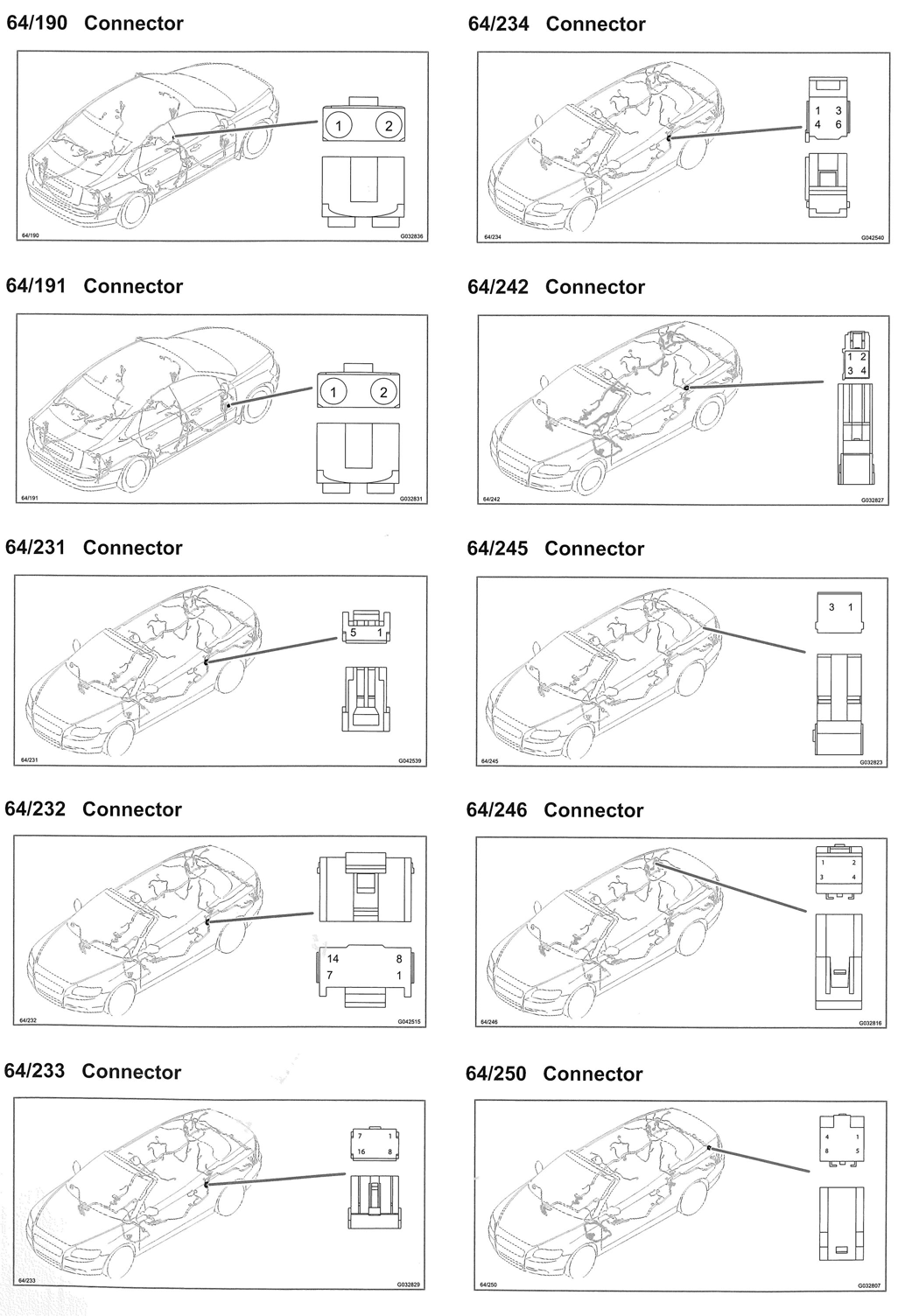

Fig 63: Component 64/190 To 64/250
Courtesy of VOLVO CARS OF NORTH AMERICA.

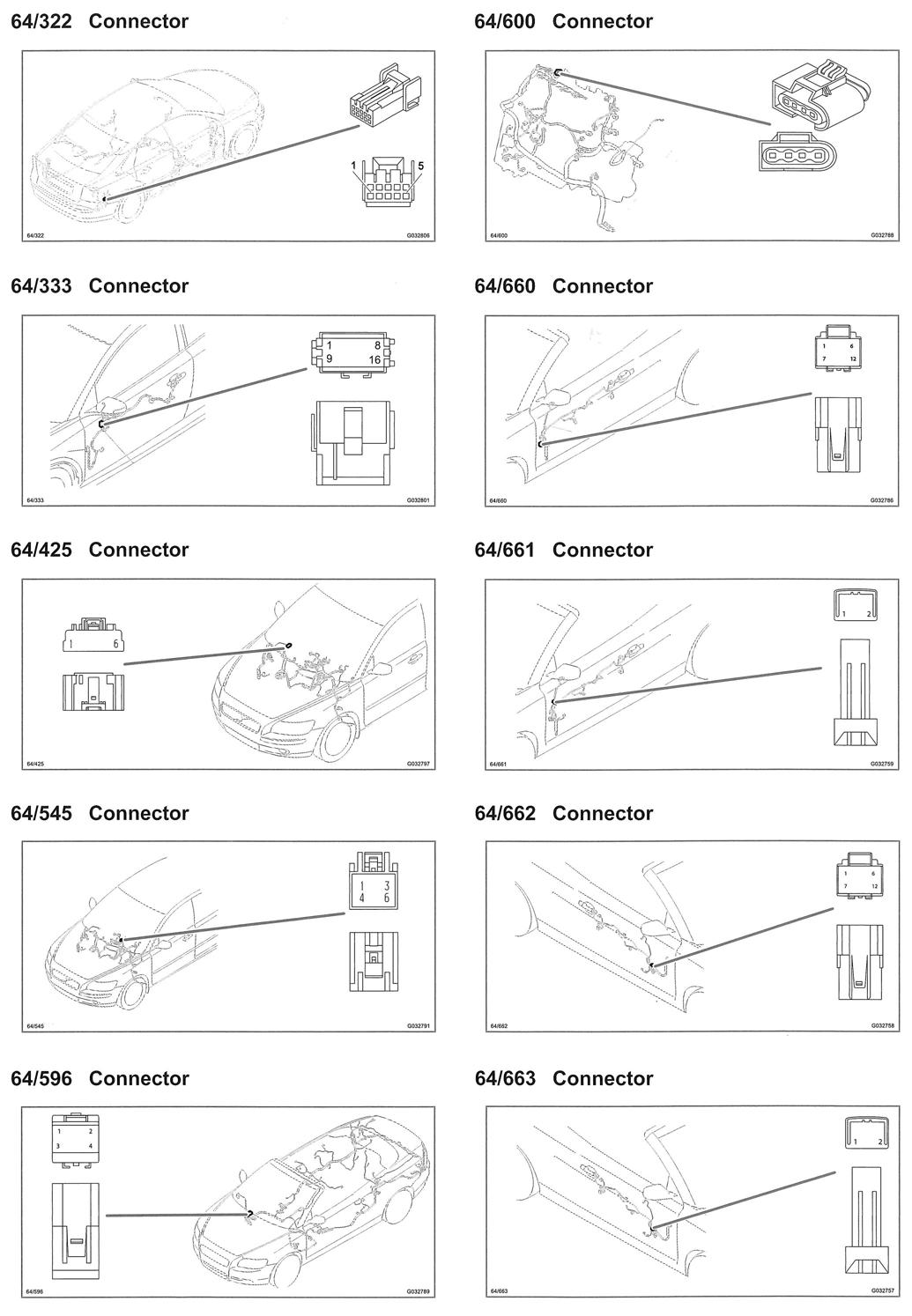

Fig 64: Components 64/322 To 64/663
Courtesy of VOLVO CARS OF NORTH AMERICA.

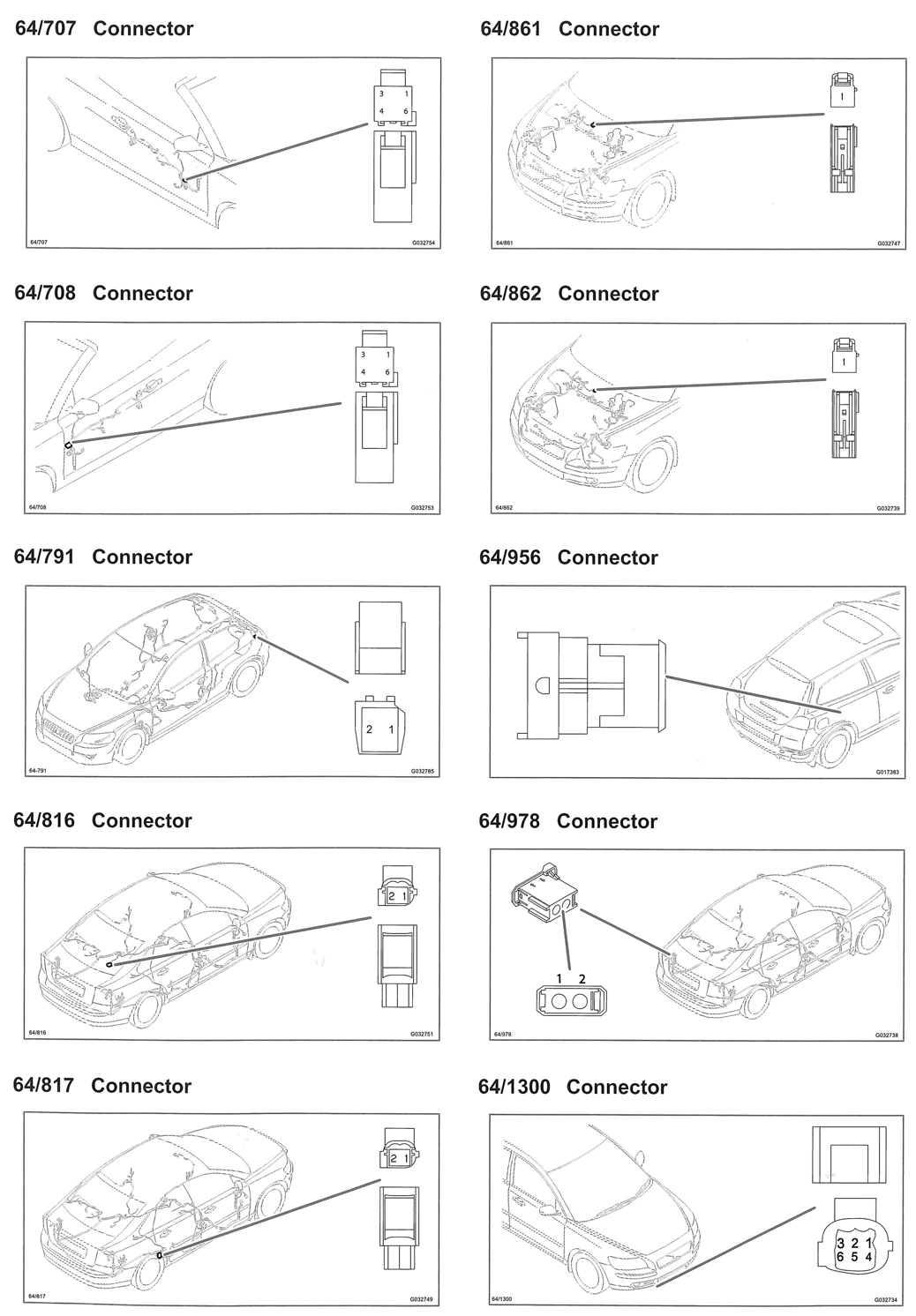

Fig 65: Components 64/707 To 64/1300
Courtesy of VOLVO CARS OF NORTH AMERICA.

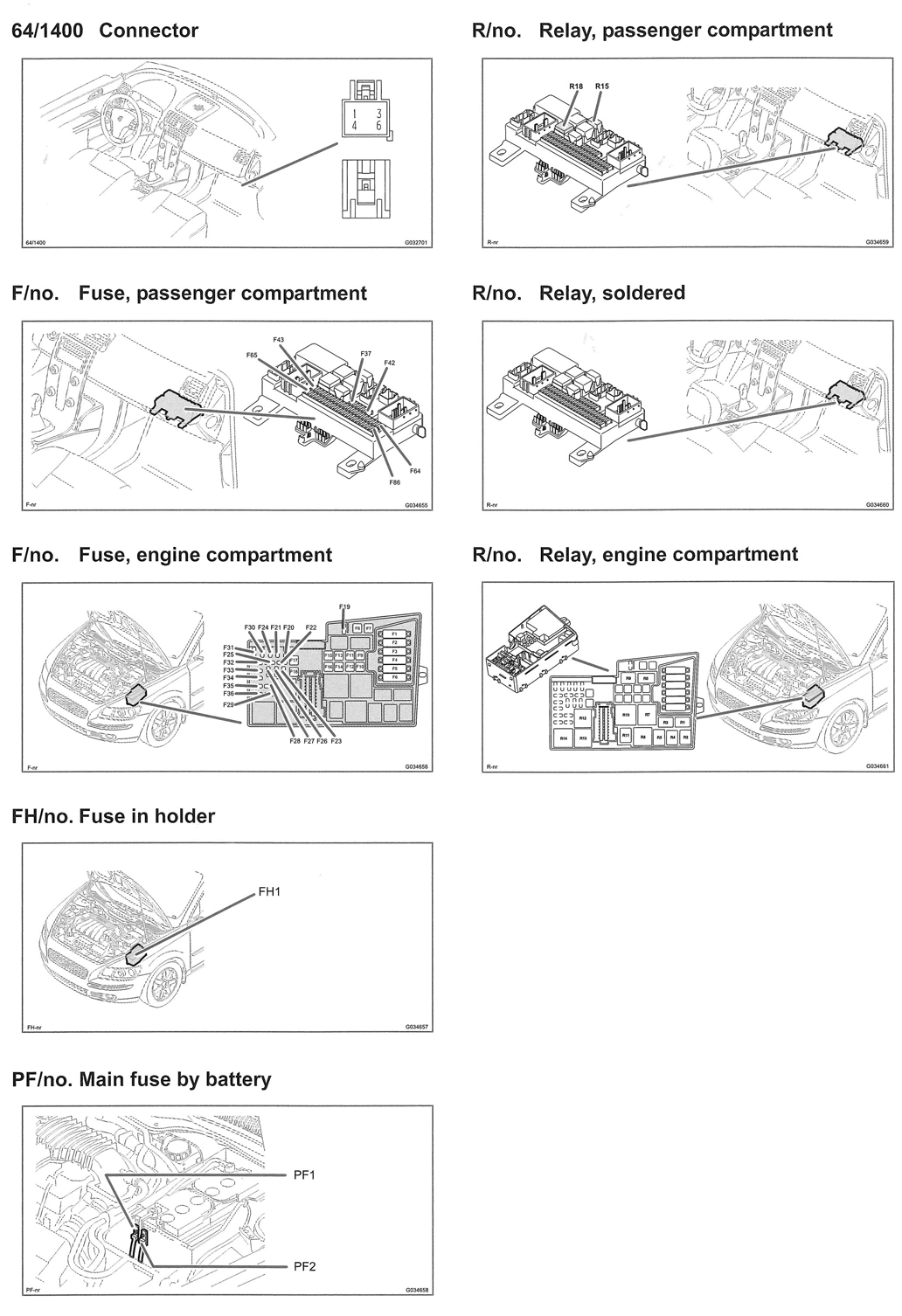

Fig 66: Components 64/1400 To R/No.
Courtesy of VOLVO CARS OF NORTH AMERICA.

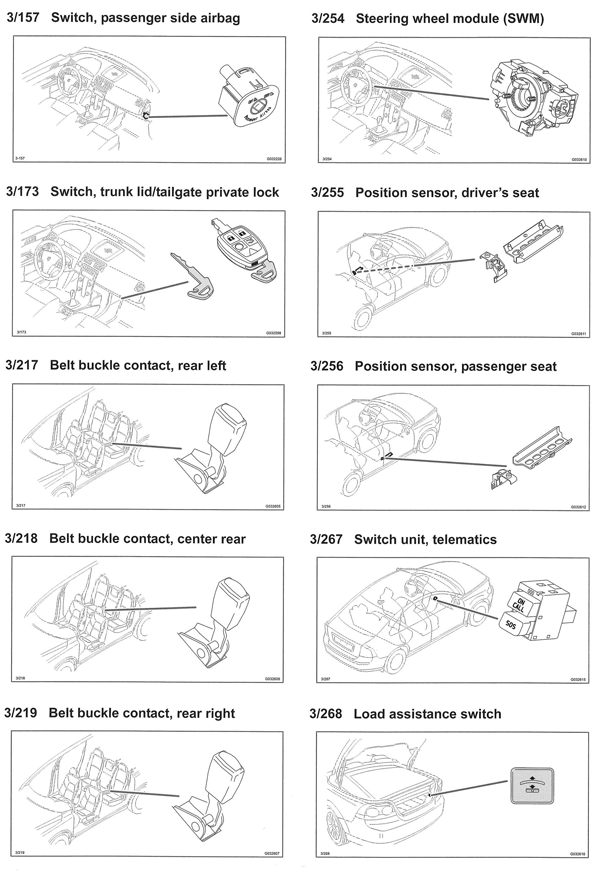

Fig 67: Components 3/157 To 3/268
Courtesy of VOLVO CARS OF NORTH AMERICA.
