Body Side

Fig 1: Body Dimension Measuring Point Symbols

Courtesy of VOLVO CARS CORPORATION

Explanation of symbols

As measured from center

As measured from one edge

As measured from cut marking

Courtesy of VOLVO CARS CORPORATION

As measured from the bottom of the recess. If only one measurement point symbol is shown, it applies to both points. Otherwise, the symbols appear on each side of the measurement designation in the graphic.

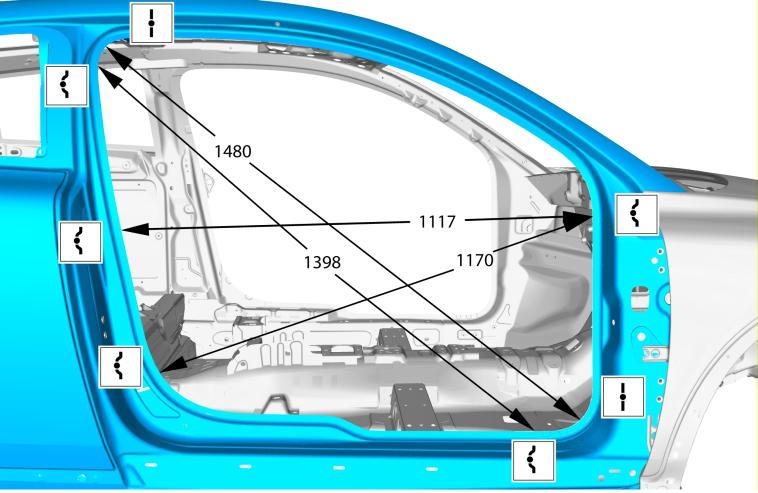

Fig 2: Front Door Opening Dimensions And Measurement Locations (1 Of 2)

Courtesy of VOLVO CARS CORPORATION

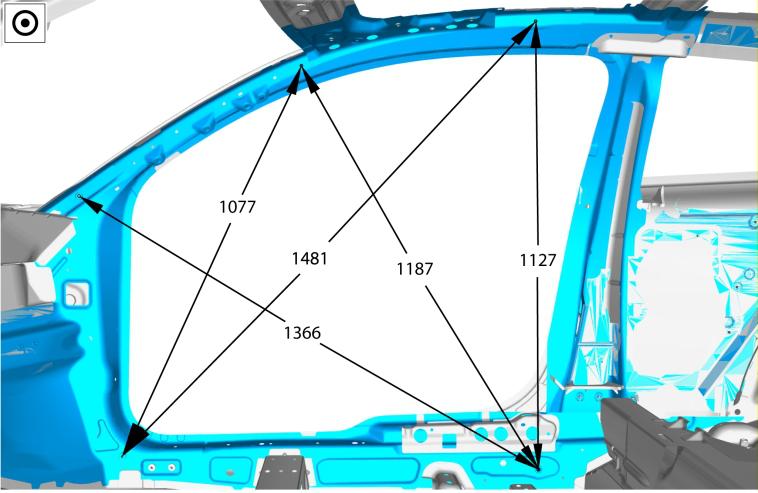

Fig 3: Front Door Opening Dimensions And Measurement Locations (2 Of 2)

Courtesy of VOLVO CARS CORPORATION

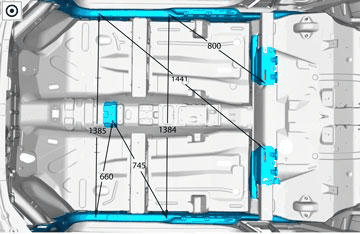

Fig 4: Passenger Compartment Interior Dimensions And Measurement Locations (1 Of 3)

Courtesy of VOLVO CARS CORPORATION

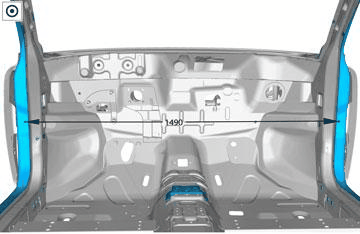

Fig 5: Passenger Compartment Interior Dimensions And Measurement Locations (2 Of 3)

Courtesy of VOLVO CARS CORPORATION

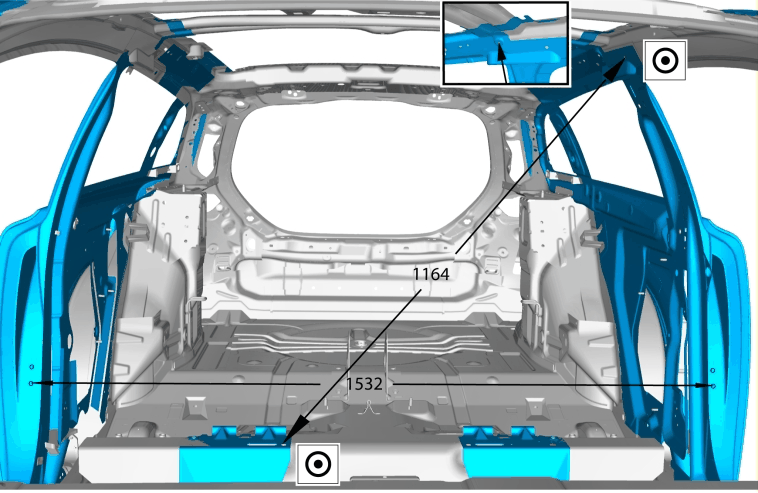

Fig 6: Passenger Compartment Interior Dimensions And Measurement Locations (3 Of 3)

Courtesy of VOLVO CARS CORPORATION
