Rear Section

Fig 1: Body Dimension Measuring Point Symbols

Courtesy of VOLVO CARS CORPORATION

Explanation of symbols

1. As measured from center

2. As measured from one edge

3. As measured from cut marking

Courtesy of VOLVO CARS CORPORATION

As measured from the bottom of the recess. If only one measurement point symbol is shown, it applies to both points. Otherwise, the symbols appear on each side of the measurement designation in the graphic.

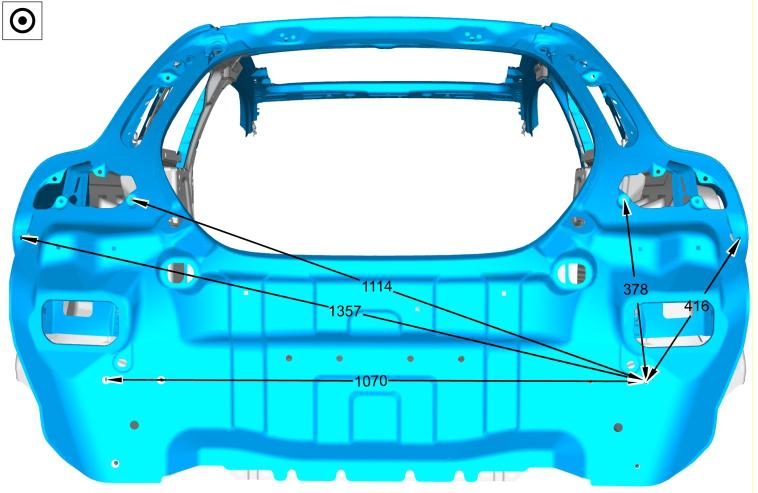

Fig 2: Rear Body Panel Position Dimensions And Measurement Locations

Courtesy of VOLVO CARS CORPORATION

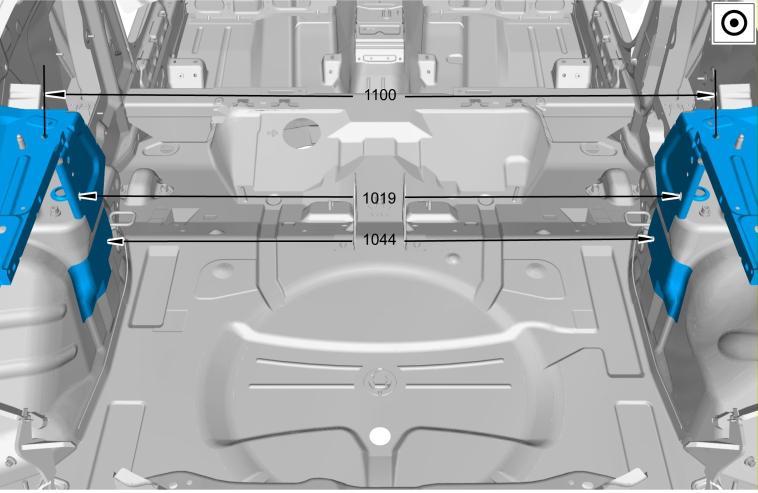

Fig 3: Cargo Compartment Dimensions And Measurement Locations (1 Of 2)

Courtesy of VOLVO CARS CORPORATION

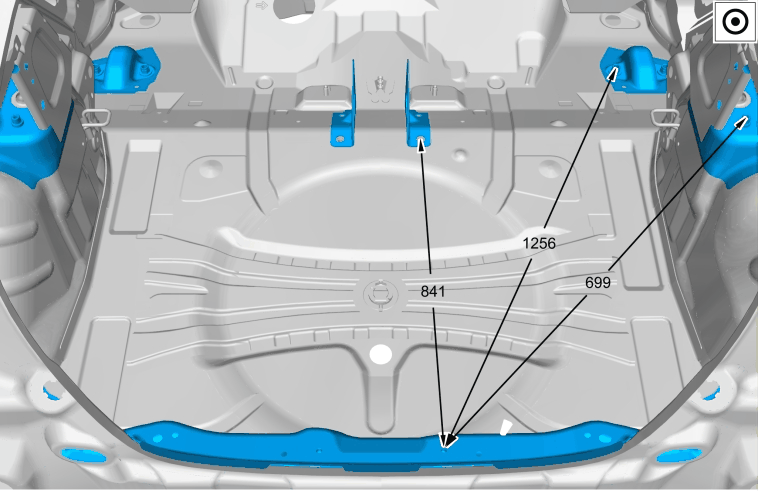

Fig 4: Cargo Compartment Dimensions And Measurement Locations (2 Of 2)

Courtesy of VOLVO CARS CORPORATION
