Camshaft Position Sensor (CMP) (Turbo): Removal

NOTE:

Removal steps in this procedure may contain installation details.

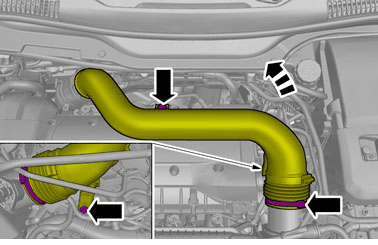

Fig 1: Identifying Air Intake Hoses And Fasteners
GLL179265Courtesy of VOLVO CARS CORPORATION

Torque:  M6

10 Nm

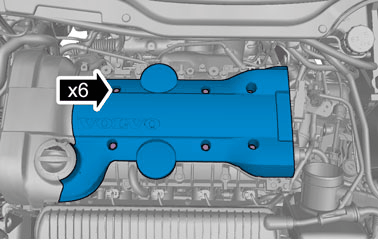

Fig 2: Identifying Engine Cover And Screws
GLL179266Courtesy of VOLVO CARS CORPORATION

Torque:  M6

10 Nm

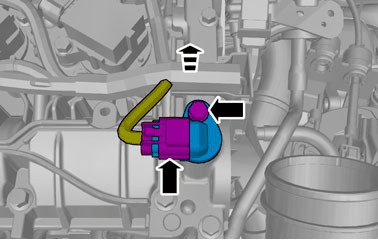

Fig 3: Identifying Camshaft Position Sensor Connector And Screw
GLL179268Courtesy of VOLVO CARS CORPORATION

Torque:  M6

10 Nm
