Installing Components

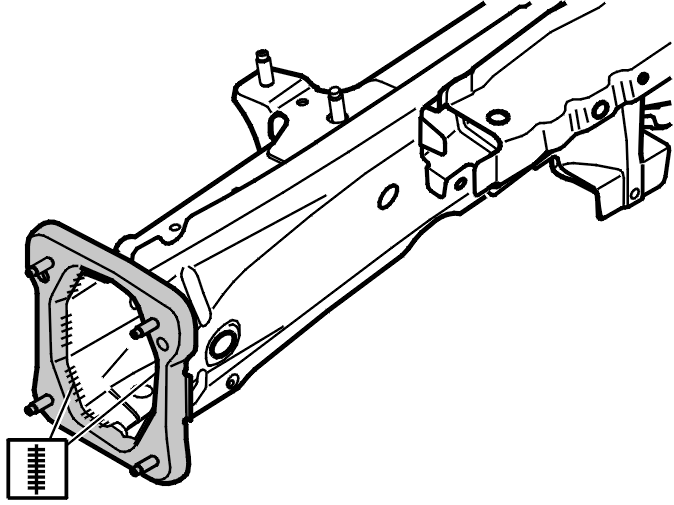

Fig 1: Replacement Collar Installation Weld Locations

Courtesy of VOLVO CARS CORPORATION

Seam-weld the collar into place using 8 welding seams each measuring 30 mm. See the illustration above.

Install:

• the wheel arch. See: FRONT WHEEL BEARING
• the front side panel. See: BRACKET FRONT PIECE .
