Component Location, Brake Control Module (BCM) [2011-2018]

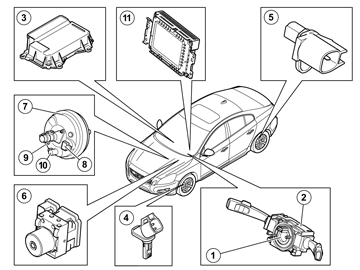

LOCATION OF COMPONENTS FOR BRAKE ELECTRONICS

Courtesy of VOLVO CARS CORPORATION

1. Contact roller / steering wheel angle sensor.
2. Steering wheel angle sensor module (located internally in steering wheel module (SWM)).
3. Supplemental restraint system module (SRS).
4. Front wheel sensor.
5. Rear wheel sensor.
6. Hydraulic modulator with control module.
7. Servo unit.
8. Vacuum sensor.
9. Activation unit (pedal pressure sensor, check valve).
10. Pedal position sensor.
11. Infotainment Control Module (ICM).
