Wheel Sensor 7/31, 7/32, 7/56, 7/57

GENERAL

GLL140015Courtesy of VOLVO CARS CORPORATION

Type

Hall sensor (active sensor).

characteristic

When the toothed wheel rotates, a pulsed current signal (square wave) with fixed pulse ratio is generated. The frequency increases with speed.

Tooth at sensor

Cover at sensor

Other information

Nothing

TERMINAL

Front wheel sensor

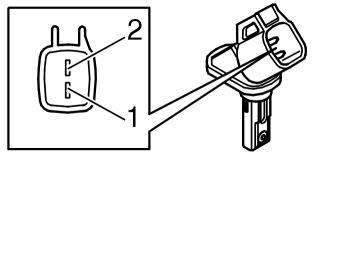

GLL140606Courtesy of VOLVO CARS CORPORATION

Rear wheel sensor

GLL140606Courtesy of VOLVO CARS CORPORATION
Connector terminal Control module terminal Signal type Miscellaneous
#1 #45 Power supply, front left The sensor receives 12 V from the control module.
  #14 Signal output left front Taxi signal. The signal can be used to check the wheel sensor's signal
#2 #46 Signal ground The sensor is grounded through the control module.
#1 #36 Power supply, rear left The sensor receives 12 V from the control module.
  #9 Signal output left rear Taxi signal. Can be used to check the wheel sensor's function
#2 #37 Signal ground The sensor is grounded through the control module.
#1 #34 Power supply, front right The sensor receives 12 V from the control module.
  #11 Signal output right front Taxi signal. Can be used to check the wheel sensor's function.
#2 #33 Signal ground The sensor is grounded through the control module.
#1 #43 Power supply, rear right The sensor receives 12 V from the control module.
  #7 Signal output right rear Taxi signal. Can be used to check the wheel sensor's function.
#2 #42 Signal ground The sensor is grounded through the control module.

CHECK

Prerequisites (unless otherwise specified):

NOTE:

On special vehicles like police and taxi, all extra connected devices must be shut off as they may use any of the signal outputs in the table above.

Create a temporary voltage feed between #1 on the breakout box via a resistor of 1kΩ and the sensor's signal output (#7, #9, #11, or 14). Connect a voltmeter between the sensor's signal output and ground connection #16. Turn the wheel slowly:

Tooth against sensor U ≈ ULow

Gap against sensor U ≈ Ubat

Direction sensitive wheel sensor

There is a direction sensitive wheel sensor on the front right. The signal is made up in a slightly different way, see the appropriate service information for more information (Design and function, Brake control module (BCM)), but the method for measuring and the appearance of the pulse train is the same.

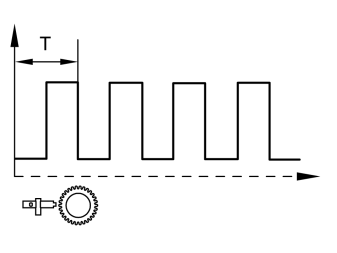

GLL159790Courtesy of VOLVO CARS CORPORATION
