Front End

Courtesy of VOLVO CARS CORPORATION

1. Measure from the center
2. Measure from the edge
3. Measure from the cut mark

Courtesy of VOLVO CARS CORPORATION

Measurement takes place from the bottom of the recess. If only a measuring point symbol is shown this applies to both measuring points. Otherwise the symbols are shown on one side each of the measurement designation in the figure.

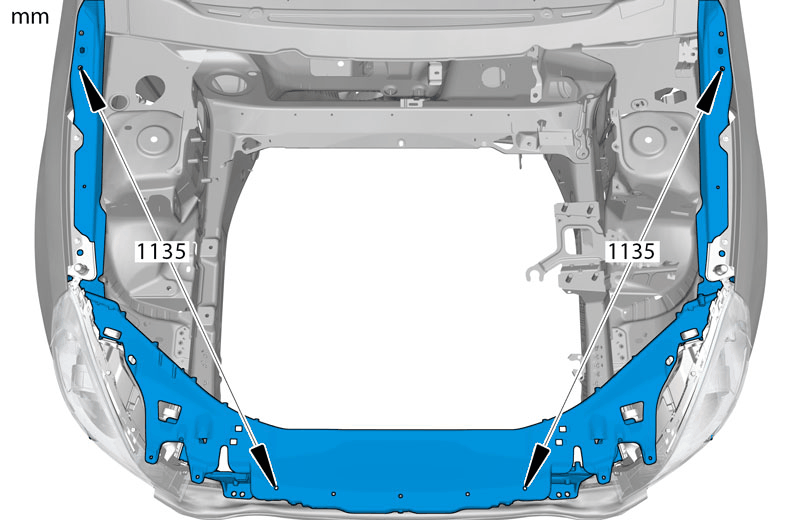

Fig 1: Front End Panel Dimensions And Measurement Points

Courtesy of VOLVO CARS CORPORATION
