Rear Section

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

As measured from the bottom of the recess. If only one measurement point symbol is shown, it applies to both points. Otherwise, the symbols appear on each side of the measurement designation in the illustration.

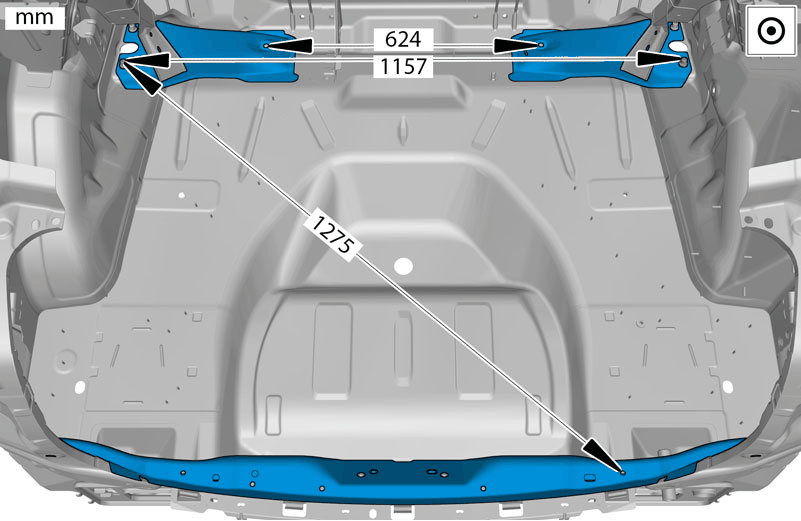

Fig 1: Rear Section Dimensions And Measurement Points (1 Of 2)

Courtesy of VOLVO CARS CORPORATION

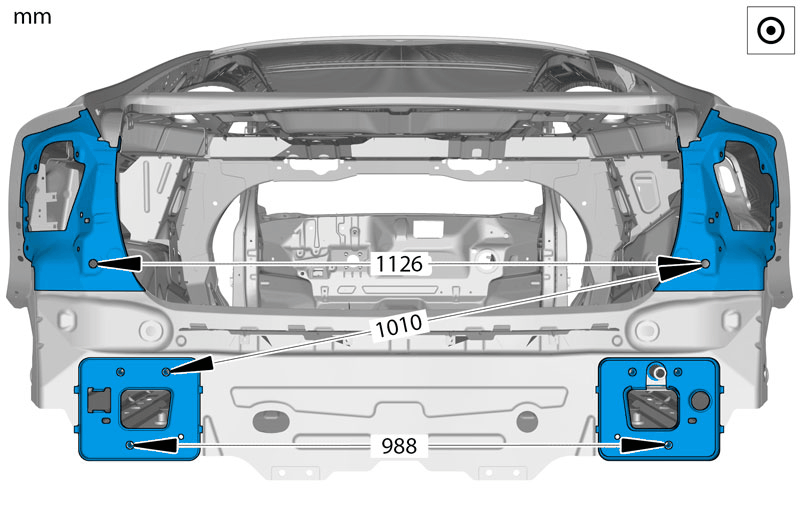

Fig 2: Rear Section Dimensions And Measurement Points (2 Of 2)

Courtesy of VOLVO CARS CORPORATION
