Side Members, Front

Courtesy of VOLVO CARS CORPORATION

1. Measure from the center
2. Measure from the edge
3. Measure from the cut mark

Courtesy of VOLVO CARS CORPORATION

Measurement takes place from the bottom of the recess. See illustration above. If only a measuring point symbol is shown this applies to both measuring points. Otherwise the symbols are shown on one side each of the measurement designation in the figure.

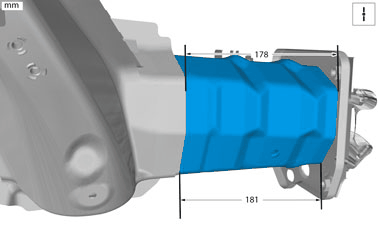

Fig 1: Front Side Member Cut Line Dimensions And Measurement Points (1 Of 2)

Courtesy of VOLVO CARS CORPORATION

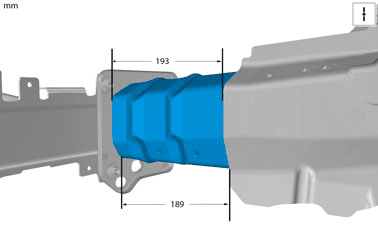

Fig 2: Front Side Member Cut Line Dimensions And Measurement Points (2 Of 2)

Courtesy of VOLVO CARS CORPORATION

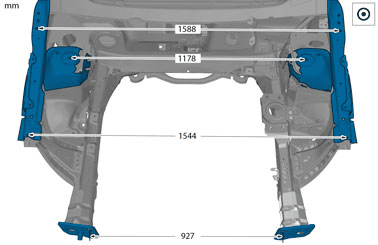

Fig 3: Engine Compartment Dimensions And Measurement Points (1 Of 4)

Courtesy of VOLVO CARS CORPORATION

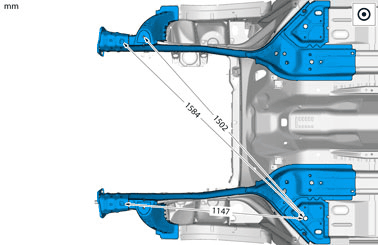

Fig 4: Engine Compartment Dimensions And Measurement Points (2 Of 4)

Courtesy of VOLVO CARS CORPORATION

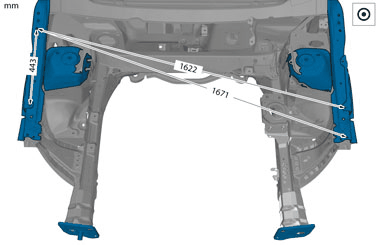

Fig 5: Engine Compartment Dimensions And Measurement Points (3 Of 4)

Courtesy of VOLVO CARS CORPORATION

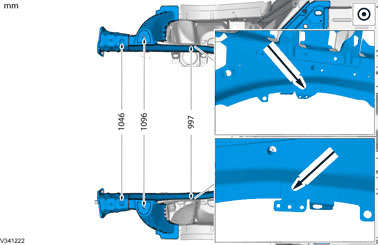

Fig 6: Engine Compartment Dimensions And Measurement Points (4 Of 4)

Courtesy of VOLVO CARS CORPORATION
