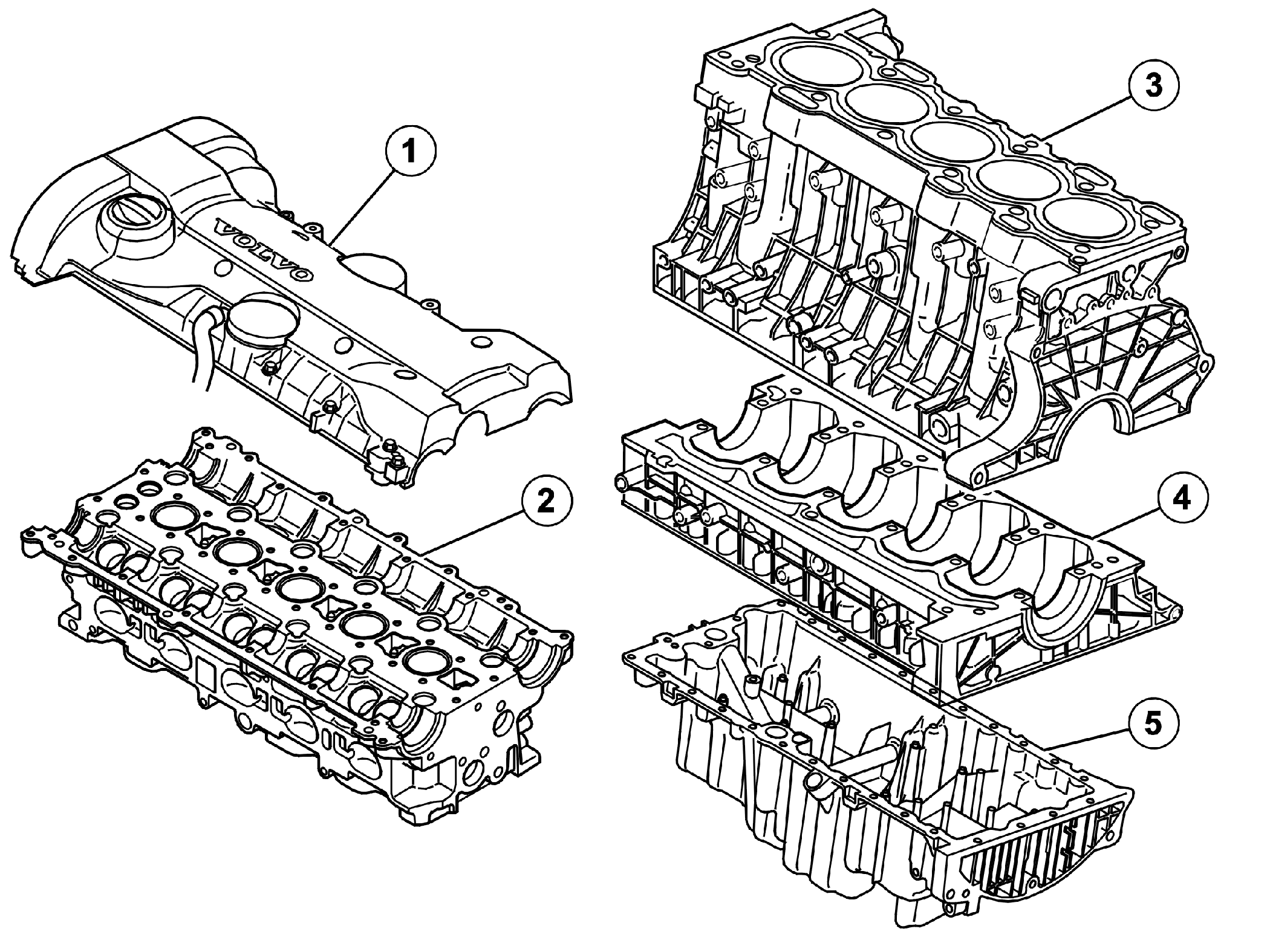

Engine Block
- Cylinder head cover
- Cylinder head
- Cylinder block
- Intermediate section
- Oil pan
The engine block is divided into five parts, where the cylinder head consists of two parts (1 and 2) and the engine block of three parts (3, 4 and 5). The seal between the cylinder head and engine block is a conventional cylinder head gasket, while sealing between the other gasket surfaces is done with liquid gasket.
