Windshield Frame [2010 - 2017]

Fig 1: Body Dimension Measuring Point Symbols

Courtesy of VOLVO CARS CORPORATION

1. Measure from the centre
2. Measure from the edge
3. Measure from the cut mark

Courtesy of VOLVO CARS CORPORATION

Measurements are taken from the bottom of the recess.

If only one measuring point symbol is displayed, the symbol applies to both points. Otherwise the symbols are shown on each side of the dimension in the graphic.

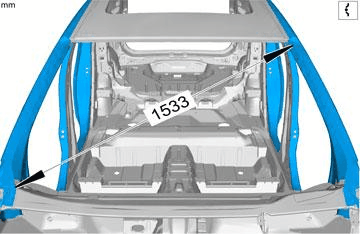

Fig 2: Windshield Opening And Position Dimensions And Measurement Locations

Courtesy of VOLVO CARS CORPORATION
