Air Pressure Sensor Inlet
The manifold absolute pressure (MAP) sensor detects quick pressure changes in the intake manifold after the throttle. The signal from the sensor is used by the engine control module (ECM) to supplement the mass air flow (MAF) sensor when calculating injection period.

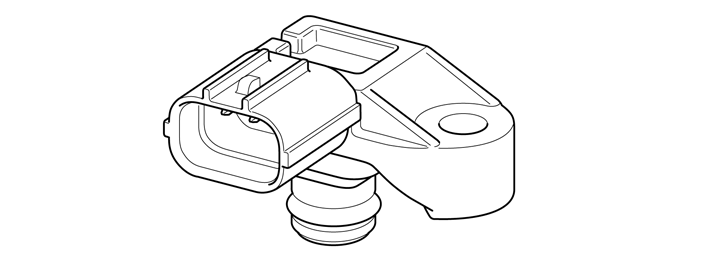

Manifold absolute pressure (MAP) sensor, intake, is located on the upper part of the intake manifold.
The semi-conductor sensor is grounded in the control module and is supplied with power from the control module.
The resistance in the intake manifold moves the silicone membrane in the sensor, giving a signal of 0.5 - 4.5 V to the control module. Low pressure results in low voltage, high pressure gives high voltage.
The pressure sensor can be diagnosed by the engine control module (ECM) and the sensor signal can be read off.
