Draining Oil

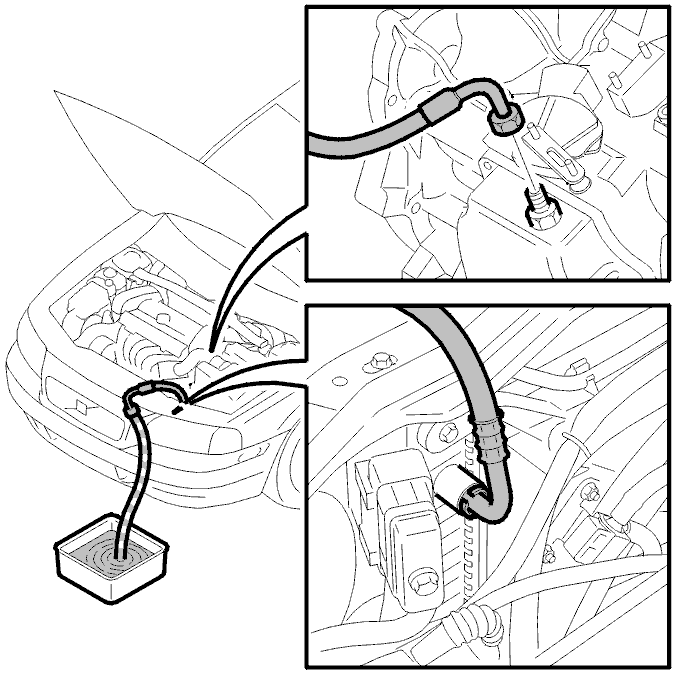

Fig 1: Draining Cooler

Courtesy of VOLVO CARS CORPORATION

Remove the return hose on the control system cover.

Install a plastic plug in the connection on the cover.

Detach the return hose in the cooler. Align the hose upwards and reconnect it to the cooler.

Install a transparent plastic hose on the oil return hose connection.

Place a container beneath the hose to catch the oil.
