Spark Plugs: Replacement: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove ignition coil, see IGNITION COIL

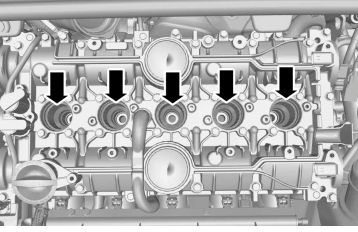

Fig 1: Identifying Spark Plug Locations
GLL155074Courtesy of VOLVO CARS CORPORATION

Torque:  Spark plug

25 Nm
