Anti-Lock Brake System Module (Abs): Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove battery. See BATTERY .

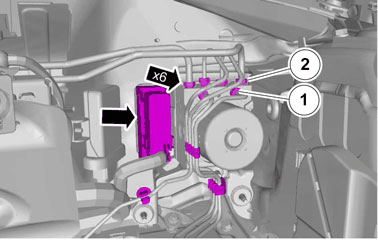

Fig 1: Identifying Anti-Lock Brakes And Brake Pipe

Courtesy of VOLVO CARS CORPORATION

Install the following items:

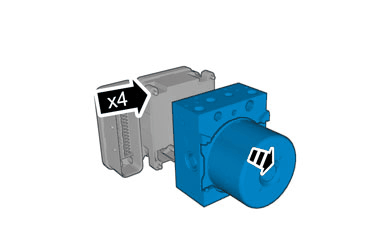

Fig 2: Identifying M5 Bolts

Courtesy of VOLVO CARS CORPORATION

NOTE: Make sure that the mating faces are clean and free of foreign material.

Torque: M5

5 Nm

Remove hydraulic unit brake system. See HYDRAULIC UNIT BRAKE SYSTEM
