Back Piece, Inner: Installation

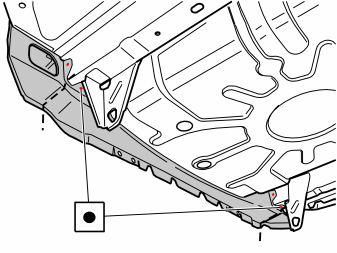

Fig 1: Inner Back Piece Installation Weld Locations
GLL151993Courtesy of VOLVO CARS CORPORATION

See WELDING, GENERAL .

For material information, see SHEET METAL, MATERIAL INFORMATION .

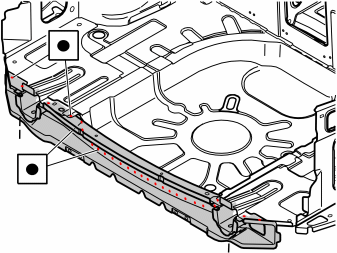

Fig 2: Outer Rear Section Installation Weld Locations
GLL151994Courtesy of VOLVO CARS CORPORATION

Install the outer rear section, see TAIL SECTION EXTERNAL .

Seal. See: BODY SEAL, SEALING DIAGRAM .

Rustproof. See: RUSTPROOFING .

Install components. See: REAR SECTION, EXPOSING (2006) , REAR SECTION, EXPOSING (2007) , or REAR SECTION, EXPOSING (2008-2012) .

NOTE:

Check the whiplash system in the vehicle. See: COLLISION PROTECTION UNIT FROM BEHIND FRONT SEAT CHECK (2011) .
