Header Rail Weatherstrip: Installation

Hint:  Use soap solution

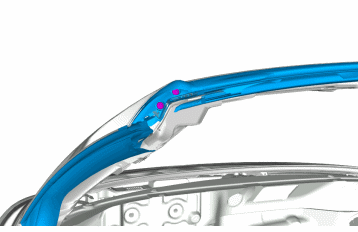

Fig 1: Header Rail Weatherstrip Installation (1 Of 4)

Courtesy of VOLVO CARS CORPORATION

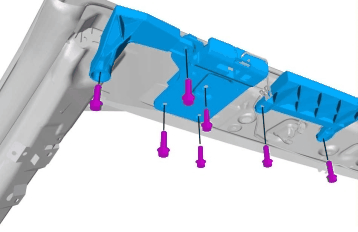

Fig 2: Header Rail Weatherstrip Installation (2 Of 4)

Courtesy of VOLVO CARS CORPORATION

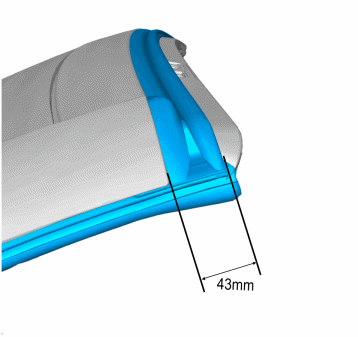

Fig 3: Header Rail Weatherstrip Installation (3 Of 4)

Courtesy of VOLVO CARS CORPORATION

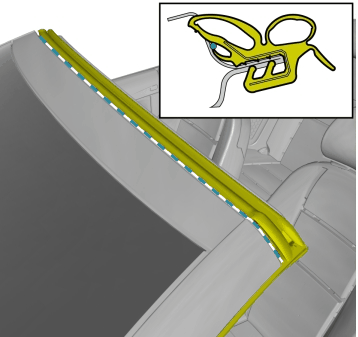

Fig 4: Header Rail Weatherstrip Installation (4 Of 4)

Courtesy of VOLVO CARS CORPORATION

On both sides.

Torque:  M6

10 Nm

Install Header Rail Trim Panel, see HEADER RAIL TRIM PANEL .

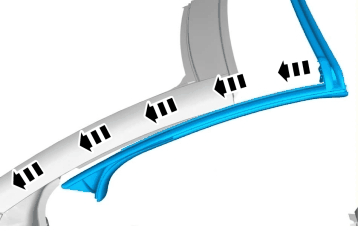

Fig 5: Header Rail Weatherstrip Adhesive Application Areas

Courtesy of VOLVO CARS CORPORATION

Use:  Glue, 8750060
