Signal Specification
NOTE:
It is important to connect the breakout box and check the ground terminals before taking readings.
Other information
| U= | DC voltage in volts (V) | UAC = | AC voltage in volts (V) |
| Ubat = | Battery voltage (V) | f = | Frequency in Hertz (Hz) |
| Ulow = | Voltage approximately 0 V | % duty = | Duty cycle (pulse ratio) as a percentage (%) |
| t = | Time in milliseconds (ms) |

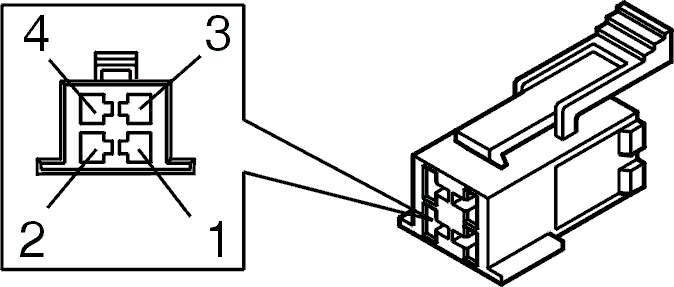

| Connector A, terminals #A1-#A4 The following values are measured between the relevant terminal in column 1 and terminal #A1 (power ground) unless otherwise stated. Check the ground terminals before starting to take readings with the breakout box. |
| Terminal in the breakout box | Terminal in connector | Signal type | Ignition off | Ignition on | Other | ||
|---|---|---|---|---|---|---|---|
| Activated | Not activated | Activated | Not activated | ||||
| #51 | #A1 | Power ground | U low | U low | U low | U low | |
| #52 | #A2 | 30-supply to the accessory electronic module (AEM) | U bat | U bat | U bat | U bat | |
| #53 | #A3 | Communication CAN L low speed network | 1.5 - 2.5 V | 1.5 - 2.5 V | 1.5 V, at communication | ||
| #54 | #A4 | Communication CAN_H low speed network | 2.5 - 3.5 V | 2.5 - 3.5 V | 3.5 V, at communication | ||

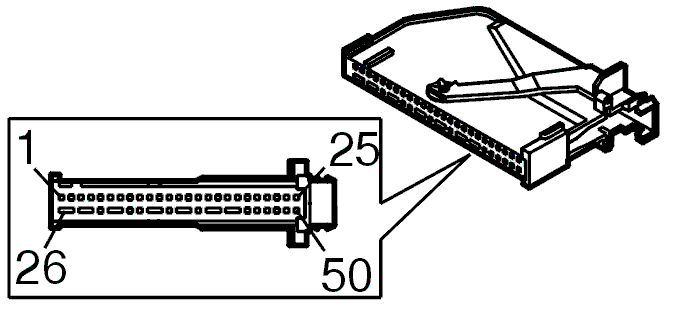

| Connector B, terminals #B1 - #B50 The following values are measured between the relevant terminal in column 1 and terminal #A1 (power ground) unless otherwise stated. Check the ground terminals before starting to take readings with the breakout box. |
| Terminal in the breakout box | Terminal in connector | Signal type | Ignition off | Ignition on | Other | ||
|---|---|---|---|---|---|---|---|
| Activated | Not activated | Activated | Not activated | ||||
| #1 | #B1 | Remote start, power supply | U bat | U bat | U bat | U bat | Remote start module always activated |
| #2 | #B2 | Remote start, ground | U low | U low | U low | U low | |
| #3 | #B3 | Remote start, digital input signal | U low | U = 3 V or U = 5 V | U low | U = 3 V or U = 5 V | Pulses with variable time periods |
| #4 | #B4 | Electric engine block heater, ground | U low | U low | U low | U low | |
| #5 | #B5 | Electric engine block heater, control signal | U bat | U low | U bat | U low | |
| #6 | #B6 | - | |||||
| #7 | #B7 | - | |||||
| #8 | #B8 | - | |||||
| #9 | #B9 | - | |||||
| #10 | #B10 | - | |||||
| #11 | #B11 | Carphone mute, digital input signal | U bat | U bat | U low | U bat | |
| #12 | #B12 | - | |||||
| #13 | #B13 | - | |||||
| #14 | #B14 | - | U bat | U bat | PWM = 30% - 70% |
PWM = 30% - 70% |
Pulse width modulation (PWM) signal |
| #15 | #B15 | Alarm signal P0, digital output signal | U low | U bat | U bat | U bat | Status "Ignition off " on condition the ignition key is out |
| #16 | #B16 | Alarm signal P1, digital output signal | U low | U bat | U bat | U bat | Status "Ignition off " on condition the ignition key is out |
| #17 | #B17 | - | |||||
| #18 | #B18 | - | |||||
| #19 | #B19 | - | |||||
| #20 | #B20 | - | |||||
| #21 | #B21 | - | |||||
| #22 | #B22 | - | |||||
| #23 | #B23 | - | |||||
| #24 | #B24 | - | |||||
| #25 | #B25 | - | |||||
| #26 | #B26 | - | |||||
| #27 | #B27 | - | |||||
| #28 | #B28 | - | |||||
| #29 | #B29 | - | |||||
| #30 | #B30 | - | |||||
| #31 | #B31 | - | |||||
| #32 | #B32 | - | |||||
| #33 | #B33 | Alarm signal S0, digital output signal | U bat | U bat | U low | U bat | |
| #34 | #B34 | Alarm signal S1, digital output signal | U low | U low | U bat | U low | |
| #35 | #B35 | - | |||||
| #36 | #B36 | - | |||||
| #37 | #B37 | - | |||||
| #38 | #B38 | - | |||||
| #39 | #B39 | - | |||||
| #40 | #B40 | - | |||||
| #41 | #B41 | - | |||||
| #42 | #B42 | - | |||||
| #43 | #B43 | - | |||||
| #44 | #B44 | - | |||||
| #45 | #B45 | - | |||||
| #46 | #B46 | - | |||||
| #47 | #B47 | - | |||||
| #48 | #B48 | - | |||||
| #49 | #B49 | - | |||||
| #50 | #B50 | - | |||||
