Audio Module (AUD) (2006): Design: Microphone

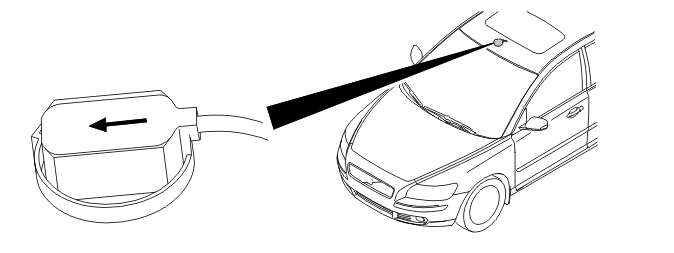

Fig 1: Identifying Microphone

Courtesy of VOLVO CARS CORPORATION

All versions of the audio module (AUD) have a microphone which is directly connected to the control module. The microphone is in the roof console.

The microphone is used for functions such as handsfree in the phone module (PHM).
