Central Electronic Module (CEM) (2006-2013): Function: Horn

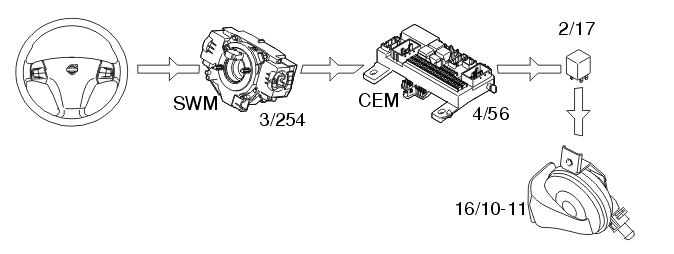

Fig 1: Identifying Horn

Courtesy of VOLVO CARS CORPORATION

The horn (16/10-11) is operated when the steering wheel module (SWM) (3/254) receives a signal from the switches in the steering wheel. The steering wheel module (SWM) transmits information via a directly connected cable to the central electronic module (CEM) (4/56) indicating that the switch is closed. The central electronic module (CEM) activates the relay (2/17) for power supply to the horn.
