Dashboard Vents

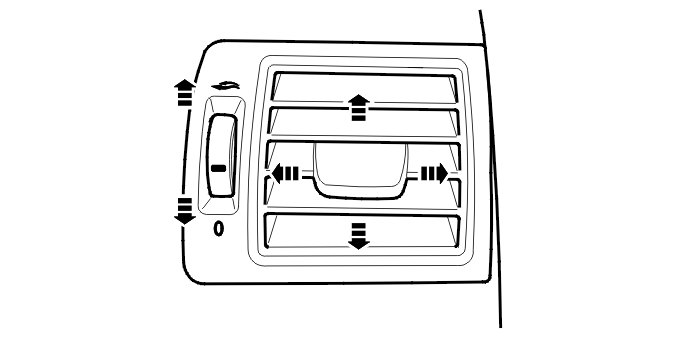

Fig 1: View Of Dashboard Vents
GLL140853Courtesy of VOLVO CARS CORPORATION

The vents are adjustable so that the air can be throttled, blocked or steered in the desired direction.

If the side vents are aimed at the side windows, they help to remove mist from the windows.
