Under Rear Side Window
Left rear door module (LDM) and Right rear door module (RDM) are completely the same and only manage the functions for power windows and door locks in their respective door.

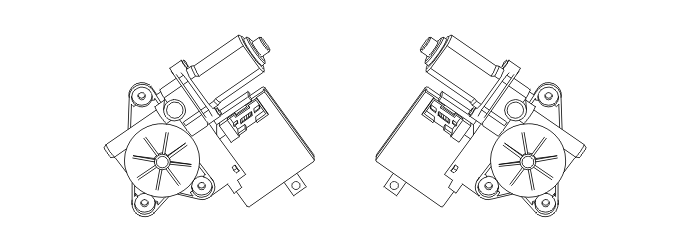

The control modules are positioned in their respective doors (in the C70 they are located under the respective rear side window). The control modules are integrated with the power window lift motors. The control modules must also be replaced when replacing the power window lift motors.
There are two types of control module, Standard and High. The difference between the variants is that Standard does not have deadlocks or child-proof locks. (child-proof locks does not apply to the C70).
The left rear door module (LDM) and right rear door module (RDM) communicate with directly connected components and with the control module for the front door on the relevant side of the vehicle via LIN-communication.
Both control modules check activations and input and output signals via an integrated diagnostic system. A diagnostic trouble code (DTC) is stored if either of the control module detects a fault. The diagnostic trouble codes (DTCs) for the control modules in the rear doors are stored in the respective control module in the front doors.
Any diagnostic trouble codes (DTCs) are stored in the relevant control module in the front doors. The data can be read off.
A simple way to ensure that the control modules are powered and grounded is to activate one of the functions that are operated via the switches on the control panels in the respective doors. The control module is powered and grounded if any of the functions are working.
