Text Messages

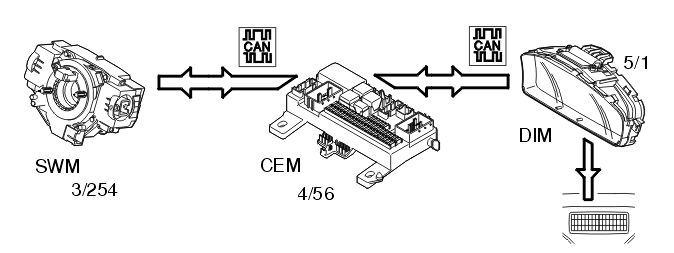

Fig 1: Identifying Text Message Function

Courtesy of VOLVO CARS CORPORATION

There is a display for text messages etc in the center of the upper section of the driver information module (DIM) (5/1). This provides the driver with supplementary information about the various warning symbols. This is to reduces the number of different symbols in the combined instrument panel. Other types of messages, such as the functions of the trip computer, are also displayed.

If the vehicle is equipped with the function automatic start/stop of engine guiding information is shown about the function.

Depending on the situation, request for these messages may come from Central electronic module (CEM) (4/56) or Steering wheel module (SWM) (3/254).

There is an order of priority where all warning messages have precedence.
