Divider, Cargo Compartment

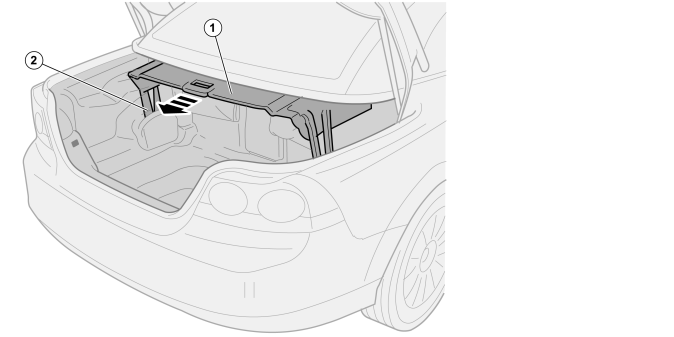

Fig 1: Divider, Cargo Compartment

Courtesy of VOLVO CARS CORPORATION

There is a divider (1) in the cargo compartment that can divide the cargo compartment into two sections. An upper section where the roof is stored when it is open and a lower section for storing luggage. Two gas struts (2) hold the divider in place.

The divider must be completely folded out for the roof to be opened.

There is a load assistance system for accessing the cargo compartment under the stored roof. The hydraulic system raises the stored roof slightly, which facilitates loading any loose luggage.

The switch for the load assistance system is located on the right-hand side of the trunk sill.
