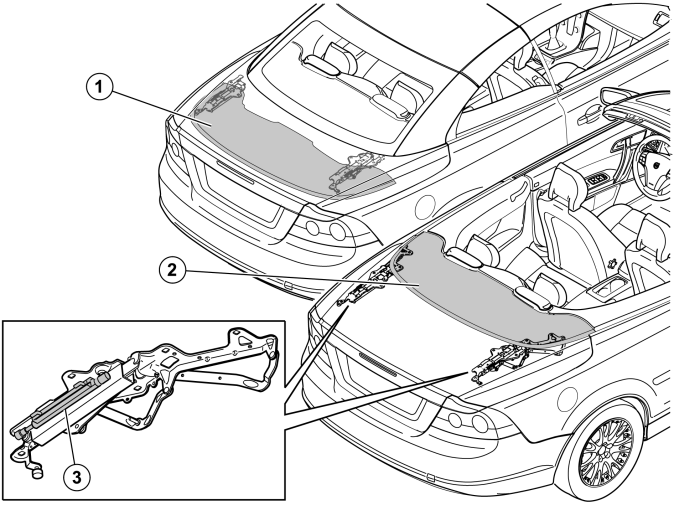

Tonneau Cover
- Cover panel, roof closed
- Cover panel, roof open
- Hydraulic cylinder
The cover panel is secured to the inside of the trunk lid. It slides forward to the rear seat backrest when the roof is open. The cover panel then closes against the trunk lid and to the backrest.
With the roof closed, the cover panel is in its drawn in position and located under the upper section of the trunk lid. When operating the roof, the cover panel is in its extended position.
The cover panel moves via a link system that is operated by two hydraulic cylinders.
The cover panel is not designed to be sat on.
