Trunk Lid

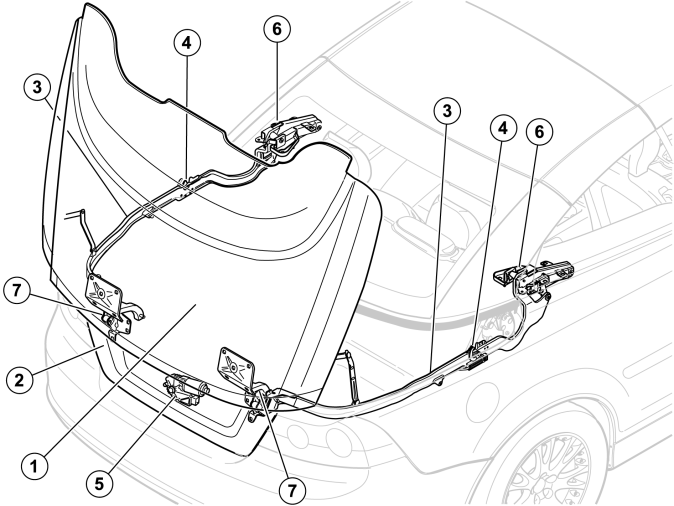

Fig 1: Trunk Lid
GLL152273Courtesy of VOLVO CARS CORPORATION

The trunk lid consists of an upper section (1) and a lower section (2), each of which is moveably secured to a hinge (7).

The trunk lid can be opened in two ways, partly like a normal trunk lid, guided by hinges (6) and partly in the opposite direction, guided by hinges (7). The latter for when the roof is opened and closed. An electric catch motor (5) locks the upper section of the trunk lid in the catches (4) when the roof is not being operated.
