Roof Operation

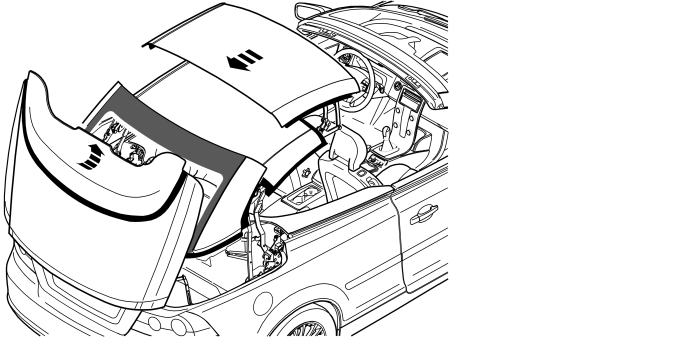

Opening the roof
The divider must be completely folded out for the roof to be opened.
| Hydraulic cylinder | The pump's direction of rotation | Valve | |
| 1 | Trunk lid, front and rear roof lock cylinders open. | clockwise | F2, F3, F4 |
| 2 | The tonneau cover moves forward. | clockwise | F3, F4 |
| 3 | - | The pump changes direction of rotation | F3, F4 |
| 4 | The roof cylinders open. | counterclockwise | F3, F4 |
| 5 | The roof and main cylinders move. | counterclockwise | F3 |
| 6 | The main cylinders open completely. | counterclockwise | F1, F3 |
| 7 | Trunk lid, front and rear roof lock cylinders close. | counterclockwise | F1 |

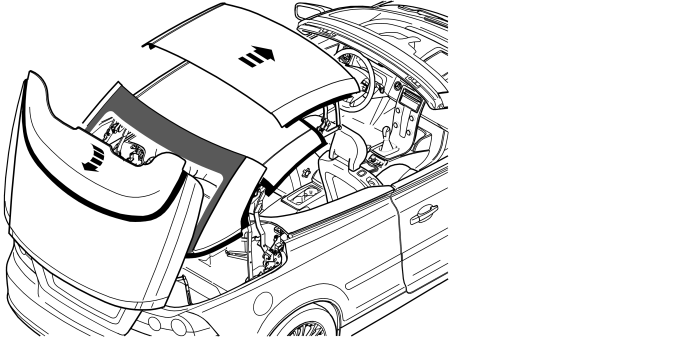

Closing the roof
| Hydraulic cylinder | The pump's direction of rotation | Valve | |
| 1 | Trunk lid, front and rear roof lock cylinders open. | counterclockwise | F3, F4 |
| 2 | - | The pump changes direction of rotation | F3, F4 |
| 3 | The hydraulic cylinders close. | clockwise | F3, F4 |
| 4 | The roof and main cylinders close. | clockwise | F3 |
| 5 | The roof cylinders close completely. | clockwise | F1, F3 |
| 6 | The tonneau cover moves back. | clockwise | F1, F2, F3 |
| 7 | Trunk lid, front and rear roof lock cylinders close. | clockwise | F1, F2 |

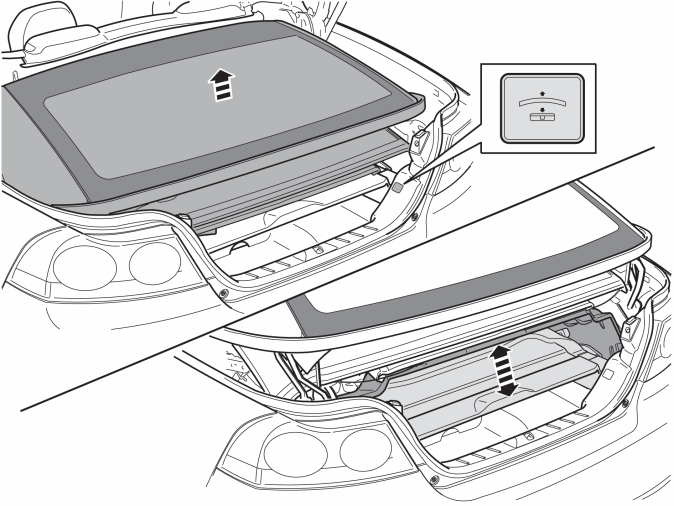

Load assistance
| Hydraulic cylinder | The pump's direction of rotation | Valve | |
| 1 | The front and rear roof lock cylinders open. | counterclockwise | F3 |
| 2 | The main cylinders raise the roof. | clockwise | F3, F4 |
Before the roof is raised, the front roof cylinder locks the front roof section's lock to the body. At the same time the catches for the rear roof section lock, which occurs out of sight (the roof is in the cargo compartment). As the hydraulic sequence is the same as when the roof closes, the trunk lid's hydraulic cylinders are also activated. Sometimes the catches for the trunk lid's upper section are not unlocked (the lock catch motor has not been activated). This means that the hydraulic cylinder's pistons work and try and open the trunk lid. The results in the lower section of the trunk lid moving compared with the upper section. This is a design feature and not a fault.
| Hydraulic cylinder | The pump's direction of rotation | Valve | |
| 1 | The main cylinders lower the roof. | counterclockwise | F1, F3 |
| 2 | The front and rear roof lock cylinders open. | clockwise | F1 |
