System Overview: Signals

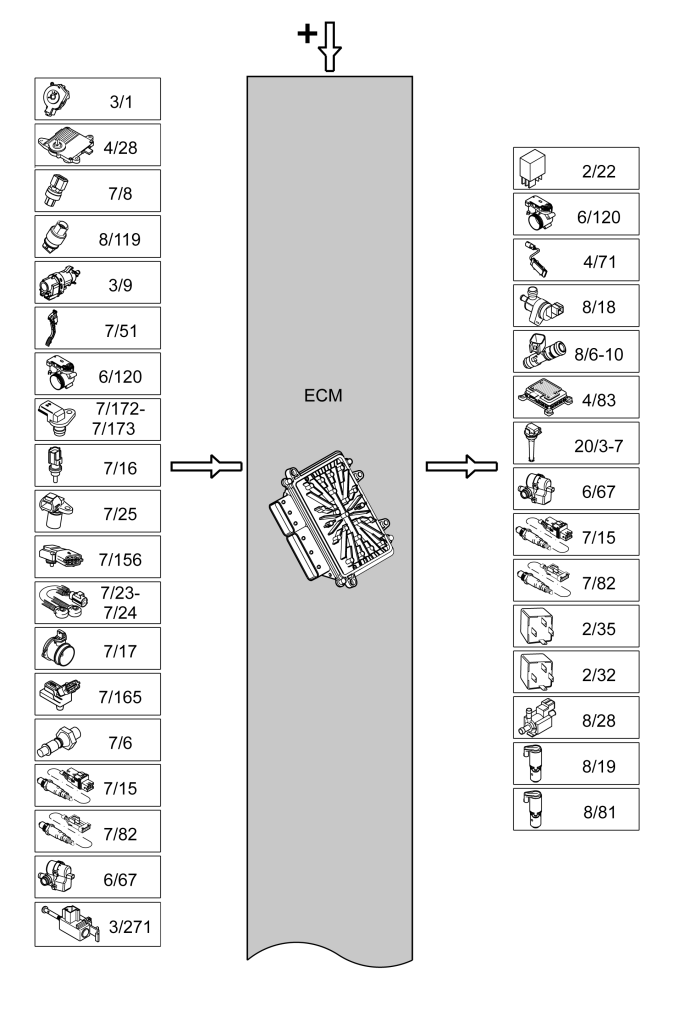

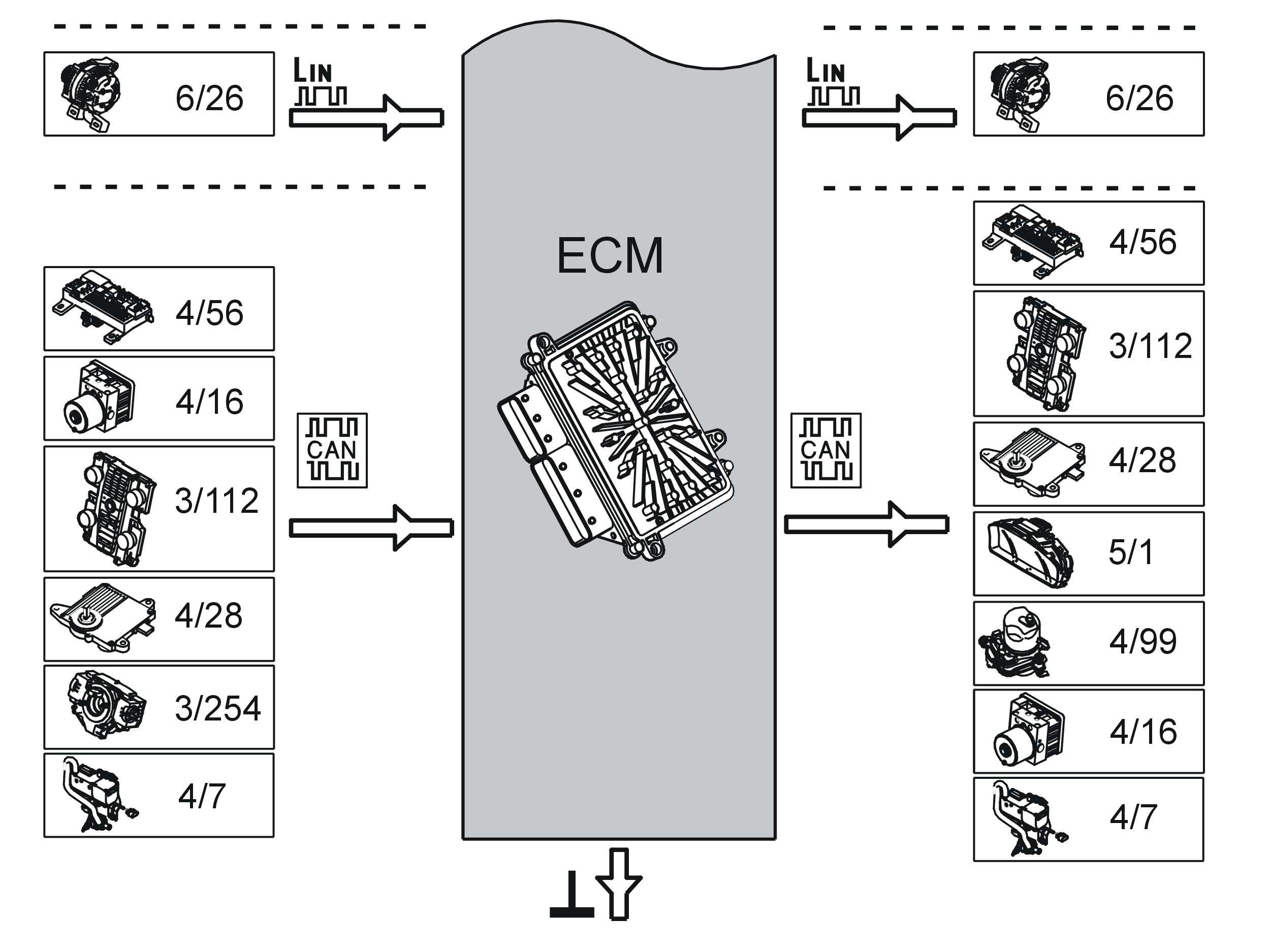

The table below summarizes the input signals to and output signals from the Engine Control Module (ECM). The signal types are divided into directly connected signals, serial communication and controller area network (CAN) communication. The illustrations below (see Fig 1 and Fig 2) display the same information with the Volvo component designations.
| Input signals | Output signals |
| Directly connected: | Directly connected: |
|
|
| Via LIN communication: | Via LIN communication: |
Alternator control module (ACM) (6/26) (2005-)
|
Alternator control module (ACM) (6/26) (2005-)
|
| Via Controller Area Network (CAN) communication: | Via Controller Area Network (CAN) communication: |
Central electronic module (CEM) (4/56):
Brake control module (BCM) (4/16):
Climate control module (CCM) (3/112):
Transmission control module (TCM) (4/28):
Steering wheel module (SWM) (3/254):
Combustion preheater module (CPM) (4/7):
|
Central electronic module (CEM) (4/56):
Climate control module (CCM) (3/112):
Transmission control module (TCM) (4/28):
Driver information module (DIM) (5/1):
Electrical power steering module (EPS) (4/99):
Brake control module (BCM) (4/16):
Combustion preheater module (CPM) (4/7):
|
